Name: SL Series Iron-Core Linear Motor with Precise Control High Thrust Output and Low Power Consumption
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: SL100
Price: 600.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Quality(kg/m): 2.1

Length(mm): 96/144/288

Peak Thrust @10 °C/s Temperature Rise: 305/610/915/1120

M5 Bolt Hole: 4/6/12

Highlight:

Precise Control Iron-Core Linear Motor

High Thrust Output SL Series Linear Motor

Low Power Consumption Linear Drive Motor

Basic Infomation

Place of Origin: CHINA

Brand Name: SXEGL

Certification: EPA/FCC/ROSH/ISO/CE

Model Number: SL100

Payment & Shipping Terms

Packaging Details: Cardboard boxes and foam

Delivery Time: 5-40

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Global shipping

Gallery

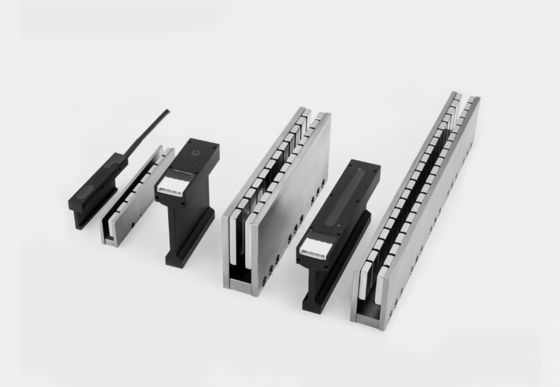

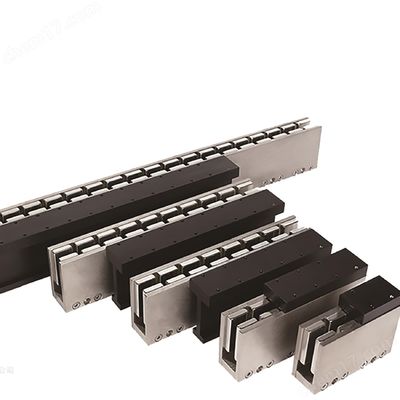

SL Series Iron-Core Linear Motor with Precise Control High Thrust Output and Low Power Consumption

Product Description

Precise Control High Thrust Output SL Series Iron-Core Linear Motor Low Power Consumption Longevity

Centered on optimized magnetic circuit design, the SL Series Iron-Core Linear Motor focuses on the efficient drive needs of heavy-load and precision scenarios, boasting comprehensive and practical functional performance.

Its core functions revolve around power output, precise control, adaptability, and reliability: Leveraging the iron-core structure, it delivers powerful thrust output, enabling stable loading of heavy workpieces to meet the demands of continuous high-intensity operations. Adopting an optimized low cogging torque design paired with a high-precision feedback mechanism, it operates smoothly without jitter, ensuring the consistency and accuracy of precision tasks.

Featuring a compact and exquisite body design, it requires no complex installation process, easily adapting to equipment layouts with limited space. Equipped with reliable dust and water resistance, it can seamlessly handle complex industrial environments such as dusty or humid conditions, suiting diverse operating requirements.

The direct drive technology eliminates intermediate transmission links, reducing mechanical wear while lowering maintenance needs and extending equipment service life. Widely applicable to operating scenarios across multiple industries, it can seamlessly replace traditional transmission modules, providing stable and efficient linear drive support for various precision operations, high-speed handling, automated production, and more.

Parameter			Note	Sign	Unit	SL10015				SL10018		SL10024
performance	Winding type					N	S	Z		N	S	N	S
	Motor type,maximum voltage phase-phase									Three-phase permanent magnet synchronous motor,400Vac rms(565Vdc)
	Peak thrust @10°C/s temperature rise		magnet@25℃	Fp	N	1525				1830		2440
	Continuous thrust(water cooling)		coil@100℃	Fc	N	675				810		1080
	Maximum speed		Continuous thrust @600V	Vmax	m/s	2.8	6.5	4.3		3.2	6.5	3.2	6.5
	Motor thrust constant		mount. sfc.@20℃	K	N/Arms	150	61	90		122	61	122	61
	Motor constant		coils@25℃	S	N²/W	1360				1632		2176
Electricity	Peak current		magnet@25℃	Ip	Arms	13.9	33.9	22.3		20.3	40.7	27.1	54.2
	Continuous current		coils@100℃	Ic	Arms	4.5	11	7.2		6.6	13.2	8.8	17.6
	back electro-motive force interphase peak			Bemf	V/m/s	130	54	78		108	54	108	54
	Interphase resistance		coils@25℃	R	Ω	11	1.84	4.4		6.2	1.54	4.6	1.16
	Phase inductance		I<0.6lp	Lph	mH	42.9	7.2	17.2		24.2	6	17.9	4.5
	Electrical time constant		coils@25℃	Te	ms	7.8
	Maximum continuous power loss		all coils	Pc	W	430				516		688
Thermal performance	Thermal resistance		coils to mountsfc	Rth	℃/W	0.17				0.15		0.11
	Thermistor/temperature sensor
Machinery	Mover weight		ex.cables	W	kg	4.9				5.8		7.8
	Mover length		ex.cables	L	mm	276				324		468
	Magnetic attraction of motor		rms@0A	Fa	N	3250				3900		5200
	Pole-pitch N-N			T	mm	24

Wire cable
Equipped with 0.5 meter length cable
Magnetic plate size
Length(mm)		96			144				288
M5 bolt hole		4			6				12
Quality(kg/m)		2.1
The magnetic plate can be spliced and combined

Parameter				Note	Sign	Unit		SL10003		SL10006		SL10009				SL10012

performance		Winding type						N	Z	N	S	N		S	Z	N	S	Z
		Motor type, maximum voltage phase- phase						Three-phase permanent magnet synchronous motor, 400Vac rms(565Vdc)

		Peak thrust @10°C/s temperature rise		magnet@25℃	Fu	N		305		610		915				1220
		Continuous thrust		coil@100℃	Fc	N		135		270		405				540
		Maximum speed		Continuous thrust@600V	Vmax	m		6.5	13	3.2	6.5	2.2		6.5	4.3	3.2	6.5	4.3
		Motor thrust constant		mount. sfc.@20℃	K	N/ Arms		61	30	122	61	183		61	90	122	61	90
		Motor constant		coils@25℃	S	N²/W		272		544		816				1088
Electricity		Peak current		magnet@25℃	lu	Arms		6.8	13.9	6.8	13.6	6.8		20.3	13.9	13.6	27.1	17.9
		Continuous current		coils@100℃	Ic	Arms		2.2	4.5	2.2	4.4	2.2		6.6	4.5	4.4	8.8	5.8
		back electro- motive force interphase peak			Bemf	V/m/s		54	26	108	54	162		54	78	108	54	78
		Interphase resistance		coils@25℃	R	Ω		9.2	2.2	18.4	4.6	27.6		3.06	6.6	9.2	2.3	5.5
		Phase inductance		I<0.6lp	Lph	mH		35.9	8.6	71.8	17.9	107.6		11.9	25.8	35.9	9	21.5
		Electrical time constant		coils@25℃	Te	ms		7.8
		Maximum continuous power loss		all coils	Pc	W		86		172		258				344
Thermal performance		Thermal resistance		coils to mount.sfc	Rth	℃/W		0.88		0.44		0.29				0.22
		Thermistor/temperature sensor						PTC 1K/KTY 83-122
Machinery		Mover weight		ex.cables	W	kg		1.3		2.2		3.1				4
		Mover length		ex.cables	L	mm		85		132		180				228
		Magnetic attraction of motor		rms@0A	Fa	N		6500		1300		1950				2600
		Pole-pitch N-N			T	mm		24

	Wire cable

Equipped with 0.5 meter length cable
Magnetic plate size
Length(mm)			96				144						288
M5 bolt hole			4				6						12
Quality(kg/m)			2.1
The magnetic plate can be spliced and combined
