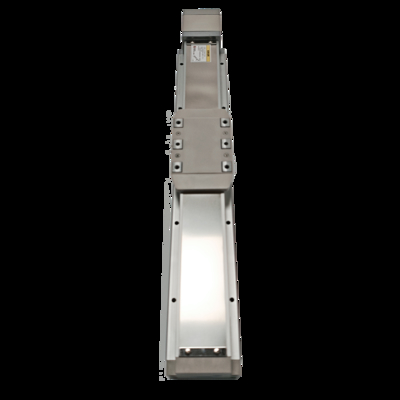

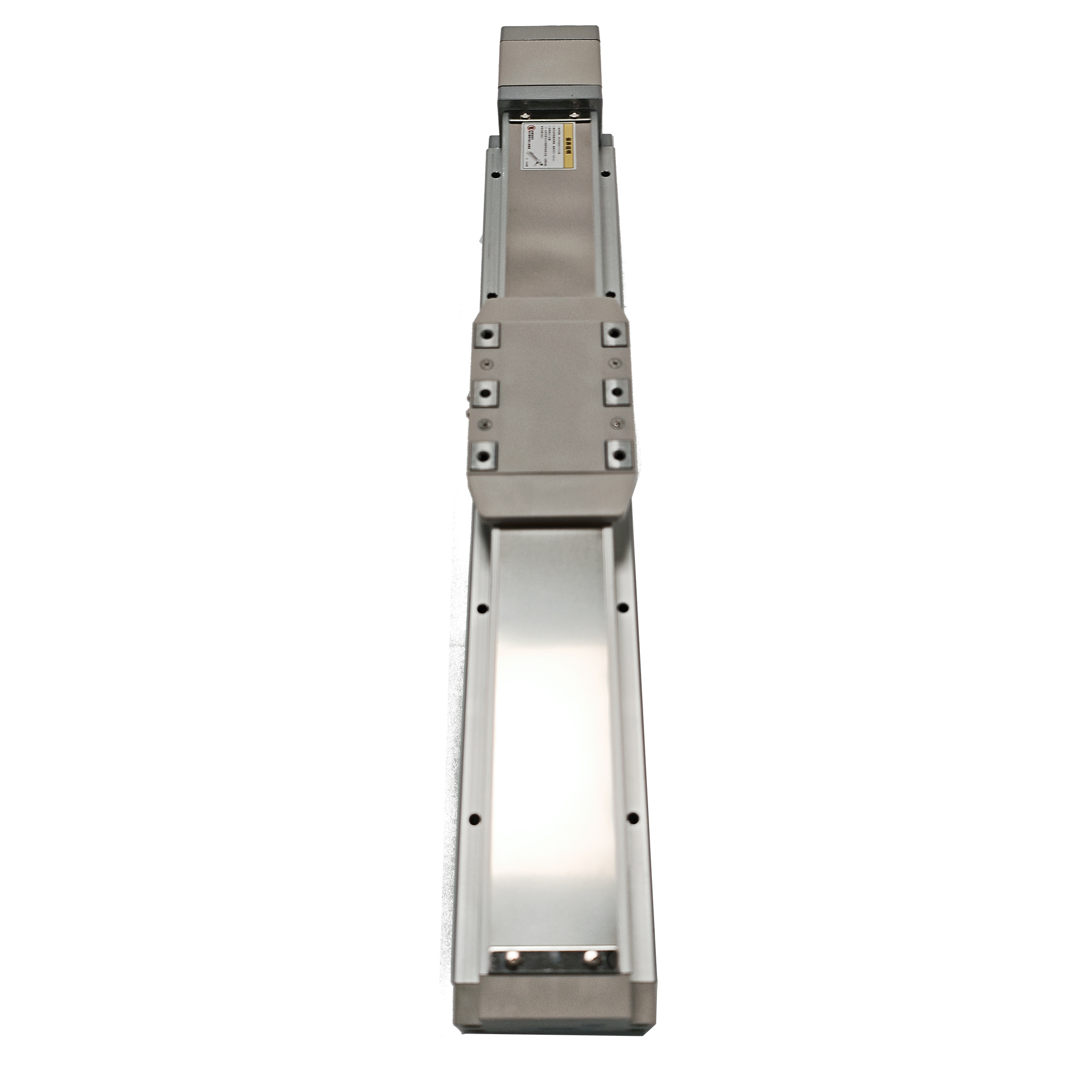

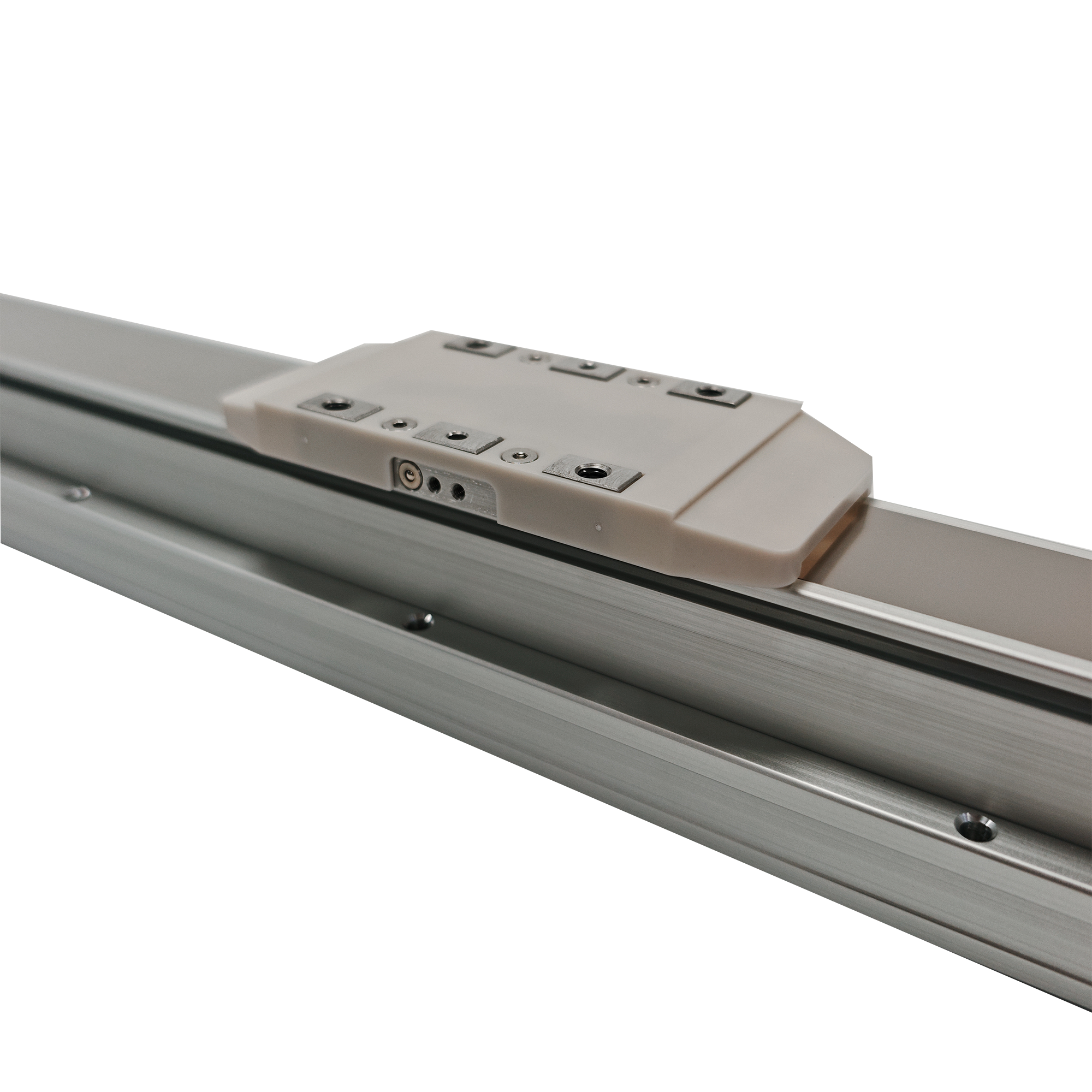

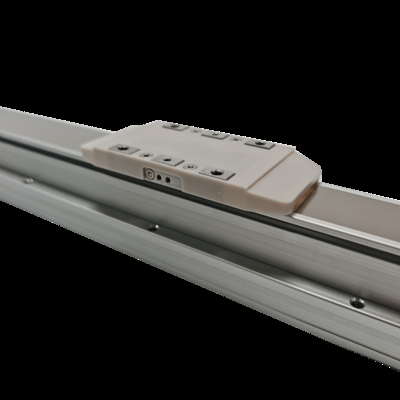

Dust Proof   Eco Friendly GTH Series Linear Guideway GTH12 with High Load Capacity

1. Product Introduction

2. Core Advantages

3. Key Selling Points

• Superior Compatibility: Works with mainstream PLCs (e.g., the Siemens S7 and Mitsubishi FX series) and supports EtherCAT/Modbus industrial bus protocols, enabling seamless integration with the central control systems of automated production lines. The slider comes pre-drilled with standard mounting holes, allowing direct installation of end effectors (such as suction cups and grippers) without the need for custom adapters.
• Broad Environmental Adaptability: Operates stably in environments with temperatures from -10℃ to 60℃ and humidity of 5%–95% (no condensation). It features anti-solidification lubrication for low-temperature use and an optimized heat dissipation structure for high-temperature conditions, making it ideal for special scenarios like high-temperature pole piece processing in new energy batteries and cold-chain biological sample transfer.
• Exceptional Durability: The ball screw undergoes high-temperature nitriding treatment, enhancing wear resistance by 50%. The guide rail slider is fitted with reinforced steel balls, capable of withstanding a 120kg horizontal load during long-term operation with no noticeable wear. Under normal operating conditions, its service life exceeds 10,000 hours.
• Notable Energy Efficiency: Its optimized transmission structure lowers enterprises’ electricity costs in the long run and meets the environmental noise standards for industrial workshops.
• Flexible Customization: The stroke is customizable on demand (available at any interval within the 50–1350mm range). Optional accessories include extended dust covers, anti-corrosion coatings, and low-temperature lubricants.

4. Application Fields

• New Energy Sector: Leveraging its 120kg horizontal load capacity and 2000mm/s high-speed transmission performance, it is perfectly matched to high-speed battery pole piece laminators (supporting the processing of tens of thousands of pieces daily). It also meets heavy-load transfer needs in cell assembly (e.g., cell transfer and module capping), and its strong rigidity prevents load deformation to ensure the continuous operation of power battery production lines.
• Electronic Manufacturing Sector: For SMT placement processes, it enables micron-level positioning of PCB boards. Paired with its stable high-speed motion, it ensures the placement errors of components (e.g., chip resistors and IC chips) comply with strict industry standards.
