High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm

1
MOQ
$4-$999
Price

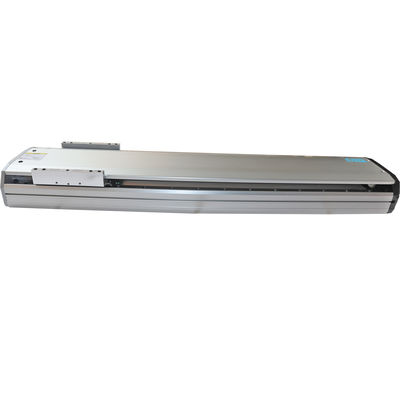

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm
Features Gallery Product Description Request A Quote
Features
Specifications
Name: CNC Linear Slide
Material: Bearing Steel
Length: 100-1680mm
Service: OEM Services
Structure: CNC Components
Core Components:: Bearing, Motor
Application:: Automatic Equipment High Speed Transfer Device
Highlight:

High Load CNC Linear Slide

,

CNC Linear Slide High Precision

,

Ball Screw Linear Module 100mm
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: PTH10
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
Product Description
CNC Specific Linear Slide  High Precision High Load Capacity
SEXGL  Linear Slide deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.In CNC machining, precision, efficiency, and stability are key. Our linear slides, tailored for CNC, enable precise positioning and efficient motion—core to reliable linear solutions for all CNC equipment, enhancing quality and productivity.​
Key Features​

1.High-Precision PositioningUses advanced ball screws/linear guides with precision manufacturing, achieving ±0.01mm positioning and ±0.005mm repeatability for micron-level accuracy.​

2.Wide Load CapacityModels support 50–500kg, handling cutting/impact loads in small-part machining to heavy-duty workpiece processing, ensuring stable equipment support.​

3.High-Rigidity StructureBuilt from high-strength aluminum/steel with reinforced designs (ribs/symmetry), resisting deformation under high-speed/heavy loads to maintain motion stability and extend equipment life.​

4.High-Speed PerformancePaired with servo/stepper motors, reaches 1000mm/s max speed, reducing idle time for faster batch processing and higher CNC productivity.​

5.Low Noise & LongevityPrecision components + smart lubrication keep noise <60dB. Premium materials/surface treatments (hard chrome/anodizing) minimize wear, lowering maintenance costs over 20k+ hours.

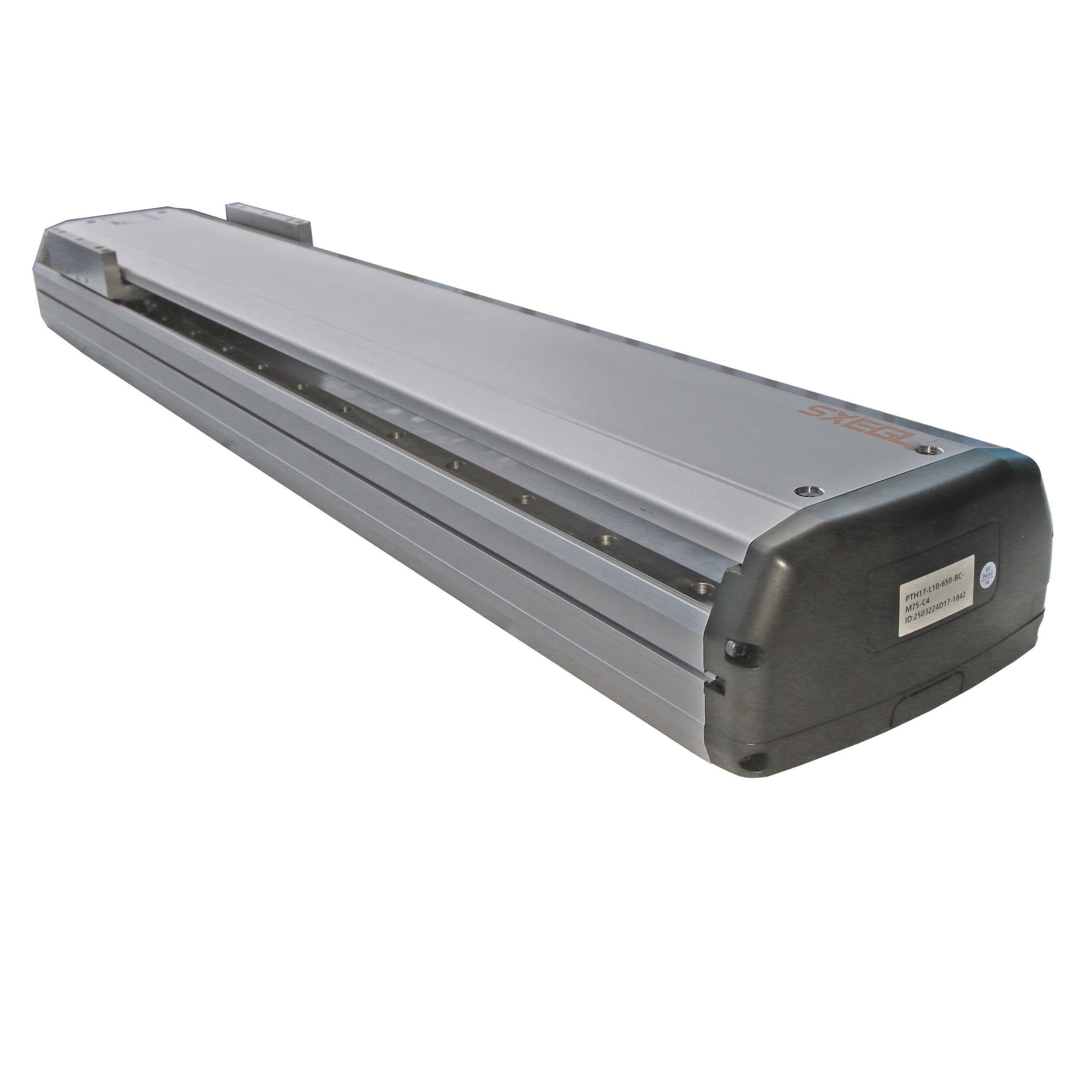

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 0

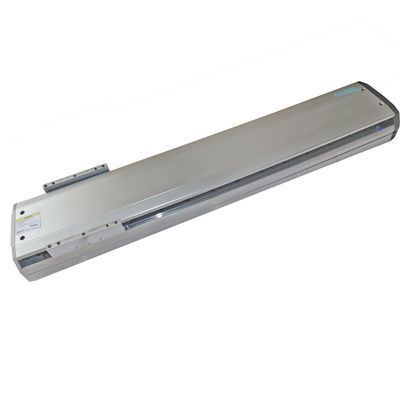

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 1

※ Basic specifications




Specification Standard motor power (W) 200W
Repeatable positioning accuracy(mm) ±0.01
Screw specification 1605  1610  1616  1620
Max speed (mm/s) 250  500  800  1000
Rated thrust (N) 683  341  213  174
Max load (kg) Horizontal 50  30  22  18
Vertical 12  8  5  3
Max stroke (mm) 1050
Component Screw specification 1605/1610/1616/1620(Slenderness ratio1:62.5)
Screw grade C7 rolling
High rigidity linear slider W20×H18
Coupling 34-27-10-14
Photoelectric switch PM-T45(NPN)

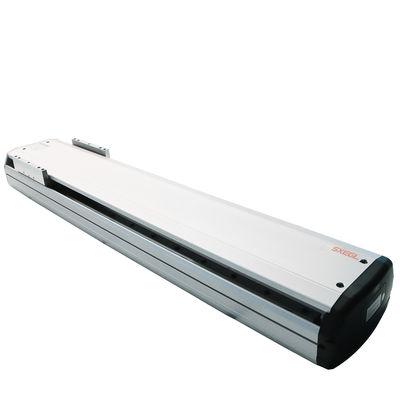

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 2

(Unit:mm)                                                          (Unit:mm)



(Unit  :mm)                                            (Unit:N.m)

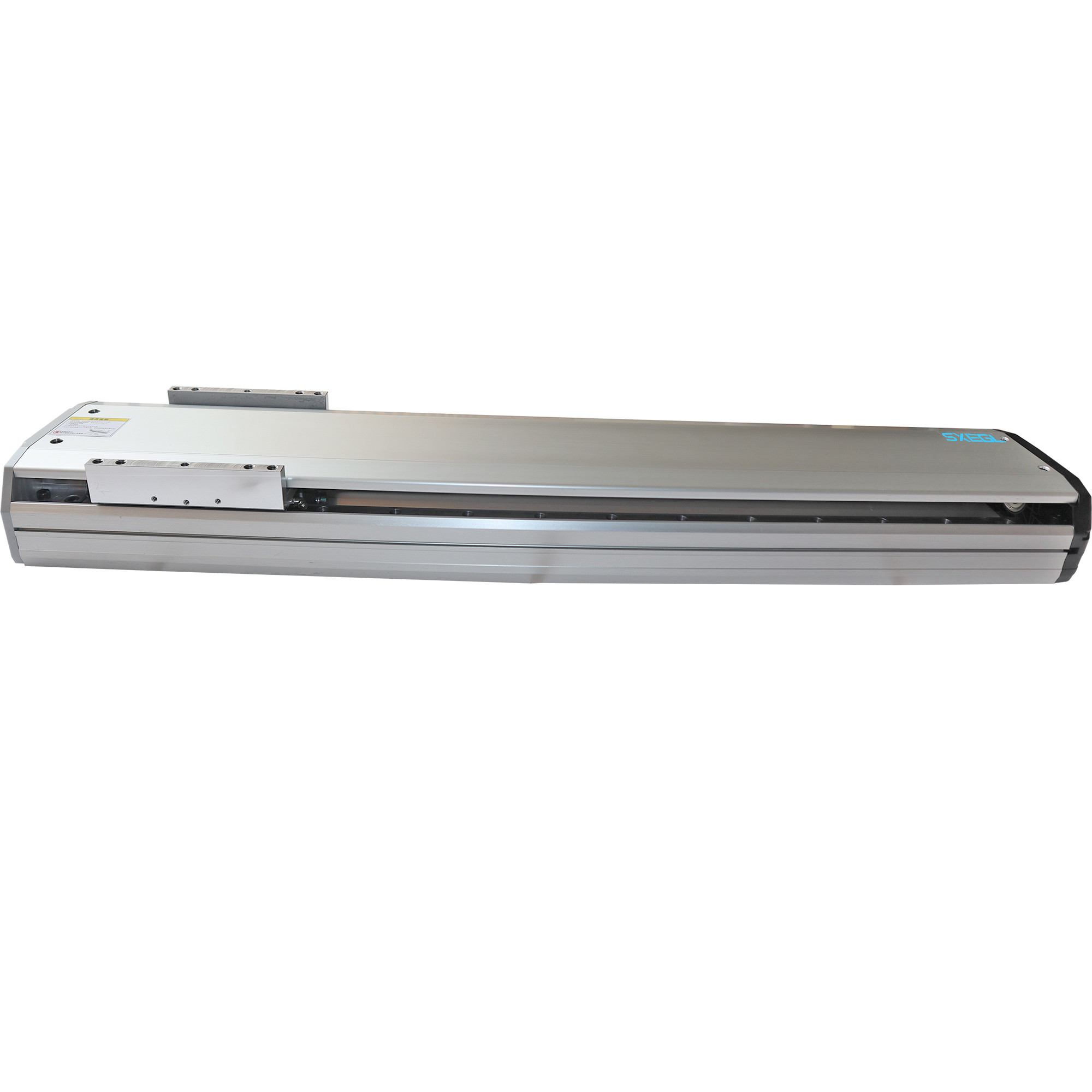

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 3

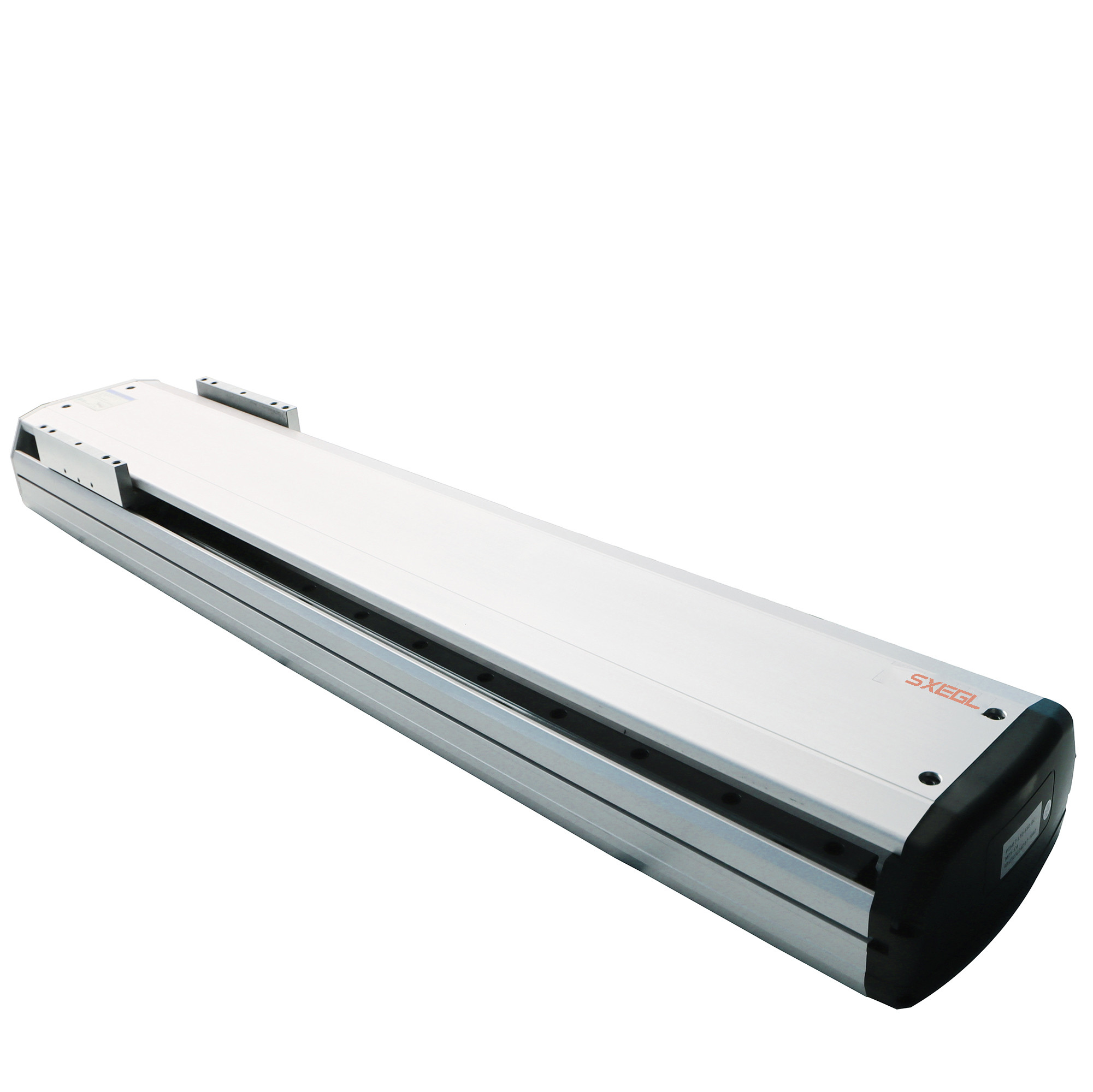

 High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 4


High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 5High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 6
Horizontal
installation		 A B C Side
installation		 A B C Vertical
installation		 A C MY 110
MP 110
Lead 05 30kg 547  42  42  Lead 05 25kg 52  53  670  Lead 05 5kg 310  310  MR 120
40kg 391  29  29  35kg 35  45  455  8kg 192  192

50kg 298  22  22  50kg 21  22  298  12kg 129  129

Lead 10 15kg 521  84  80  Lead 10 10kg 124  131  770  Lead 10 4kg 335  335

25kg 298  47  44  20kg 58  61  382  6kg 220  220

30kg 242  34  35  30kg 35  37  242  8kg 172  172

Lead 16 5kg 937  282  259  Lead 16 5kg 116  58  605  Lead 16 1kg 620  620

10kg 487  121  116  10kg 24  26  253  2kg 680  680

22kg 236  40  44  22kg 0  0  0  5kg 310  310

Lead 20 5kg 675  224  193  Lead 20 6kg 160  185  562  Lead 20 1kg 580  580

10kg 330  107  93  12kg 76  88  272  2kg 645  645

18kg 175  55  48  18kg 48  55  175  3kg 310  310


Motor exposure-01

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 7













Unit:mm
Stroke 100  150  200  250  300  350  400  450  500  550  600  650  700  750  800  850  900  950  1000  1050
L 350  400  450  500  550  600  650  700  750  800  850  900  950  1000  1050  1100  1150  1200  1250  1300
A 200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150
M 0  1  1  1  1  2  2  2  2  3  3  3  3  4  4  4  4  5  5  5
N 4  6  6  6  6  8  8  8  8  10  10  10  10  12  12  12  12  14  14  14
KG 5.5  5.8  6.2  6.6  7  7.4  7.8  8.2  8.5  8.9  9.3  9.7  10.1  10.5  10.9  11.2  11.6  12  12.4  12.8

Motor exposure-02

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 8

Unit:mm
Stroke 100  150  200  250  300  350  400  450  500  550  600  650  700  750  800  850  900  950  1000  1050
L 400  450  500  550  600  650  700  750  800  850  900  950  1000  1050  1100  1150  1200  1250  1300  1350
A 50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200
M 1  1  1  1  2  2  2  2  3  3  3  3  4  4  4  4  5  5  5  5
N 6  6  6  6  8  8  8  8  10  10  10  10  12  12  12  12  14  14  14  14
KG 5.8  6.2  6.6  7  7.4  7.8  8.2  8.5  8.9  9.3  9.7  10.1  10.5  10.9  11.2  11.6  12  12.4  12.8  13.2

Motor folds right-01

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 9

Note:The left fold of the motor is symmetrical with this figure                                                                                   Unit:mm
Stroke 100  150  200  250  300  350  400  450  500  550  600  650  700  750  800  850  900  950  1000  1050
L 329.5  379.5  429.5  479.5  529.5  579.5  629.5  679.5  729.5  779.5  829.5  879.5  929.5  979.5  1029.5  1079.5  1129.5  1179.5  1229.5  1279.5
A 200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150
M 0  1  1  1  1  2  2  2  2  3  3  3  3  4  4  4  4  5  5  5
N 4  6  6  6  6  8  8  8  8  10  10  10  10  12  12  12  12  14  14  14
KG 5.5  5.8  6.2  6.6  7  7.4  7.8  8.2  8.5  8.9  9.3  9.7  10.1  10.5  10.9  11.2  11.6  12  12.4  12.8

Motor folds right-02

High Load CNC Linear Slide High Precision Ball Screw Linear Module 100mm - 1680mm 10

Note:The left fold of the motor is symmetrical with this figure                                                                                       Unit:mm
Stroke 100  150  200  250  300  350  400  450  500  550  600  650  700  750  800  850  900  950  1000  1050
L 379.5  429.5  479.5  529.5  579.5  629.5  679.5  729.5  779.5  829.5  879.5  929.5  979.5  1029.5  1079.5  1129.5  1179.5  1229.5  1279.5  1329.5
A 50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200  50  100  150  200
M 1  1  1  1  2  2  2  2  3  3  3  3  4  4  4  4  5  5  5  5
N 6  6  6  6  8  8  8  8  10  10  10  10  12  12  12  12  14  14  14  14
KG 5.8  6.2  6.6  7  7.4  7.8  8.2  8.5  8.9  9.3  9.7  10.1  10.5  10.9  11.2  11.6  12  12.4  12.8  13.2
