Home /Products/Single Axis Robot/Flexible Integration Electric Linear Stage with IP54 Protection and IP65 Protection for Industrial Automation

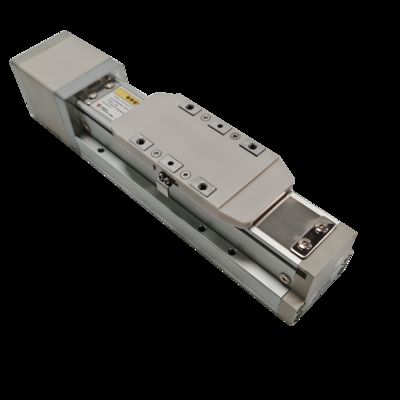

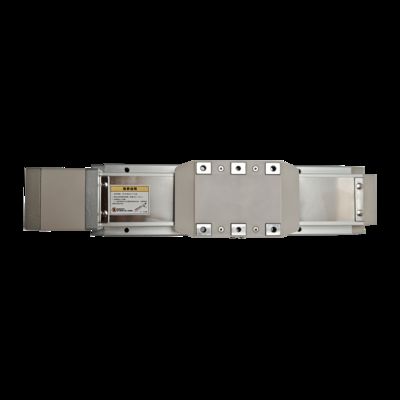

Flexible Integration Electric Linear Stage with IP54 Protection and IP65 Protection for Industrial Automation

1
MOQ
200-1000
Price
Flexible Integration Electric Linear Stage with IP54 Protection and IP65 Protection for Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Pushing Speed(mm/s): 10
Acceleration And Deceleration(mm/s²): 3000
Clearance(mm): Below 0.2
Repeatable Positioning Accuracy(mm): ±0.05
Impact  Resistance/Vibration(m/s²): 50/20
Motor Type: Stepper Motor (with Encoder DC24V)
Highlight:

IP54 Protection Electric Linear Stage

,

IP65 Protection Electric Linear Stage

,

Flexible Integration Electric Linear Stage
Basic Infomation
Place of Origin: CHINA
Brand Name: SXEGL
Certification: CE/EPA/FCC/ROSH/ISO
Model Number: EPS6
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-45
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Flexible Integration Electric Linear Stages Low-Noise Operation
The EPS/EPY series electric linear stages are high-precision core actuators for industrial automation systems, adopting European Standard (EN Standard) modular compliant design. The EPS series focuses on efficient operation in light-load scenarios, while the EPY series emphasizes stable transmission under heavy-load conditions. Both are equipped with fully sealed protective enclosures, which effectively isolate dust and oil contaminants in the production environment—this ensures transmission accuracy while enhancing adaptability to harsh working conditions, fully meeting the linear motion control needs of automated production lines across multiple industries.
Core Features
  • Precise Positioning with Dual-Series Differentiated Adaptation: The EPS series achieves a repetitive positioning accuracy of ±0.03mm, specifically designed for precision assembly and micro-component transfer in the 3C electronics industry. The EPY series offers a repetitive positioning accuracy of ±0.05mm, suitable for heavy-load transfer of automotive parts and heavy tooling positioning. Both series support real-time dynamic error compensation algorithms under closed-loop servo control, significantly reducing positioning deviations and ensuring operational consistency.
  • Efficient Transmission with Low-Noise Operation: Optional dual-transmission solutions (high-precision ball screws and timing belts) are available. Both the EPS and EPY series reach a maximum operating speed of 120mm/s, meeting the requirements of high-frequency continuous operations. The transmission system features noise-optimized design, with operating noise ≤ 65 dB, complying with low-noise production standards for electronics, medical, and other industries.
  • Flexible Integration & Multi-Scenario Compatibility: Supports multi-orientation deployment, including horizontal mounting, vertical hoisting, and inverted installation. Without additional adaptation structures, it is compatible with mainstream servo drive systems and motors (e.g., Siemens, Panasonic). Customizable solutions such as dual-slider linkage and multi-axis combinations are available, adapting to non-standard automation scenarios like AGV material docking, laser cutting precision positioning, and heavy-equipment assembly assistance.
  • Long Durability & Low Maintenance Costs: The enclosure has an IP54 protection rating (the EPY series offers an optional IP65 upgrade for enhanced dust and water resistance). Key transmission components are made of precision-machined hardened alloy steel, delivering excellent wear resistance—the EPS series has a failure-free operating life of ≥ 12,000 hours, while the EPY series reaches ≥ 10,000 hours. The lubrication system extends the maintenance-free period to 800 hours, significantly reducing downtime for maintenance and lowering long-term operational costs.
Application Fields
It is widely used in scenarios such as laser marking and positioning of PCB boards in the 3C electronics industry, assembly and transfer of chassis components in automotive manufacturing, precision reagent delivery and sample sorting in the medical device industry, and precision material displacement in logistics automated sorting systems. It serves as a core solution for automated linear motion that balances precision, efficiency, and reliability.

 Model EPS6
Actuator
specifications		 Lead(mm) 255075
Lead(mm)
4                          12
Pressure contact thrust(N) 14-20
Portable weight(KG) horizontal 1
vertical 0.5
Speed(mm/s) horizontal 10-150
vertical 10-150
Pushing speed(mm/s) 10
Acceleration and deceleration(mm/s²) 3000
Clearance(mm) Below 0.2
Repeatable positioning accuracy(mm) ±0.05
Impact  resistance/Vibration(m/s²) 50/20
Driving method Sliding screw
Guide   rail   method Linear guide rail
Product weight(KG) 290,350.41
Operating temperature range(℃) 5-40
Operating humidity range(%RH) Below 90
Electrical
specifications		 Motor size 20
Motor type Stepper motor (with encoder DC24V)
Encoder(angle sensor) Relative increment A/B phase(800 pulses/cycle)
Rated voltage(V) DC24
Power consumption(W) 12
Operating standby power(W) 11
Instantaneous maximum power(W) 22
Tag:

Linear Motion Module

Ball Screw Linear Actuator

Ball Screw Linear Module
