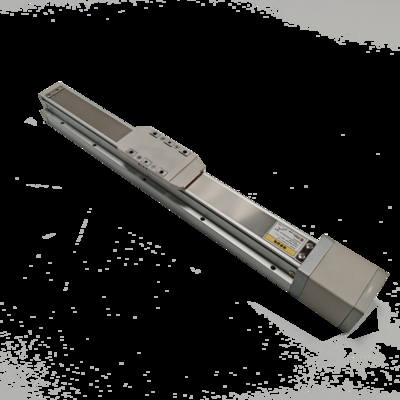

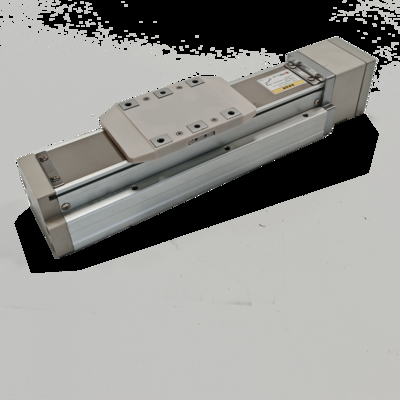

Efficient Logistics Sorting EGT 160 Synchronous Belt Linear Stage Strong Load Capacity

1
MOQ
200-700
Price
Efficient Logistics Sorting EGT 160 Synchronous Belt Linear Stage Strong Load Capacity
Features Gallery Product Description Chat Now
Features
Specifications
Standard     motor     output(W): 750W
Rated      torque(N ·m): 2.4
Repeatable     Positioning     Accuracy(mm): ±0.08
Max       Stroke(mm): 100-6000mm/interval 50mm
Timing Belt Specification: 45×5(lead 125mm)
Increase  Weight(per   100mm   Stroke   Kg): 1.2
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: EGT160
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Efficient Logistics Sorting EGT 160 Synchronous Belt Linear Stage Strong Load Capacity
The EGT Series Synchronous Belt Linear Stage is a high-performance linear motion equipment in the industrial production field. Guided by the core design concept of "dual guide rail guidance, high load bearing, and multi-orientation assembly," it can accurately adapt to complex mechanical structures such as linear gantries and cantilever-type electric cylinders, providing stable and reliable linear motion support for industrial scenarios including automotive component transfer, electronic component bonding, and logistics sorting. Its core advantage lies in the effective balance of an ultra-long stroke of 5000mm and a repetitive positioning accuracy of ±0.08mm, while supporting flexible switchable installation of motors on four sides—significantly enhancing the versatility and scenario adaptability of basic axis-type linear stages.

I. Core Application Scenarios

Linear Gantry Systems

In the component handling gantries of automotive final assembly workshops, the EGT Linear Stage serves as the driving support for the X-axis (stroke of 3000mm) and Y-axis (stroke of 2000mm) respectively. With a load capacity of 100kg, it can easily meet the handling needs of heavy components such as gearboxes; the dual guide rail structure can effectively suppress deflection deformation under the gantry span, and the ±0.08mm accuracy can accurately match the alignment standards for bolt holes.

Cantilever-Type Electric Cylinders

In the cantilever-type pick-and-place mechanism of 3C electronic placement machines, the EGT Linear Stage acts as the power core of the X-axis (stroke of 1000mm). Its side-mounted motor design can save 50% of vertical space; relying on its excellent anti-overturning torque performance, it can ensure no offset of the nozzle head under unilateral load, realizing the high-precision placement needs of 0402 components.

Logistics Sorting Lines

In the automatic sorting systems of e-commerce warehouses, the EGT Linear Stage (stroke of 5000mm) plays the core role of the main conveying axis. With a high-speed operation status of 2.5m/s combined with a positioning accuracy of ±0.08mm, it drives sorting carts to efficiently complete parcel positioning and delivery, increasing efficiency by 35% compared with traditional chain conveyor solutions.

II. Core Selling Points

  1. High Motor Installation Flexibility: Supports installation on four sides of the electric cylinder, with installation orientations adjustable and switchable at any time to adapt to the layout planning needs of different equipment;
  2. Excellent Space Utilization Efficiency: Proximity switches can be directly embedded into the profile groove for installation, eliminating the need for additional reserved installation space and further reducing the overall volume of the equipment;
  3. Precise Guidance and Strong Load Capacity: The dual guide rail structure can effectively ensure guidance accuracy, while having excellent high-load bearing performance, balancing operational precision and stability.
EGT160



Standard motor output(W) 750
Rated torque(N ·m) 2.4
Repeatable positioning accuracy(mm) ±0.05mm/±0.03mm/±0.01mm
Max    stroke(mm) 100-6000mm/interval 50mm
Timing belt specification 45×5(lead 125mm)
Reduction ratio 3:1 5:1 7:1 10:1
Max     speed(mm/s) 2080  1250  890  625
Max horizontal load(kg) 30  50  70  100
Max load(kg) 100
Basic weight(Omm stroke kg) 10.2
Increase weight (per 100mm stroke kg) 1.2
Magnetic reed switch CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m
Photoelectric switch PM-T45 NPN type wire length 1M
PM-T45-P PNP type wire length 1M
Briquettes Page 140 for details

​

Type

Standard

motor

output (W)

Rated

torque

(N ·m)

 Repeatable positioning accuracy(mm)

Max

stroke(mm)

Timing

belt

specification

Reduction

ratio

Max

speed

 (mm/s)

Max

horizontal

load(kg)

 Max load (kg)

Basic

weight

(0mm

stroke kg)

Increase

weight

(per 100mm

stroke kg)

 Magnetic reed switch Photoelectric switch Briquettes
EGT70 200  0.64  ±0.08

100-5000

mm/interval

50mm

 15×3(lead 78mm) No 3900  4  EGT70:12 EGT70:3.67 0.34  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1300  12
/ / /
400  1.27  No 3900  8  EGT70L:15 EGT70L:4.08 NPN type wire length 1M PNP type wire length 1M
3:1 1300  15
/ / /
EGT80 200  0.64  ±0.08

100-5000

mm/interval

 50mm

 20×3(lead       90mm) No 4500  4  EGT80:15 EGT80:4.36 0.52  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1500  11
5:1 900  15
400  1.27  No 4500  8  EGT70L:15 EGT80L:5.08 NPN   type  wire   length   1M PNP  type  wire   length   1M
3:1 1500  20
/ / /
EGT120 750W 2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080
30  12.7  1.5  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT125 400  1.27  ±0.08

100-6000

mm/interval

50mm

 30×5(lead 100mm) 3:1 1666  20  40  7.6  0.8  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1000  34
7:1 714  40  NPN type wire length 1M PNP type wire length 1M
/ / /
EGT160 750  2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080  30  100  10.2  1.2  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT220 1500  7.16  ±0.08

100-6000

mm/interval

50mm

 45×8(lead 208mm) 3:1 2300  55  200  25.8  2.1  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1380  90
7:1 990  130  NPN type wire length 1M PNP type wire length 1M
10:1 690  180

​

​
