Adjustable Mounting Orientation EGT125 Synchronous Belt Linear Stage Multi Scenario Versatile

1
MOQ
200-700
Price
Adjustable Mounting Orientation EGT125 Synchronous Belt Linear Stage Multi Scenario Versatile
Features Gallery Product Description Chat Now
Features
Specifications
Standard     motor     output(W): 400W
Rated      torque(N ·m): 1.27
Repeatable     Positioning     Accuracy(mm): ±0.08
Max       Stroke(mm): 100-6000mm/interval 50mm
Timing Belt Specification: 30×5(lead 100mm)
Increase  Weight(per   100mm   Stroke   Kg): 0.8
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: EGT125
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description

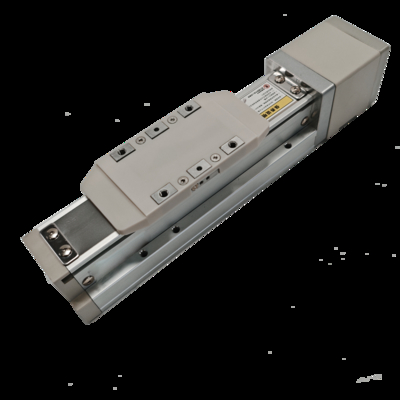

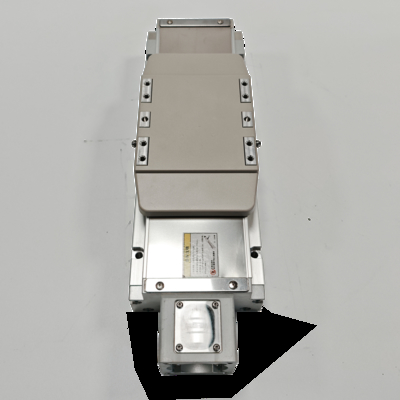

Adjustable Mounting Orientation EGT125 Synchronous Belt Linear Stage Multi Scenario Versatile
The EGT Series Synchronous Belt Linear Stage is a high-performance linear motion unit developed for industrial automation scenarios. Guided by the core design concept of "precision guidance with dual guide rails, stable support for high loads, and flexible assembly in multiple orientations," it seamlessly adapts to complex mechanical structures such as linear gantries and cantilever-type electric cylinders, building a stable and reliable linear motion support system for industrial scenarios including automotive component transfer, electronic component bonding, and logistics sorting. Its core advantage lies in the balanced integration of an ultra-long stroke of 5000mm and a repetitive positioning accuracy of ±0.08mm, while enabling flexible switchable motor installation on four sides—elevating the versatility and scenario adaptability of basic axis-type linear stages.

I. Core Application Scenarios

1. Linear Gantry Systems

In the component handling gantries of automotive final assembly workshops, the EGT Linear Stage serves as the driving unit for the X-axis (stroke of 3000mm) and Y-axis (stroke of 2000mm) respectively. With a load capacity of 100kg, it easily handles the transfer of heavy components such as gearboxes; the dual guide rail structure effectively suppresses deflection deformation under the gantry span, and the ±0.08mm accuracy accurately meets the alignment requirements for bolt holes.

2. Cantilever-Type Electric Cylinders

In the cantilever-type pick-and-place mechanism of 3C electronic placement machines, the EGT Linear Stage acts as the power core of the X-axis (stroke of 1000mm). Its side-mounted motor configuration reduces vertical space consumption by 50%; relying on its excellent anti-overturning torque performance, it ensures no offset of the nozzle head under unilateral load, satisfying the high-precision placement requirements for 0402 components.

3. Logistics Sorting Lines

In the automatic sorting systems of e-commerce warehouses, the EGT Linear Stage (stroke of 5000mm) functions as the core component of the main conveying axis. With high-speed operation of 2.5m/s combined with a positioning accuracy of ±0.08mm, it drives sorting carts to efficiently complete the precise positioning and delivery of parcels—boosting efficiency by 35% compared to traditional chain conveyor solutions.

II. Core Selling Points

  1. High Flexibility in Motor Installation: Supports installation on four sides of the electric cylinder, with installation orientations adjustable and switchable at any time, adapting to the layout planning needs of various equipment;
  2. Excellent Space Utilization: Proximity switches can be directly embedded into the profile groove for installation, eliminating the need for additional reserved installation space and further reducing the overall equipment volume;
  3. High Guidance Precision and Strong Load Capacity: The dual guide rail structure effectively ensures guidance precision, while providing excellent high-load bearing performance, achieving dual guarantees of precision and stability.
EGT125



Standard motor output (W) 400
Rated torque(N ·m) 1.27
Repeatable positioning accuracy(mm) ±0.05mm/±0.03mm/±0.01mm
Max stroke(mm) 100-6000mm/interval 50mm
Timing belt specification 30×5(lead 100mm)
Reduction ratio 3:1 5:1 7:1 /
Max speed(mm/s) 1666  1000  714  /
Max horizontal load (kg) 20  34  40  /
Max load(kg) 40
Basic weight(0mm stroke kg) 7.6
Increase weight(per 100mm stroke kg) 0.8
Magnetic reed switch CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m
Photoelectric switch PM-T45 NPN type wire length 1M
PM-T45-P PNP type wire length 1M
Briquettes Page 140 for details

​

Type

Standard

motor

output (W)

Rated

torque

(N ·m)

 Repeatable positioning accuracy(mm)

Max

stroke(mm)

Timing

belt

specification

Reduction

ratio

Max

speed

 (mm/s)

Max

horizontal

load(kg)

 Max load (kg)

Basic

weight

(0mm

stroke kg)

Increase

weight

(per 100mm

stroke kg)

 Magnetic reed switch Photoelectric switch Briquettes
EGT70 200  0.64  ±0.08

100-5000

mm/interval

50mm

 15×3(lead 78mm) No 3900  4  EGT70:12 EGT70:3.67 0.34  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1300  12
/ / /
400  1.27  No 3900  8  EGT70L:15 EGT70L:4.08 NPN type wire length 1M PNP type wire length 1M
3:1 1300  15
/ / /
EGT80 200  0.64  ±0.08

100-5000

mm/interval

 50mm

 20×3(lead       90mm) No 4500  4  EGT80:15 EGT80:4.36 0.52  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1500  11
5:1 900  15
400  1.27  No 4500  8  EGT70L:15 EGT80L:5.08 NPN   type  wire   length   1M PNP  type  wire   length   1M
3:1 1500  20
/ / /
EGT120 750W 2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080
30  12.7  1.5  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT125 400  1.27  ±0.08

100-6000

mm/interval

50mm

 30×5(lead 100mm) 3:1 1666  20  40  7.6  0.8  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1000  34
7:1 714  40  NPN type wire length 1M PNP type wire length 1M
/ / /
EGT160 750  2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080  30  100  10.2  1.2  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT220 1500  7.16  ±0.08

100-6000

mm/interval

50mm

 45×8(lead 208mm) 3:1 2300  55  200  25.8  2.1  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1380  90
7:1 990  130  NPN type wire length 1M PNP type wire length 1M
10:1 690  180

​

​
