CNC Customized Synchronous Gear - Industrial Selection

1
MOQ
1-100
Price
CNC Customized Synchronous Gear - Industrial Selection
Features Gallery Product Description Chat Now
Features
Specifications
Pitch: 3MM
Pich  Length: 120-3390
Number Of Teeth: 40-1130
Type: Customizable
Highlight:

CNC customized industrial gear

,

synchronous gear support unit

,

custom CNC gear with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: SXEGL
Certification: CE/FCC/EPA/RPSH/ISO
Model Number: Synchronous pulley
Payment & Shipping Terms
Packaging Details: Cardboard boxes and foam
Delivery Time: 5-40
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Global shipping
Product Description

CNC Customized Synchronous Gear - Industrial Selection

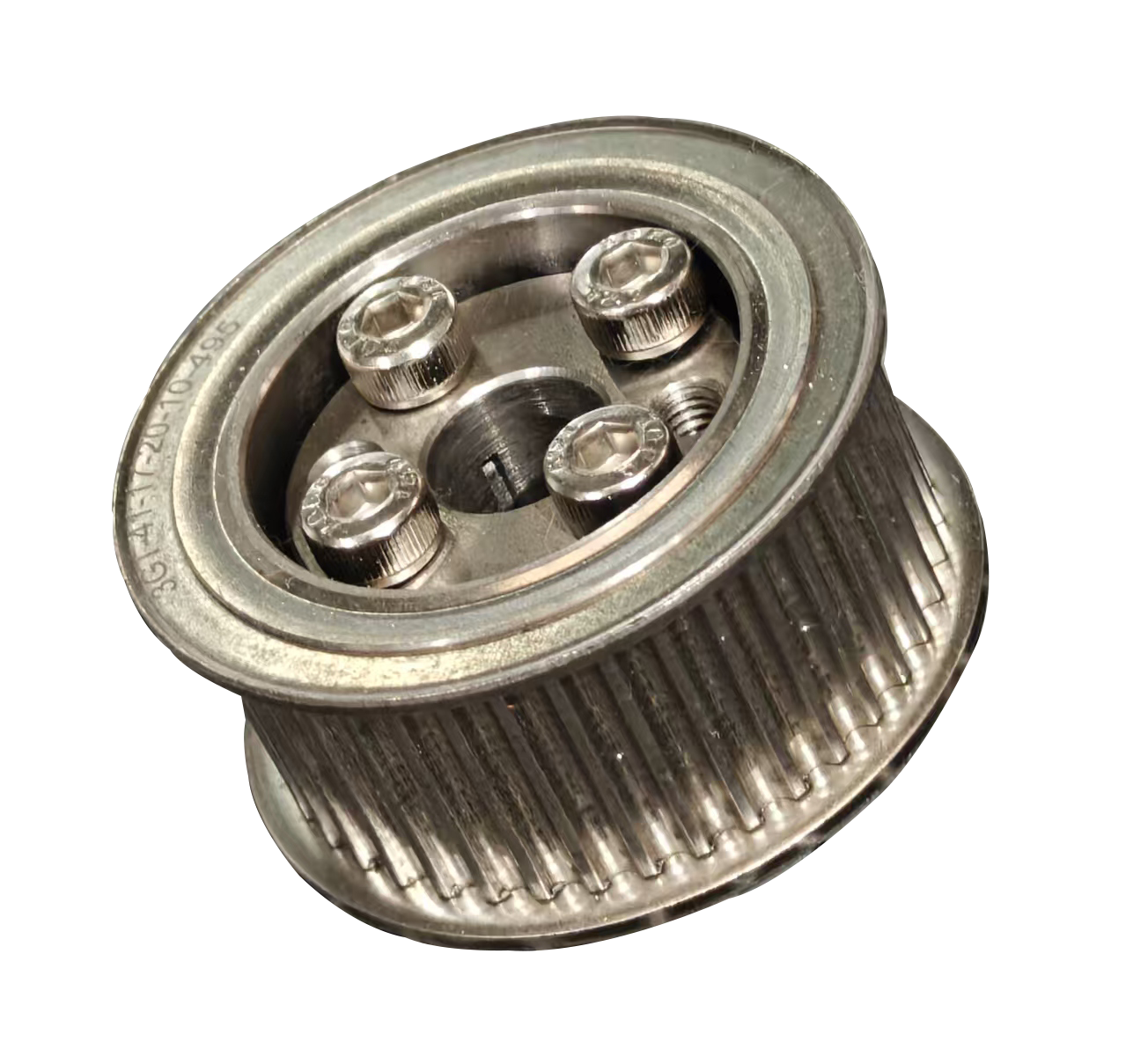

Customized synchronous pulleys, as core precision transmission components of CNC equipment, offer comprehensive customization services to meet the needs of various CNC machining centers, engraving machines, milling machines, and other machine types. These services cover compatible tooth profiles such as 3M/5M/8M and T5/AT10, preferred materials like 45# steel, stainless steel, and high-strength aluminum alloy, and precise dimensions and customized mounting interfaces, perfectly matching the stringent design requirements of CNC spindle drives and feed systems.

Leveraging a professional working condition analysis team, customized solutions precisely address transmission challenges in high-speed cutting and high-precision positioning scenarios in CNC machining. Tooth profile accuracy is controlled within ±0.015mm, and transmission efficiency exceeds 98%, ensuring zero slippage and low vibration during machining. Combined with end-to-end quality control and rapid delivery services, these solutions provide the CNC industry with stable and durable dedicated transmission solutions, helping to improve machining accuracy and equipment operational stability.

HTD- 3M型(节距=3 . 00mm)HTD- 3M type(3 . 00mm)
规格
ype		 节线长(mm)
Pitch Length		   齿数
TeethNo
规格
Type		 节线长(mm)
PichLength		   齿数
TeethNo
规格
Type		 节线长(mm)
RitchLengh		 齿数
Teeth No i
规格
Type		 节线长(mm)
RitchLength		 齿数
TeethNo
120-3M 120.00     40  261-3M 261.00     87  423-3M 423.00  141  669-3M 669.00  223
129-3M 129.00     43  264-3M 264.00     88  426-3M 426.00  142  675-3M 675.00  225
141-3M 141.00     47  267-3M 267.00     89  447-3M! 447.00  149  684-3M 684.00  228
144-3M! 144.00     48  270-3M! 270.00     90  453-3MI 453.00  151  699-3M 699.00  233
150-3Mi 150.00     50  276-3Mi 276.00     92  459-3Mi 459.00  153  708-3M 708.00  236
153-3M 153.00     51  282-3M 282.00     94  468-3M 468.00  156  711-3M 711.00  237
156-3M 156.00     52  285-3M 285.00     95  471-3M 471.00  157  720-3M 720.00  240
159-3M 159.00     53  288-3M 288.00     96  474-3M 474.00  158  750-3M 750.00  250
162-3M 162.00     54  291-3M! 291.00     97  477-3M! 477.00  159  753-3M 753.00  251
165-3Mi 165.00     55  300-3MI 300.00     100  480-3Mi 480.00  160  801-3M 801.00  267
168-3Mi 168.00     56  306-3Mi 306.00     102  483-3Mi 483.00  161  804-3M 804.00  268
171-3M 171.00     57  309-3M 309.00     103  486-3M 486.00  162  813-3M 813.00  271
174-3M 174.00     58  312-3M 312.00     104  492-3M 492.00  164  843-3M 843.00  281
177-3M 177.00     59  315-3M 315.00     105  495-3M 495.00  165  885-3M 885.00  295
180-3M 180.00     60  318-3M! 318.00     106  501-3M 501.00  167  900-3M 900.00  300
186-3Mi 186.00     62  324-3Mi 324.00     108  510-3Mi 510.00  170  939-3M 939.00  313
189-3Mi 189.00     63  327-3Mi 327.00     109  513-3M 513.00  171  1071-3Mi 1071.00  357
192-3M 192.00     64  333-3M 333.00     111  522-3M 522.00  174  1125-3M 1125.00  375
195-3M 195.00     65  336-3M 336.00     112  531-3M 531.00  177  1209-3M 1209.00  403
198-3M 198.00     66  339-3M 339.00     113  537-3M 537.00  179  1245-3M 1245.00  415
201-3M 201.00     67  342-3M! 342.00     114  558-3M! 558.00  186  1263-3M 1263.00  421
204-3Mi 204.00     68  345-3Mi 345.00     115  564-3Mi 564.00  188  1344-3M 1344.00  448
207-3Mi 207.00     69  348-3M 348.00     116  576-3Mi 576.00  192  1404-3M 1404.00  467
210-3M 210.00     70  351-3M 351.00     117  579-3M 579.00  193  1569-3M 1569.00  523
213-3M 213.00     71  357-3M 357.00     119  582-3M 582.00  194  1800-3M 1800.00  600
i222-3M 222.00     74  360-3M 360.00     120  597-3M 597.00  199  1950-3M 1950.00  650
225-3M! 225.00     75  363-3M! 363.00     121  606-3M! 606.00  202  2460-3M 2460.00  720
228-3Mi 228.00     76  366-3Mi 366.00     122  609-3Mi 609.00  203  2388-3M 2388.00  796
234-3M 234.00     78  375-3Mi 375.00     125  612-3Mi 612.00  204  2640-3M 2640.00  880
237-3M 237.00     79  384-3M 384.00     128  630-3M 630.00  210  3000-3M 3000.00  1000
240-3M 240.00     80  390-3M 390.00     130  633-3M 633.00  211  3210-3M 3210.00  1070
246-3M 246.00     82  396-3M 396.00     132  639-3M 639.00  213  3390-3M 3390.00  1130
252-3M! 252.00     84  399-3M! 399.00     133  648-3M! 648.00  216


255-3Mi 255.00     85  420-3Mi 420.00     140- 654-3M 654.00  218-
