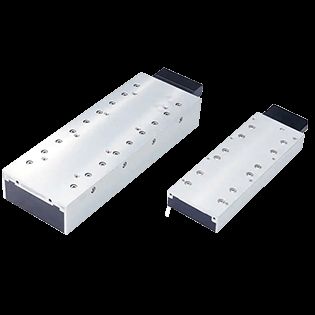

SL Series Iron-Core Linear Motor with 2250N Peak Thrust for Precision Machining and Automated Handling

1
MOQ
200-1000
Price
SL Series Iron-Core Linear Motor with 2250N Peak Thrust for Precision Machining and Automated Handling
Features Gallery Product Description Chat Now
Features
Specifications
Quality(kg/m): 2.1
Length(mm): 96/144/288
Peak Thrust @10 °C/s Temperature Rise: 2250/2700/3600/4500/4500
M5 Bolt Hole: 4/6/12
Highlight:

2250N Peak Thrust Linear Motor

,

2700N Peak Thrust SL Series

,

3600N Peak Thrust Iron-Core Motor
Basic Infomation
Place of Origin: CHINA
Brand Name: SXEGL
Certification: EPA/FCC/ROSH/ISO/CE
Model Number: SL130
Payment & Shipping Terms
Packaging Details: Cardboard boxes and foam
Delivery Time: 5-40
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Global shipping
Product Description
Simplified-Assembly SL Series Iron-Core Linear Motor is suitable for precision machining scenarios
Centered on "plug-and-play + scenario adaptation", the SL Series Iron-Core Linear Motor features operation methods closely aligned with its application fields, as detailed below:
  • Precision Machining Scenarios: Mount the motor on the power execution end of the equipment, connect it to the control system via simple wiring, and it can adapt to the machining process without complex debugging. During operation, relying on stable power output and matching the precise movement requirements of the equipment, it realizes various fine machining operations, suitable for the power upgrade of multiple types of machining equipment.
  • Semiconductor/Electronic Manufacturing Scenarios: Directly fix it to the equipment's transmission mechanism in cleanroom environments. With its jitter-free operation performance, it smoothly completes material transfer, component assembly and other operations, and can be continuously put into production without frequent maintenance.
  • Automated Handling Scenarios: Assemble it in the drive unit of manipulators or conveying equipment, quickly connect to the automated control system. Through flexible start-stop response, it adapts to the transfer needs of light and heavy loads, and can be directly integrated into the material flow links of various production lines.
  • Medical Device Scenarios: Flexibly arrange it according to the equipment's installation space, adapt to medical cleanliness requirements with its environment-resistant design. After connecting to the equipment's control system, it outputs power stably, ensuring the smooth development of various precision testing or auxiliary operations.
  • SL130 series linear motor









    Parameter Note Sign Unit SL13015 SL13018 SL13024 SL13030
    Performance Winding type


    		N S Z N S N S N S
    Motor type,
      maximum
    voltage phase-
       phase


    		Three-phase permanent magnet synchronous
    motor,400Vac rms(565Vdc)
    Peak thrust
    @10°C/s
    temperature
    rise    		 magnet@25℃ Fu N 2250  2700  3600  3600  4500  4500
    Continuous
    thrust    		 coil@100℃ Fc N 950  1140  1520  1520  1900  1900
    Maximum
    speed    		 Continuous
    thrust@600V    		 Vmax m 2.5  6  4  3  6  2.5  6  2.5  6
    Motor thrust
    constant    		 mount.
    sfc.@20℃    		 K N/Arms 225  93  135  186  93  186  93  225  93
    Motor constant coils@25℃ S N²/W 2150  2640  3500  4300
    Electricity Peak current magnet@25℃ lu Arms 13.5  33  22.3  20  40  26  52  27  66
    Continuous
    current    		 coils@100℃ Ic Arms 4.2  10.2  6.9  6.1  12.3  8.2  16.4  8.5  20.5
    back electro-
    motive force
    interphase peak
    		Bemf V/m/s 183  76  115  152  76  152  76  183  76
    Interphase
    resistance    		 coils@25℃ R Ω 15.2  2.6  5.92  8.4  2.14  6.4  1.6  7.6  1.3
    Phase
    inductance    		 I<0.6lp Lph mH 60  10  23.7  34  10  25.5  6.5  30  5
    Electrical time
    constant    		 coils@25℃ Te ms 8
    Maximum
    continuous
    power loss    		 all coils Pc W 530  640  853  1060
    Thermal
    performance    		 Thermal
    resistance    		 coils to
    mount.sfc    		 Rth ℃/W 0.12  0.11  0.08  0.06
    Thermistor/temperature sensor
    Machinery Mover weight ex.cables W kg 5.9  6.9  10  11.6
    Mover length ex.cables L mm 290  336  468  562
    Magnetic
    attraction of
    motor    		 rms@0A Fa N 4150  4900  6900  8300
    Pole-pitch N-N
    		T mm 24
    Wire  cable
    Equipped with 0.5 meter length cable

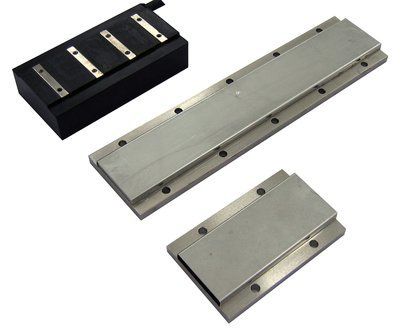

    Magnetic plate size
    Length(mm) 96  144  288
    M5 bolt hole 4  6  12
    Quality(kg/m) 2.1

    The  magnetic  plate  can  be  spliced  and  combined
  • Parameter Note Sign Unit SL13006 SL13009 SL13012
    performance Winding type


    		N S N S Z N S Z
      Motor type,
    maximum voltage
      phase-phase


    		Three-phase permanent magnet synchronous
    motor,400Vac rms(565Vdc)
    Peak thrust @10
    °C/s temperature
          rise    		 magnet@25℃ Fu N 900  1350  1800
    Continuous thrust coil@100℃ Fc N 380  570  760
    Maximum speed Continuous
    thrust @600V    		 Vmax m 3  6  2  6  4  3  6  4
    Motor thrust
    constant    		 mount.
    sfc.@20℃    		 K N/Arms 186  93  270  93  135  186  93  135
    Motor constant coils@25℃ S N²/W 875  1075
    		1750
    Electricity Peak current magnet@25℃ lu Arms 6.5  13  6.5  20  13.9  13  26  17.8
    Continuous current coils@100℃ Ic Arms 2.1  4.1  2.1  6.2  4.3  4.1  8.2  5.5
    back electro-motive
    force interphase
    peak
    		Bemf V/m/s 152  76  228  76  115  152  76  115
    Interphase
    resistance    		 coils@25℃ R Ω 25.2  6.3  37.8  4.2  9  12.6  3.2  7.4
    Phase inductance I<0.6lp Lph mH 102  26  153  17  36  51  13  29.6
    Electrical time
    constant    		 coils@25℃ Te ms 8
    Maximum
    continuous power
    loss    		 all coils Pc W 215  330  430
    Thermal
    performance    		 Thermal resistance coils to
    mount.sfc    		 Rth ℃/W 0.3  0.018  0.15
    Thermistor/temperature sensor PTC 1KΩ/KTY 83-122
    Machinery Mover weight ex.cables W kg 3  4  4.9
    Mover length ex.cables L mm 146  194  244
    Magnetic attraction
    of motor    		 rms@0A Fa N 1700  2600  3400
    Pole-pitch N-N
    		T mm 24

    Wire cable
    Equipped with 0.5 meter length cable
    Magnetic plate size
    Length(mm) 96  144  288
    M5 bolt hole 4  6  12
    Quality(kg/m) 2.1
    The magnetic plate can be spliced and combined
