Home /Products/Single Axis Robot/Dust-Protected EPY Series Electric Linear Stage with Encoder DC24V for Precise Position Control and High-Speed Operation

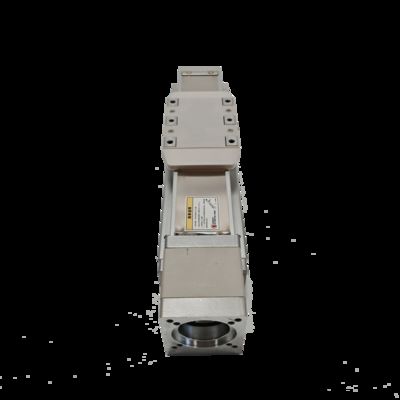

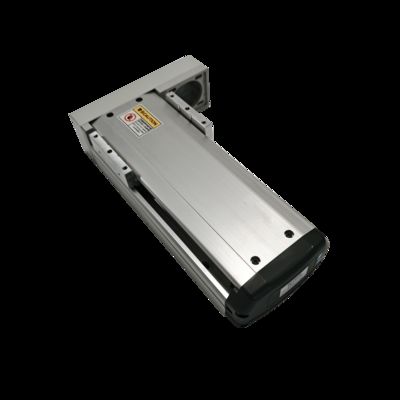

Dust-Protected EPY Series Electric Linear Stage with Encoder DC24V for Precise Position Control and High-Speed Operation

1
MOQ
200-1000
Price
Dust-Protected EPY Series Electric Linear Stage with Encoder DC24V for Precise Position Control and High-Speed Operation
Features Gallery Product Description Chat Now
Features
Specifications
Pushing Speed(mm/s): 10
Acceleration And Deceleration(mm/s²): 3000
Clearance(mm): Below 0.2
Repeatable Positioning Accuracy(mm): ±0.05
Impact  Resistance/Vibration(m/s²): 50/20
Motor Type: Stepper Motor (with Encoder DC24V)
Highlight:

Encoder DC24V Electric Linear Stage

,

Precise Position Control Single Axis Robot

,

High-Speed Operation Linear Module
Basic Infomation
Place of Origin: CHINA
Brand Name: SXEGL
Certification: CE/EPA/FCC/ROSH/ISO
Model Number: EPY6
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-45
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Dust-Protected EPY Series Electric Linear Stages High-Efficiency Transmission
As high-precision executive components in the industrial automation field, the EPY/EPS series electric linear stages adopt a European-standard modular structure design: the EPS series focuses on high efficiency for light-load scenarios, while the EPY series emphasizes stability for heavy-load conditions. Both are equipped with fully sealed protective enclosures, which can isolate dust and oil in the production environment, balancing transmission accuracy and adaptability to harsh working conditions, and meeting the linear motion needs of automated production lines across multiple industries.

Core Features

  • Precise Position Control with Dual-Series Adaptation: Both the EPS and EPY series achieve a repetitive positioning accuracy of ±0.05mm — the former is suitable for precision assembly in the 3C electronics industry, while the latter meets the needs of heavy-load transfer of automotive parts. Both support dynamic error compensation under closed-loop servo control to reduce positioning deviations.
  • Efficient Transmission with Quiet Operation: Offers optional dual-transmission solutions of high-precision ball screws and timing belts. Both series reach a maximum operating speed of 120mm/s, adapting to high-frequency operations. The transmission system is optimized for quietness, with operating noise ≤ 65dB, meeting the requirements of low-noise production environments.
  • Flexible Integration with Multi-Scenario Compatibility: Supports multi-orientation installation (horizontal, vertical, inverted) and is compatible with mainstream servo motors such as Siemens and Panasonic. Customizable dual-slider linkage and multi-axis combined structures are available, adapting to non-standard scenarios like AGV material docking and laser cutting positioning.
  • Long Durability with Low Maintenance: Features a high enclosure protection rating; key components are made of hardened alloy steel. The EPS series has a failure-free service life of ≥ 12,000 hours, and the EPY series ≥ 10,000 hours. The lubrication system has an 800-hour maintenance-free period, reducing operation and maintenance costs.

Application Fields

Widely used in scenarios such as laser marking and positioning of PCB boards in the 3C electronics industry, assembly and transfer of auto parts in automotive manufacturing, precision reagent delivery in the medical device industry, and material shifting in logistics automated sorting lines, it is an optimal solution for automated linear motion that balances precision and efficiency.

         Model          Model EPY6
Actuator
specifications		 Stroke(mm) 255075
Lead(mm) 4  12
Pressure contact thrust(N) 14-20
Portable weight
(KG)		 horizontal 2  0.5
vertical 0.5  0.125
Speed(mm/s) horizontal 10-150
vertical 10-150
Pushing speed(mm/s) 10
Acceleration and deceleration(mm/s²) 3000
Clearance(mm) Below 0.2
Repeatable positioning accuracy
(mm)		 ±0.05
Impact  resistance/Vibration(m/s²) 50/20
Driving method Sliding screw
Product weight(KG) 240,290.34
Operating temperature range(℃) 5-40
Operating humidity range(%RH) Below 90
Electrical
specifications		 Motor size 20
Motor type Stepper motor (with encoder DC24V)
Encoder(angle sensor) Relative increment A/B phase (800 pulses/cycle)
Rated voltage(V) DC24
Power consumption(W) 12
Operating standby power(W) 11
Instantaneous maximum power(W) 22

Tag:

Linear Motion Module

Ball Screw Linear Actuator

Ball Screw Linear Module
