Name: MK Series Single Axis Robot with High Load Capacity 200kg Long Stroke 100-6000mm and AC Servo Motor 750W
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: MK110
Price: 600.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Repeatable Positioning Accuracy(mm): ±0.1

Rated Thrust(N): 765

Standard Stroke(mm)*3: 100-6000mm/100 Interval

AC Servo Motor Capacity(W): 750

Belt Width(mm): 50

High Rigidity Linear Slide(mm): W23XH18

Highlight:

High Load Capacity 200kg Single Axis Robot

Long Stroke 100-6000mm Linear Module

AC Servo Motor 750W Belt-Driven Linear Slider

Basic Infomation

Place of Origin: CHINA

Brand Name: SXEGL

Certification: CE/EPA/FCC/ROSH/ISO

Model Number: MK110

Payment & Shipping Terms

Packaging Details: Carton and foam

Delivery Time: 5-45

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Gallery

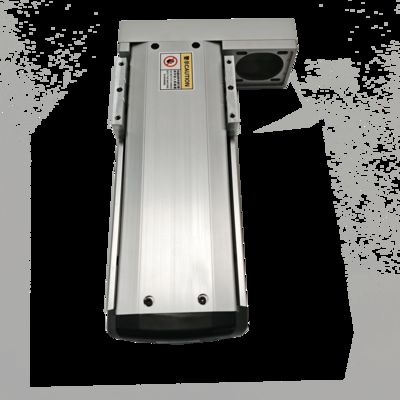

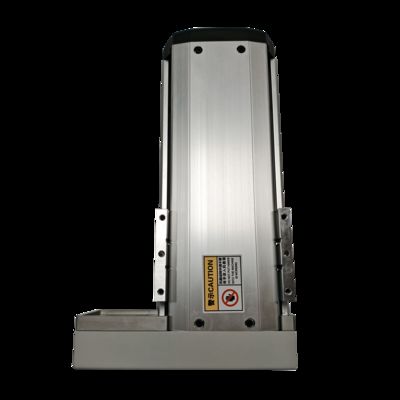

MK Series Single Axis Robot with High Load Capacity 200kg Long Stroke 100-6000mm and AC Servo Motor 750W

Product Description

MK Series European Standard Belt-Driven Linear Sliders

Engineered in compliance with European industrial standards, these high-performance linear modules integrate German precision manufacturing and modular design. Ideal for long-stroke and high-load applications with a travel range of 100-6000 mm, positioning accuracy of ±0.1 mm, and maximum load capacity of 200 kg horizontally and 50 kg vertically.

Typical Applications

Logistics and Warehouse Automation: Main drive axis for sorting carts operating at speeds up to 2 m/s with ±0.1 mm accuracy for precise scanning and positioning, increasing sorting efficiency by 30%.
Automotive Assembly Lines: Combined with robotic arms for suspended handling systems, enabling vertical lifting and horizontal transfer of components with European-standard interfaces for quick integration.
Electronics Aging Test Lines: Multiple sliders form cyclic conveying systems supporting frequent lifting and lowering of test fixtures for 24/7 continuous operation.

Key Advantages

High Positioning Accuracy: ±0.1 mm repeatability with high-tension synchronous belts and precision-machined pulleys, ideal for automated labeling and workpiece transfer.
High Horizontal Load Capacity: Dual-guide parallel layout supports up to 200 kg horizontal loads, a 40% improvement over single-rail systems.
Vertical Stability: Anti-fall brake mechanisms and preloaded guide rails handle vertical loads up to 50 kg with minimal sway during lifting.

※ Basic specifications MK110
Specification	Motor speed(rpm/min)			10:1	15:1	20:1
	Max speed(mm/s)*1			1250	833	625
	Max load (kg)		Horizontal	100	150	200
			Vertical*2	23	36	50
	Repeatable positioning accuracy(mm)			±0.1
	Rated thrust(N)			765
	Standard stroke (mm)*3			100-6000mm/100 interval
Component	AC servo motor capacity(W)			750
	Belt width (mm)			50
	High rigidity linear slide (mm)			W23XH18
	Origin sensor	Plug		PM-T45(NPN)

Type	Motor speed(rpm/min)	Max speed(mm/s)*1	Max load(kg)		Repeatable positioning accuracy(mm)	Rated thrust(N)	Standard stroke(mm)*3	AC servo motor capacity(W)	Belt width(mm)	High rigidity linear slide(mm)	Origin sensor
											Plug
			Horizontal	Vertical*2
MK65	3:1	1833	30	9	±0.1	220	100-6000mm/100mm interval	400	32	W15XH12.5	PM-T45(NPN)
	5:1	1100	45	15

	7:1	785	55	16

	10:1	550	60	17

MK85	5:1	2000	40	14	±0.1	340	100-6000mm/100 interval	750	46	W20XH15	PM-T45(NPN)
	7:1	1428	60	21
	10:1	1000	100	24
MK110	10:1	1250	100	23	±0.1	765	100-6000mm/100 interval	750	50	W23XH18	PM-T45(NPN)
	15:1	833	150	36


	20:1	625	200	50
