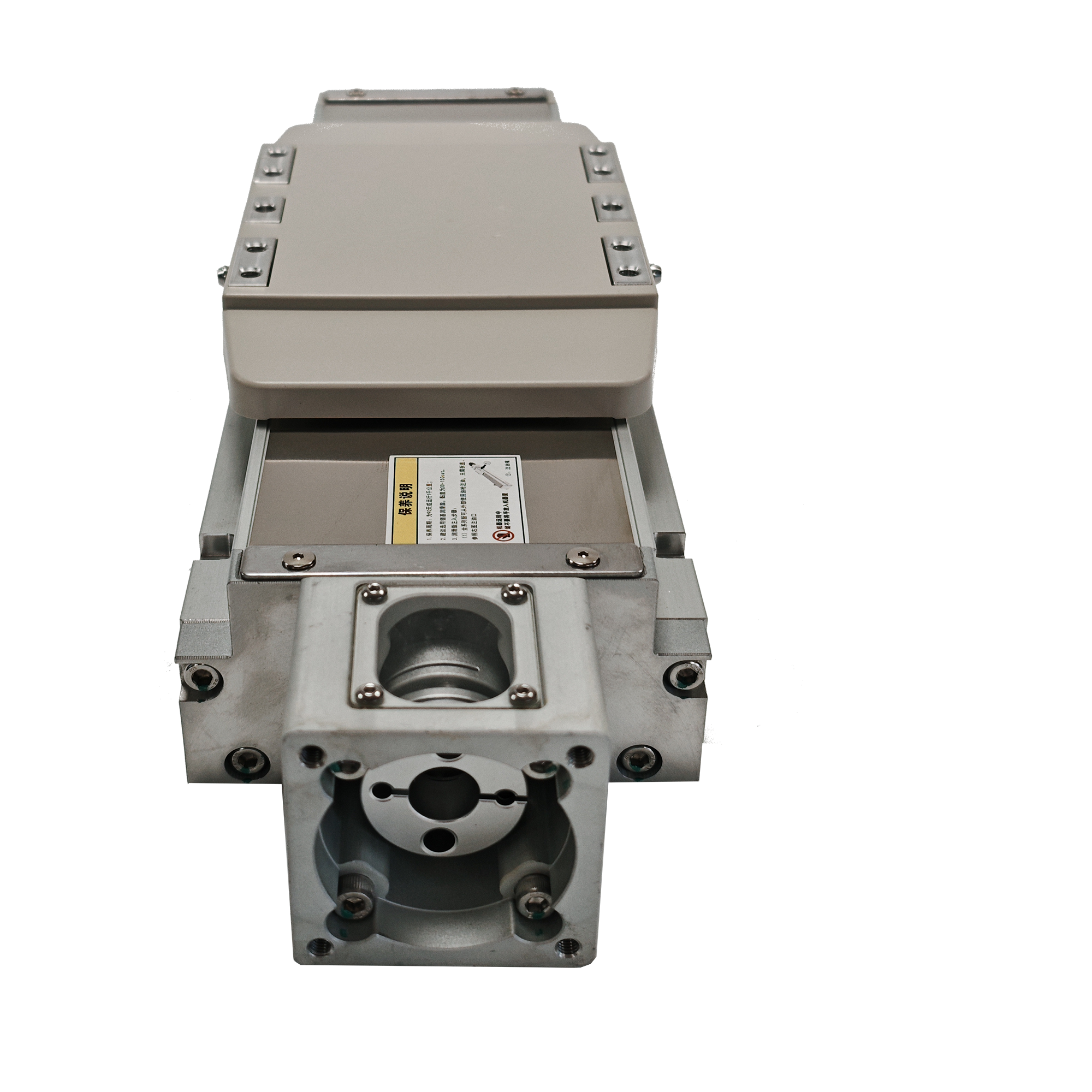

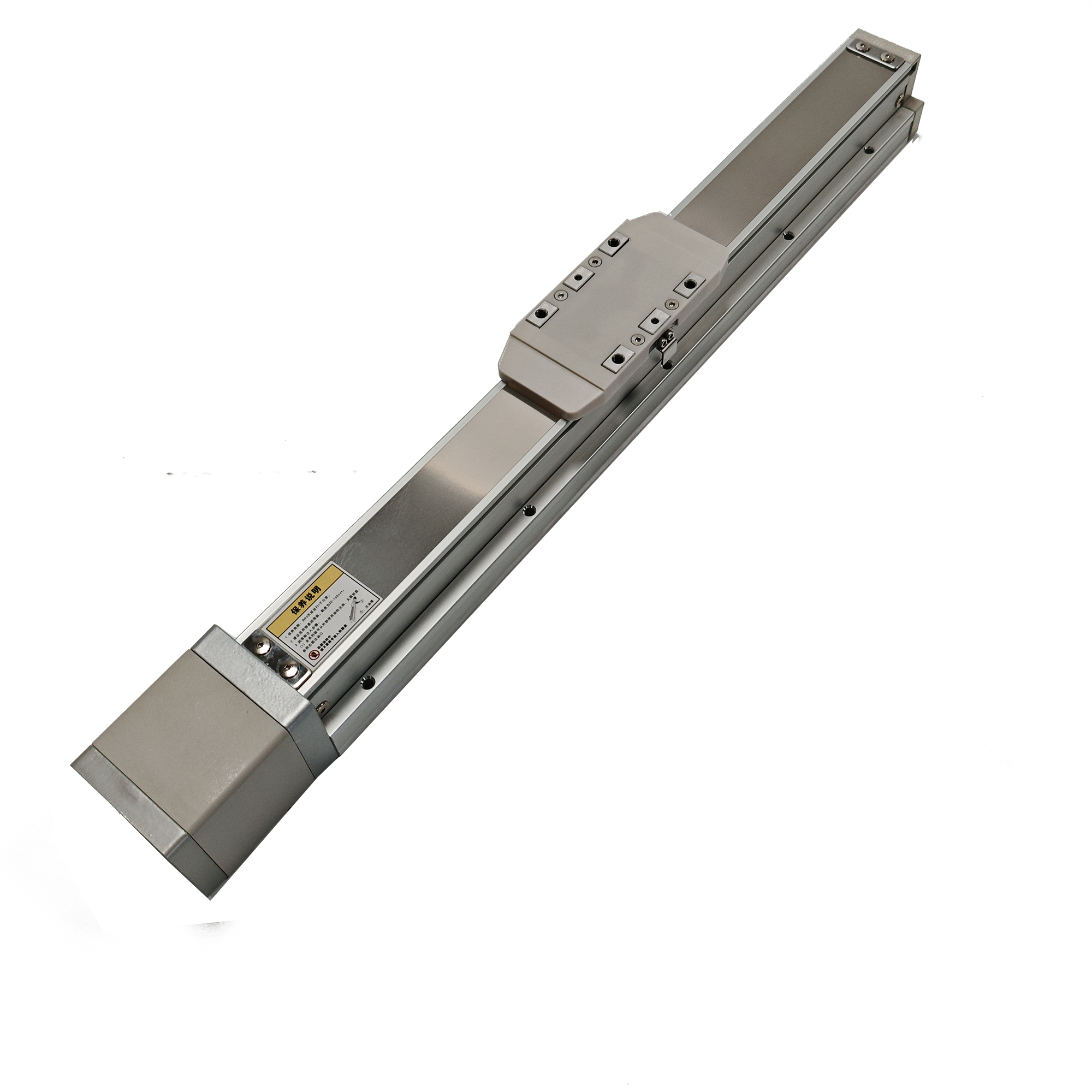

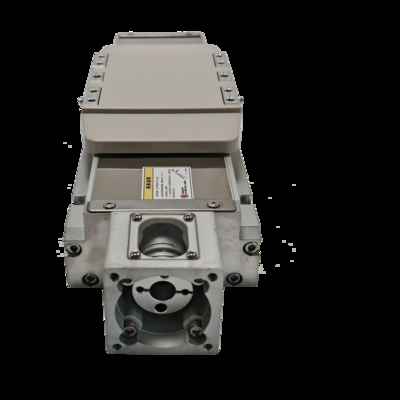

High Load Capacity, Widely Applicable GTH Series Linear Module GTH8S with High Precision
Product Introduction
The GTH series, a track-embedded screw module, serves as a core transmission component for industrial precision automation. It covers a stroke range of 50-1350mm, is compatible with mainstream PLC control systems, and can be flexibly configured into multi-axis structures to meet diverse motion requirements.
Core Advantages
It features ±0.01mm repeat positioning accuracy and a maximum operating speed of 2000mm/s. The integrated track design enhances straightness by 40%, with a maximum thrust of 2563N and a horizontal load capacity of up to 120kg. Boasting exceptional rigidity, it maintains stability even during high-speed operation.
Key Selling Points
Strong compatibility: Compatible with mainstream PLC control systems (e.g., Siemens S7, Mitsubishi FX series) and supports EtherCAT/Modbus industrial bus protocols, enabling seamless integration with central control systems of automated production lines. The slider is pre-equipped with standard mounting holes, allowing direct installation of end effectors such as suction cups and grippers without the need for custom adapters.
Wide environmental adaptability: Operates stably within a temperature range of -10℃ to 60℃ and 5%-95% humidity (without condensation). Designed with anti-freezing lubricants for low-temperature scenarios and optimized heat dissipation structures for high-temperature environments, it is suitable for special working conditions such as high-temperature pole piece processing in new energy batteries and cold-chain biological sample transmission.
Outstanding durability: The ball screw undergoes high-temperature nitriding treatment, improving wear resistance by 50%. The guide rail slider incorporates reinforced steel balls, capable of withstanding long-term operation under a 120kg horizontal load without significant wear. Under normal use, the module’s service life exceeds 10,000 hours.
Significant energy efficiency: Its optimized transmission structure reduces enterprises' electricity costs over the long term and complies with environmental noise standards for industrial workshops.
Flexible customization: Stroke can be adjusted on demand (customizable at any interval within 50-1350mm). Optional accessories include extended dust covers, anti-corrosion coatings, and low-temperature lubricants.
Application Fields
In the new energy sector, its 120kg maximum horizontal load and 2000mm/s high-speed transmission capability perfectly match high-speed battery pole piece laminators, supporting efficient processing of tens of thousands of pole pieces per day. It also meets heavy-load transfer needs in cell assembly processes (e.g., cell transfer, module capping), preventing load deformation with its robust rigidity to ensure continuous operation efficiency of power battery production lines.
| ※ Basic specifications GTH8S |
| Specification |
Repeatable positioning accuracy(mm) |
±0.01 |
| Screw lead (mm) |
5 |
10 |
20 |
32 |
| Max speed(mm/s) |
250 |
500 |
1000 |
1600 |
| Max load (kg) |
Horizontal |
110 |
88 |
40 |
30 |
| Vertical |
33 |
22 |
10 |
8 |
| Rated thrust(N) |
1388 |
694 |
347 |
218 |
| Standard stroke (mm) |
50-1250mm/50 Interval |
| Component |
AC servo motor capacity(W) |
400 |
| Screw outer diameter(mm) |
C7φ16 |
| Coupling(mm) |
10×14 |
| Origin sensor |
Plug |
PM-Y45(NPN) |
