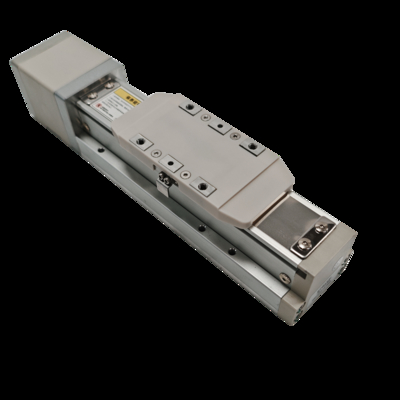

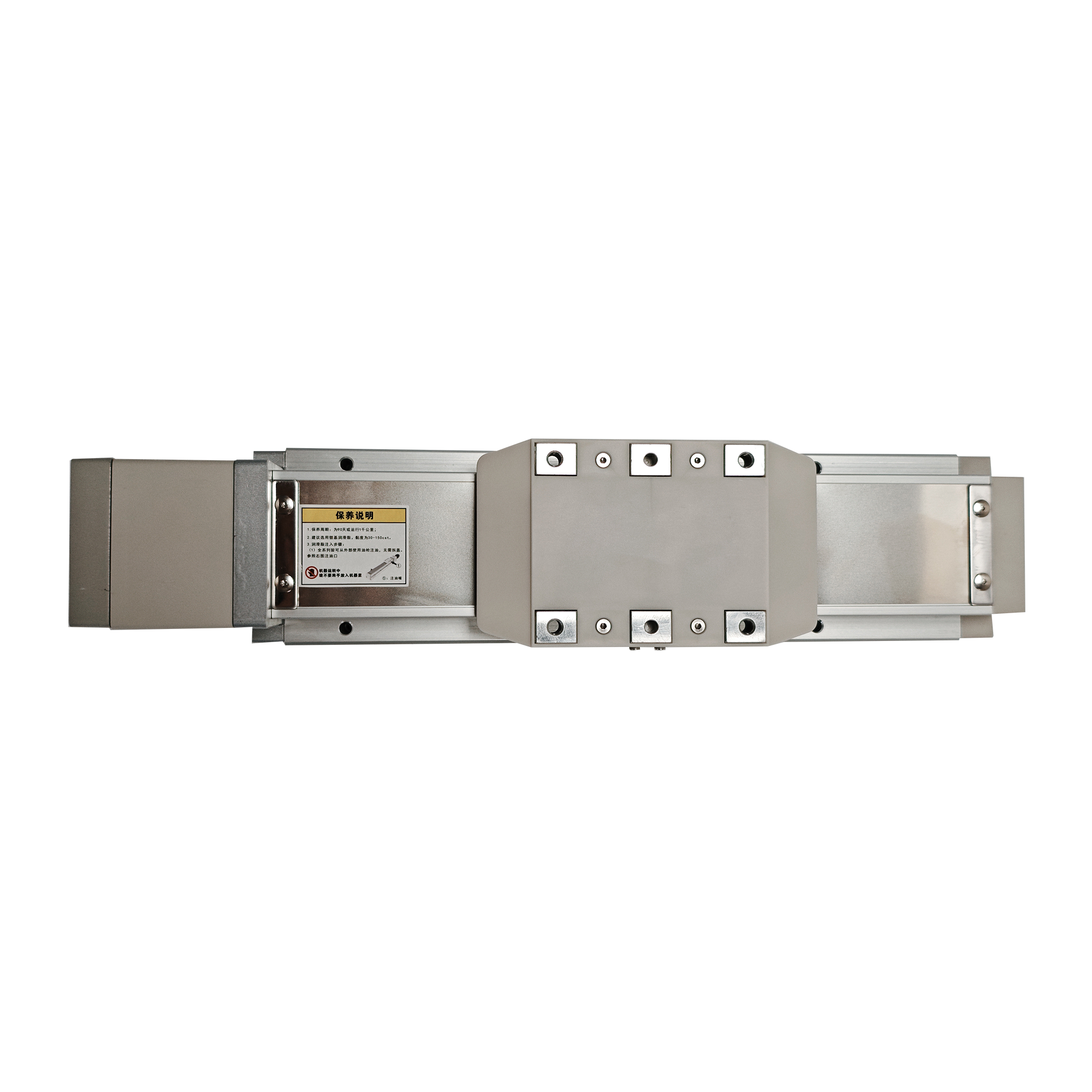

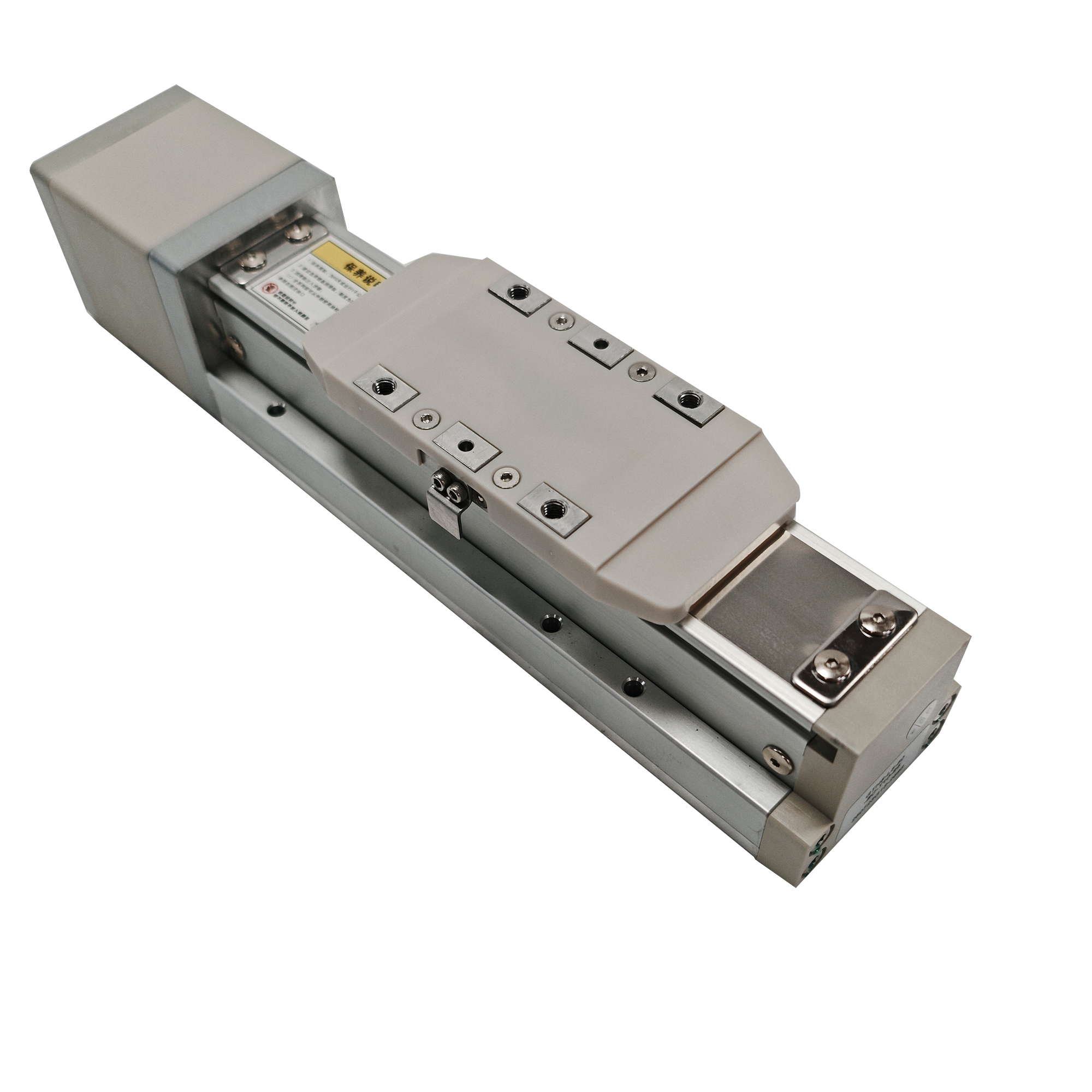

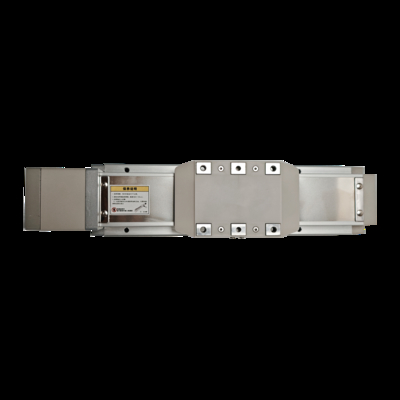

Dust Proof and Maintenance Free GTH Series Linear Module GTH8 with High Precision
Product Introduction
The GTH series is a track-embedded screw module, serving as a core transmission component for industrial precision automation. It covers a stroke range of 50-1350mm, is compatible with mainstream PLC control systems, and can be flexibly configured into multi-axis structures to meet diverse motion requirements.
Core Advantages
It features ±0.01mm repeat positioning accuracy and a maximum operating speed of 2000mm/s. The integrated track design improves straightness by 40%, with a maximum thrust of 2563N and a maximum horizontal load capacity of 120kg. It boasts strong rigidity and remains stable even at high speeds.
Key Selling Points
Significant space optimization: 20% narrower than traditional modules and supports both top and bottom installation, suitable for compact equipment layouts.
Excellent cleanliness performance: Equipped with a steel belt dust-proof structure, it effectively prevents particle contamination, making it suitable for scenarios with strict cleanliness requirements such as wafer handling and biological sample processing.
High maintenance efficiency: Features an external independent oiling hole design, allowing lubrication and maintenance without disassembling the module.
Comprehensive safety protection: Equipped with a collision detection function that automatically triggers deceleration and shutdown when the load exceeds the set threshold to prevent damage to mechanical components; reserved emergency stop signal interface, compatible with industry-standard emergency stop systems and compliant with ISO 13849 safety standards.
Easy installation and calibration: A precision reference surface (tolerance ±0.005mm) is set on the side of the body, with positioning PIN holes at the bottom, enabling calibration error to be controlled within 0.01mm in multi-axis combinations; standard origin/limit sensor mounting positions support direct NPN signal output, requiring no additional circuit welding, thus increasing installation efficiency by 40%.
Application Fields
In the new energy field, its maximum horizontal load capacity of 120kg and high-speed transmission capability of 2000mm/s can be accurately matched with high-speed battery pole piece laminating machines, supporting efficient processing of tens of thousands of pole pieces per day. It also meets the needs of heavy-load transfer in cell assembly processes such as cell transfer and module capping, avoiding load deformation with strong rigidity and ensuring the continuous operation efficiency of power battery production lines.
| ※ Basic specifications |
GTH8 |
|
|
|
| Specification |
Repeatable positioning accuracy(mm) |
±0.01 |
| Screw lead(mm) |
5 |
10 |
20 |
| Max speed(mm/s) |
250 |
500 |
1000 |
| Max load(kg) |
Horizontal |
50 |
30 |
18 |
| Vertical |
15 |
8 |
3 |
| Rated thrust(N) |
683 |
341 |
174 |
| Standard stroke (mm) |
50-1100mm/50 Interval |
| Component |
AC servo motor capacity(W) |
200 |
| Screw outer diameter(mm) |
C7φ16 |
| Coupling(mm) |
10×14/11note |
| Origin sensor |
Plug |
PM-Y45(NPN) |
