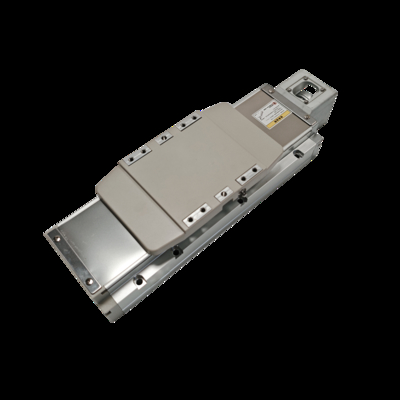

Precise Dual Rail Guidance High Precision EGT120 Series Synchronous Belt Linear Stage Ultra Long Stroke

1
MOQ
200-700
Price
Precise Dual Rail Guidance High Precision EGT120 Series Synchronous Belt Linear Stage Ultra Long Stroke
Features Gallery Product Description Chat Now
Features
Specifications
Standard     motor     output(W): 750W
Rated      torque(N ·m): 2.4
Repeatable     Positioning     Accuracy(mm): ±0.08
Max       Stroke(mm): 100-6000mm/interval 50mm
Timing Belt Specification: 45×5(lead 125mm)
Increase  Weight(per   100mm   Stroke   Kg): 1.5
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: EGT120
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Precise Dual Rail Guidance High Precision EGT120 Series Synchronous Belt Linear Stage Ultra Long Stroke
The EGT Series Synchronous Belt Linear Stage is a high-performance linear motion component developed for the industrial automation sector. Guided by the core design principles of "precision guidance via dual guide rails, stable high-load support, and flexible multi-directional assembly," it can be accurately matched to complex mechanical structures such as linear gantries and cantilever-type electric cylinders, laying a solid and reliable foundation for linear motion in industrial scenarios including automotive component transfer, electronic component bonding, and logistics sorting. Its key advantages lie in balancing an ultra-long stroke of 5000mm with a repetitive positioning accuracy of ±0.08mm, while enabling flexible switchable motor installation on four sides—revolutionizing the versatility and scenario adaptability of basic axis-type linear stages.​
1. Core Application Scenarios​
Linear Gantry Systems​
In the component handling gantries of automotive final assembly workshops, the EGT Linear Stage functions as the X-axis (stroke: 3000mm) and Y-axis (stroke: 2000mm) respectively. With a load capacity of 100kg, it can easily support heavy components like gearboxes; the dual-guide-rail structure effectively prevents deflection deformation caused by gantry span, and the ±0.08mm accuracy precisely meets the alignment requirements for bolt holes.​
Cantilever-Type Electric Cylinders​
In the cantilever-type pick-and-place mechanism of 3C electronic placement machines, the EGT Linear Stage serves as the X-axis (stroke: 1000mm). Its side-mounted motor design reduces vertical space usage by 50%; leveraging excellent anti-overturning torque performance, it ensures no offset of the nozzle head under unilateral load, achieving high-precision placement of 0402 components.​
Logistics Sorting Lines​
In the automatic sorting systems of e-commerce warehouses, the EGT Linear Stage (stroke: 5000mm) acts as the main conveying axis. Driven by a high operating speed of 2.5m/s combined with a positioning accuracy of ±0.08mm, it enables sorting carts to efficiently complete parcel positioning and delivery—boosting efficiency by 35% compared to traditional chain conveyor solutions.​
2. Core Selling Points​

Convenient Motor Installation: Supports installation on four sides of the electric cylinder, with freely switchable mounting orientations to meet diverse equipment layout needs;​

Efficient Space Utilization: Proximity switches can be directly embedded into profile grooves for installation, eliminating the need for additional reserved space and further reducing equipment volume;

EGT120



Standard motor output (W) 750W
Rated torque(N ·m) 2.4
Repeatable positioning accuracy(mm) ±0.08
Max stroke(mm) 100-6000mm/interval 50mm
Timing belt specification 45×5(lead 125mm)
Reduction ratio 3:1 5:1 7:1 10:1
Max speed (mm/s) 2080  1250  890  625
Max load (kg) 30  50  70  100
Basic weight(0mm stroke kg) 12.7
Increase weight (per 100mm stroke kg) 1.5
Magnetic reed switch CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m
Photoelectric switch PM-T45 NPN type wire length 1M
PM-T45-P PNP type wire length 1M
Briquettes Page 140 for details

​​

Type

Standard

motor

output (W)

Rated

torque

(N ·m)

 Repeatable positioning accuracy(mm)

Max

stroke(mm)

Timing

belt

specification

Reduction

ratio

Max

speed

 (mm/s)

Max

horizontal

load(kg)

 Max load (kg)

Basic

weight

(0mm

stroke kg)

Increase

weight

(per 100mm

stroke kg)

 Magnetic reed switch Photoelectric switch Briquettes
EGT70 200  0.64  ±0.08

100-5000

mm/interval

50mm

 15×3(lead 78mm) No 3900  4  EGT70:12 EGT70:3.67 0.34  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1300  12
/ / /
400  1.27  No 3900  8  EGT70L:15 EGT70L:4.08 NPN type wire length 1M PNP type wire length 1M
3:1 1300  15
/ / /
EGT80 200  0.64  ±0.08

100-5000

mm/interval

 50mm

 20×3(lead       90mm) No 4500  4  EGT80:15 EGT80:4.36 0.52  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1500  11
5:1 900  15
400  1.27  No 4500  8  EGT70L:15 EGT80L:5.08 NPN   type  wire   length   1M PNP  type  wire   length   1M
3:1 1500  20
/ / /
EGT120 750W 2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080
30  12.7  1.5  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT125 400  1.27  ±0.08

100-6000

mm/interval

50mm

 30×5(lead 100mm) 3:1 1666  20  40  7.6  0.8  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1000  34
7:1 714  40  NPN type wire length 1M PNP type wire length 1M
/ / /
EGT160 750  2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080  30  100  10.2  1.2  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT220 1500  7.16  ±0.08

100-6000

mm/interval

50mm

 45×8(lead 208mm) 3:1 2300  55  200  25.8  2.1  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1380  90
7:1 990  130  NPN type wire length 1M PNP type wire length 1M
10:1 690  180

​

​
