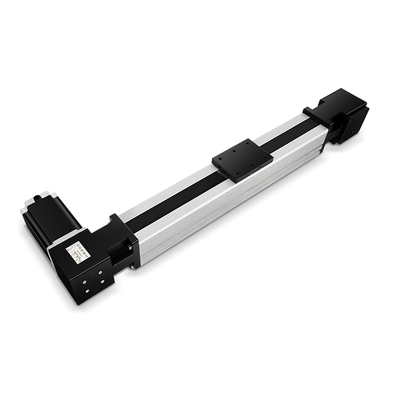

Anti Overturning Force Space Saving EGT 80 Series Synchronous Belt Linear Stage High Load Capacity

1
MOQ
200-700
Price
Anti Overturning Force Space Saving EGT 80 Series Synchronous Belt Linear Stage High Load Capacity
Features Gallery Product Description Chat Now
Features
Specifications
Standard     motor     output(W): 200
Rated      torque(N ·m): 0.64
Repeatable     Positioning     Accuracy(mm): ±0.08
Max       Stroke(mm): 100-5000mm/interval 50mm
Timing Belt Specification: 20×3(lead 90mm)
Increase  Weight(per   100mm   Stroke   Kg): 0.52
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: EGT80
Payment & Shipping Terms
Packaging Details: Carton and foam
Delivery Time: 5-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Anti Overturning Force Space Saving EGT 80 Series Synchronous Belt Linear Stage High Load Capacity​
The EGT Series Synchronous Belt Linear Stage is a high-performance linear motion module developed for the industrial automation sector. Adhering to the core design philosophy of "precision guidance with dual guide rails, stable high-load bearing, and flexible multi-directional installation," it can be accurately adapted to complex mechanical structures such as linear gantries and cantilever-type electric cylinders, laying a stable and reliable foundation for linear motion in industrial scenarios including automotive component handling, electronic component placement, and logistics sorting. Its key highlight lies in balancing an ultra-long stroke of 5000mm with a repetitive positioning accuracy of ±0.08mm, while supporting flexible switchable installation of motors on four sides—redefining the versatility and scenario adaptability of basic axis-type linear stages.​
1. Core Application Scenarios​
Linear Gantry Systems​
In the component handling gantries of automotive final assembly workshops, the EGT Linear Stage serves as the X-axis (stroke: 3000mm) and Y-axis (stroke: 2000mm) respectively. With a load capacity of 100kg, it can easily carry heavy components such as gearboxes; the dual-guide-rail structure effectively prevents deflection deformation under the gantry span, and the ±0.08mm accuracy precisely meets the alignment requirements of bolt holes.​
Cantilever-Type Electric Cylinders​
In the cantilever-type pick-and-place mechanism of 3C electronic placement machines, the EGT Linear Stage acts as the X-axis (stroke: 1000mm). Its side-mounted motor design saves 50% of vertical space; relying on excellent anti-overturning torque performance, it ensures no offset of the nozzle head under unilateral load, enabling high-precision placement of 0402 components.​
Logistics Sorting Lines​
In the automatic sorting systems of e-commerce warehouses, the EGT Linear Stage (stroke: 5000mm) functions as the main conveying axis. Operating at a high speed of 2.5m/s and paired with a positioning accuracy of ±0.08mm, it drives sorting carts to efficiently complete parcel positioning and delivery—increasing efficiency by 35% compared to traditional chain conveyor solutions.​
2. Core Selling Points​

Flexible Motor Installation: Supports installation on four sides of the electric cylinder, with freely switchable installation orientations to adapt to different equipment layout requirements;​

High Space Utilization: Proximity switches can be directly embedded in the profile grooves for installation, eliminating the need for additional reserved installation space and further reducing equipment volume;

EGT80






Standard     motor     output(W) 200  400
Rated      torque(N ·m) 0.64  1.27
Repeatable     positioning     accuracy(mm) ±0.08
Max       stroke(mm) 100-5000mm/interval        50mm
Timing belt specification 20×3(lead       90mm)
Reduction ratio No 3:1 5:1 No 3:1 /
Max        speed(mm/s) 4500  1500  900  4500  1500  /
Max   horizontal    load(kg) 4  11  15  8  20  /
Max   load EGT80 EGT80:15
(kg)                 EGT80L EGT80L:20
Basic   weight(Omm   stroke   kg) EGT80:4.36 EGT80L:5.08
Increase  weight(per   100mm   stroke   kg) 0.52
Magnetic reed switch CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m
Photoelectric switch PM-T45 NPN   type  wire   length   1M
PM-T45-P PNP  type  wire   length   1M
Briquettes Page 140 for details
Type

Standard

motor

output (W)

Rated

torque

(N ·m)

 Repeatable positioning accuracy(mm)

Max

stroke(mm)

Timing

belt

specification

Reduction

ratio

Max

speed

 (mm/s)

Max

horizontal

load(kg)

 Max load (kg)

Basic

weight

(0mm

stroke kg)

Increase

weight

(per 100mm

stroke kg)

 Magnetic reed switch Photoelectric switch Briquettes
EGT70 200  0.64  ±0.08

100-5000

mm/interval

50mm

 15×3(lead 78mm) No 3900  4  EGT70:12 EGT70:3.67 0.34  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1300  12
/ / /
400  1.27  No 3900  8  EGT70L:15 EGT70L:4.08 NPN type wire length 1M PNP type wire length 1M
3:1 1300  15
/ / /
EGT80 200  0.64  ±0.08

100-5000

mm/interval

 50mm

 20×3(lead       90mm) No 4500  4  EGT80:15 EGT80:4.36 0.52  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
3:1 1500  11
5:1 900  15
400  1.27  No 4500  8  EGT70L:15 EGT80L:5.08 NPN   type  wire   length   1M PNP  type  wire   length   1M
3:1 1500  20
/ / /
EGT120 750W 2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080
30  12.7  1.5  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT125 400  1.27  ±0.08

100-6000

mm/interval

50mm

 30×5(lead 100mm) 3:1 1666  20  40  7.6  0.8  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1000  34
7:1 714  40  NPN type wire length 1M PNP type wire length 1M
/ / /
EGT160 750  2.4  ±0.08

100-6000

mm/interval

50mm

 45×5(lead 125mm) 3:1 2080  30  100  10.2  1.2  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1250  50
7:1 890  70  NPN type wire length 1M PNP type wire length 1M
10:1 625  100
EGT220 1500  7.16  ±0.08

100-6000

mm/interval

50mm

 45×8(lead 208mm) 3:1 2300  55  200  25.8  2.1  CS1-D-1M contact type,wire length 1m/CS1-DN-3 contactless transistor NPN type,
wire length 3m/CS1-DP-3M contactless transistor PNP type,wire length 3m		 PM-T45 PM-T45-P Page 140 for details
5:1 1380  90
7:1 990  130  NPN type wire length 1M PNP type wire length 1M
10:1 690  180

​

​
