Cost Effective Excellence Stability Flexible Protection PTH Series Semi Enclosed Screw Modules

1
MOQ
400-1500
Price
Cost Effective Excellence Stability Flexible Protection PTH Series Semi Enclosed Screw Modules
Features Gallery Product Description Request A Quote
Features
Specifications
Standard Motor Power (W): 750W
Repeatable Positioning Accuracy(mm): ±0.01
Max Stroke(mm)*2: 1250
Screw Specification: 2005/2010/2020/2040(Slenderness Ratio1:70)
Screw Grade: C7 Rolling
High Rigidity Linear Slider: W20×H15
Highlight:

Semi Enclosed Screw Modules

,

PTH Series Semi Enclosed Screw Modules

Basic Infomation
Place of Origin: CHINA
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: PTH17
Payment & Shipping Terms
Packaging Details: Carton with foam
Delivery Time: 7-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description

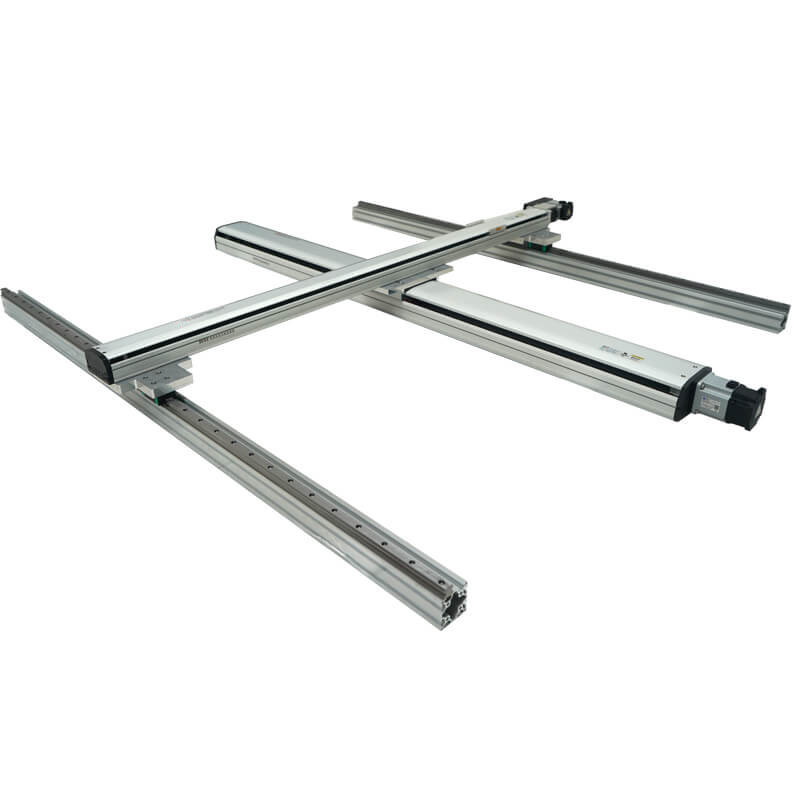

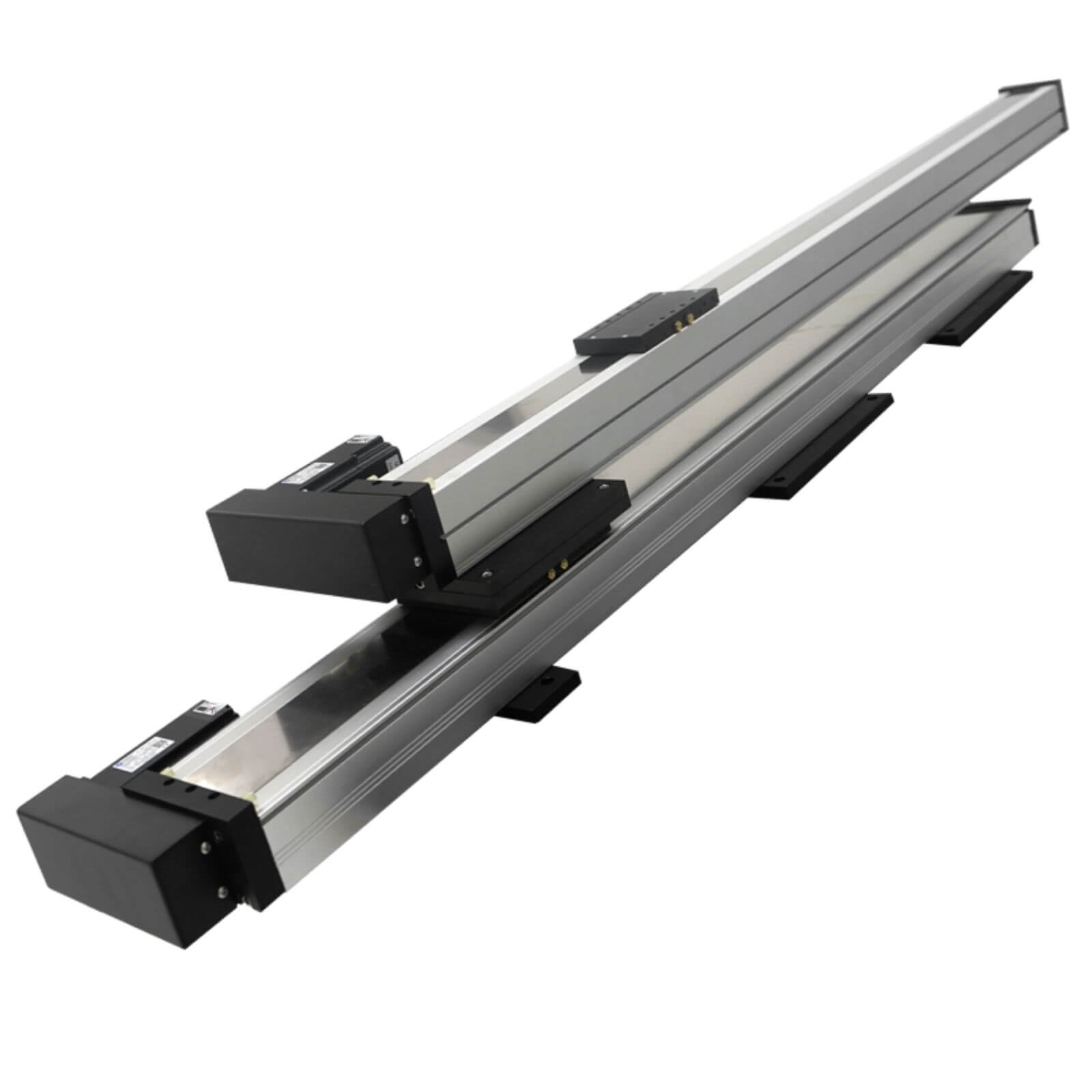

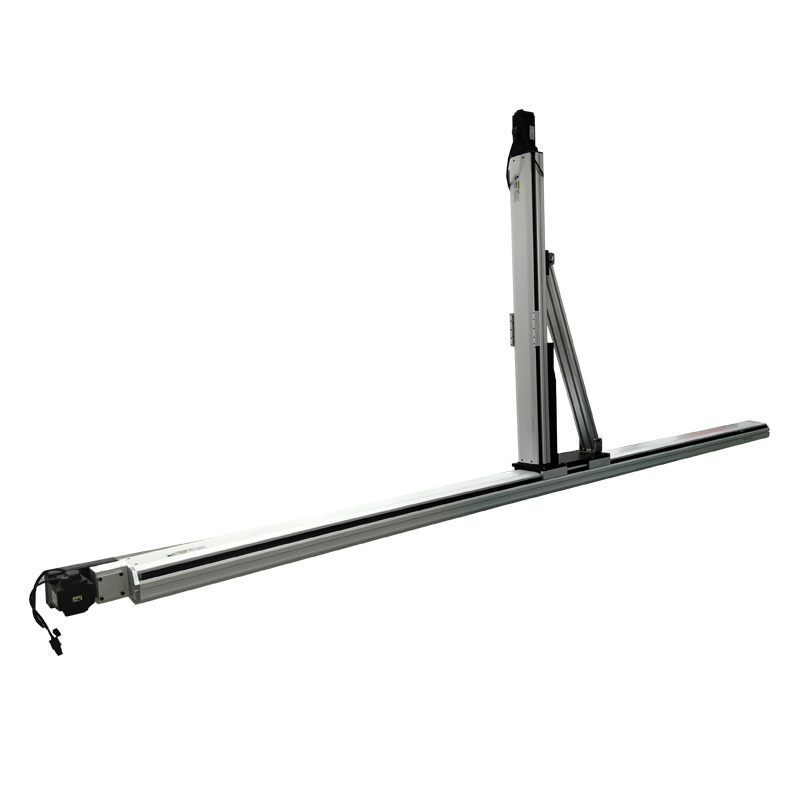

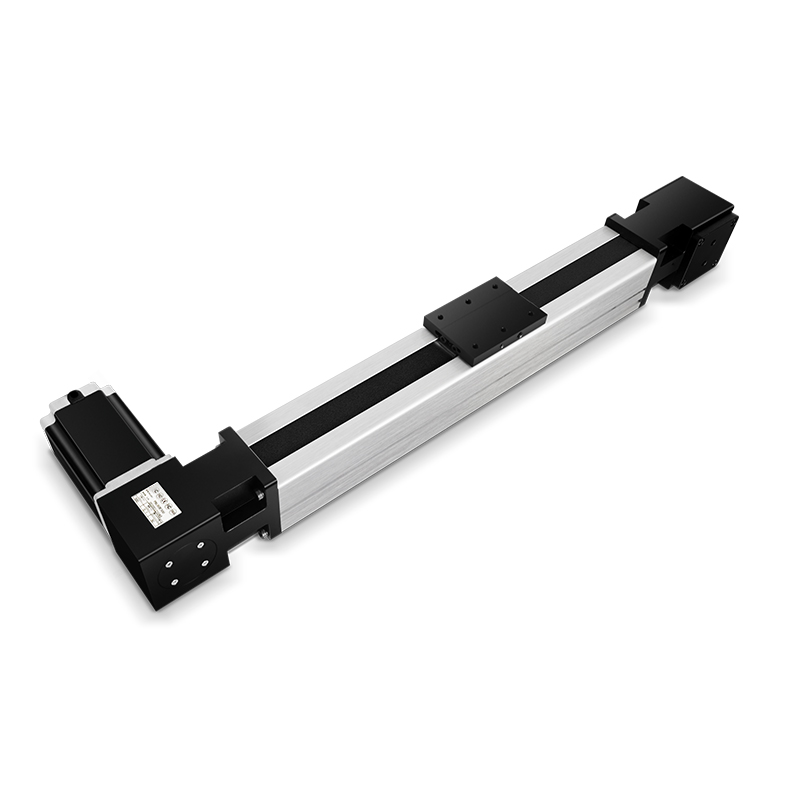

Cost Effective Excellence Stability  Flexible Protection   PTH Series Semi Enclosed Screw Modules

As a widely used linear transmission component, the PTH Series semi-enclosed screw modules integrate semi-enclosed structures with precision ball screw technology. They feature flexible adaptability, high positioning accuracy, and outstanding cost-effectiveness, capable of handling loads ranging from 20 to 200kg. Ideal for industrial scenarios requiring precision under conditions of moderate environmental cleanliness, these modules strike a balance between performance and cost efficiency.

Performance Features

  • Flexible Protection: Boasting an IP54 dust and water resistance rating, they adopt a one-piece profile shield with a single-side sealing design. This effectively blocks large particulate dust and splashing liquids while facilitating quick disassembly and inspection of internal components, thereby enhancing maintenance efficiency.
  • Precise and Stable Operation: Equipped with a standard C7-grade ball screw (with optional grades), they achieve a repeat positioning accuracy of ±0.01mm and maintain stability even at an operating speed of 1000mm/s, meeting the positioning requirements of mid-range equipment.
  • High Rigidity and Adaptability: With a maximum horizontal load of 200kg and vertical load of 100kg, they cover a stroke range of 100-2000mm. Supporting multiple installation methods (horizontal, side-mounted, vertical), they are well-suited for diverse working conditions.
  • Cost Optimization: Through localized adaptation of non-critical components, their cost is reduced by 20% compared to fully enclosed modules, making them ideal for supporting mass industrial equipment.

Application Scenarios

  • Industrial Automation: Suitable for material handling in assembly lines, positioning axes of screw driving machines, and similar applications.
  • Packaging Machinery: Applicable to sealing and cutting positioning in food and daily necessities packaging, easily bearing packaging molds with a load of 150kg.
  • Warehousing Equipment: Compatible with pick-and-place robotic arms for smart shelves, with a 2000mm long stroke meeting the needs of multi-level cargo position transfer.
  • 3C Auxiliary Manufacturing: Ideal for feed axes of mobile phone casing grinding equipment; their semi-enclosed design facilitates regular dust cleaning.
  • Specification

    PTH17

    Standard motor power (W) 750W
    Repeatable positioning accuracy(mm) ±0.01
    Screw specification 2005  2010  2020  2040
    Max speed (mm/s)*1 250  500  1000  2000
    Rated thrust (N) 2563  1281  640  320
    Max load (kg) Horizontal 120  95  83  43
    Vertical 50  40  25  12
    Max stroke(mm)*2 1250
    Component Screw specification 2005/2010/2020/2040(Slenderness ratio1:70)
    Screw grade C7 rolling
    High rigidity linear slider W20×H15
    Coupling 44-34-12-19
    Photoelectric switch PM-T45(NPN)
  • Type

    Standard

    motor power(W)

    Repeatable positioning accuracy(mm)

    Screw

    specification

    Max

    speed

    (mm/s)

    Rated

    thrust (N)

    Max load (kg) Origin sensor
    Horizontal Vertical
    PTH10 200W ±0.01 1605  250  683  50  12  -
    1610  500  341  30  8
    1616  800  213  22  5
    1620  1000  174  18  3
    PTH12 200W ±0.01 1605  250  683  50  12  -
    1610  500  341  30  8
    1616  800  218  22  5
    1620  1000  170  18  3
    PTH13 400W ±0.01 1605 250 1318 70 17 -
    1610 500 694 47 12
    1616 800 433 30 6
    1620 1000 347 24 4
    PTH14 400W ±0.01 1605  250  1388  110  33  -
    1610  500  694  88  22
    1616  800  433  48  10
    1620  1000  347  40  8
    PTH17 750W ±0.01 2005  250  2563  120  50  -
    2010  500  1281  95  40
    2020  1000  640  83  25
    2040  2000  320  43  12
    PTH22 1000W ±0.01 3205  166  5100  200  100  -
    3210  333  2550  200  80
    3220  666  1275  100  50
    3232  1062  795  80  40
    PTH27 - ±0.01 2505  250  2563  150  55  Plug:PM-T45(NPN)
    2510  500  1281  150  45  Built-in:PM-Y45(NPN)
    2525  1250  640  105  20
    Type

    Standard

    stroke (mm)

    Max stroke(mm)

    Screw

    specification

    AC servo motor capacity Screw grade High rigidity linear slider Coupling Photoelectric switch
    PTH10 - 1050

    1605/1610

    /1616/1620

    (Slenderness

    ratio1:62.5)

    - C7 rolling W20×H18 34-27-10-14 PM-T45(NPN)
    PTH12 - 1050

    1605/1610

    /1616/1620

    (Slenderness

    ratio1:62.5)

    - C7 rolling W12×H7.5 34-27-10-14 PM-T45(NPN)
    PTH13 - 1050

    1605/1610

    /1616/1620

    (Slenderness

     ratio1:62.5)

    - C7 rolling

    W15×H12.5
    34-27-10-14
    W15×H12.5 34-27-10-14 PM-T45(NPN)
    PTH14 - 1050

    1605/1610

    /1616/1620

    (Slenderness

     ratio1:62.5)

    - C7 rolling W15×H12.5 34-27-10-14 PM-T45(NPN)
    PTH17 - 1250

    2005/2010

    /2020/2040

    (Slenderness ratio1:70)

    - C7 rolling W20×H15 44-34-12-19 PM-T45(NPN)
    PTH22 - 1700

    3205/3210

    /3220/3232

    - C7 rolling W28×H26 55-78-22-22(24) PM-T45(NPN)
    PTH27

    50-1500mm

    /50 interval

    - - 750 C7025 W23×H18 17X19 -
