Home /Products/Single Axis Robot/Dust proof PCB belt series linear modules supporting ultra long stroke expansion

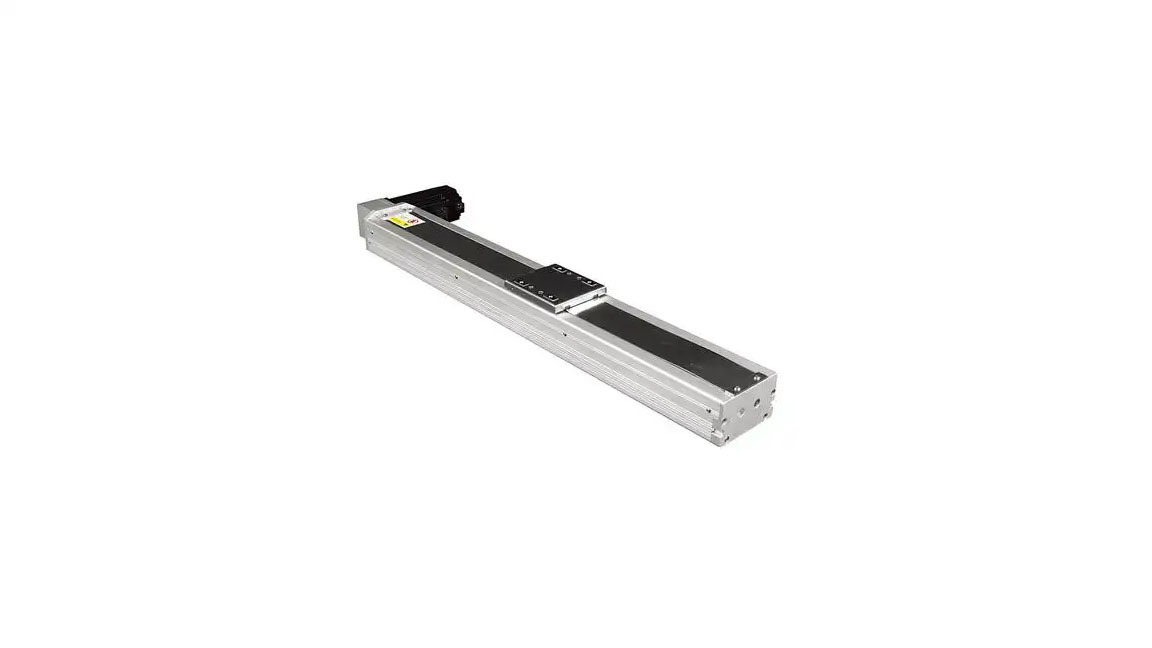

Dust proof PCB belt series linear modules supporting ultra long stroke expansion

1
MOQ
400-3000
Price
Dust proof PCB belt series linear modules supporting ultra long stroke expansion
Features Gallery Product Description Request A Quote
Features
Specifications
Lead Mm: 40
Maximum Speed Mm/s: 2000
Repetitive Positioning Accuracy: ±0.08
Freeze Thrust(N): 204
Standard Stroke Mm: 20-3050mm/50 Interval
AC Servo Motor Capacity: 400
Belt Width: 30
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: PCB
Payment & Shipping Terms
Packaging Details: Foam and cartonFoam and carton
Delivery Time: 7-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
Product Description
Dust proof  PCB belt series linear modules supporting ultra long stroke expansion
The scope of application of PCB belt series linear modules includes workpiece transfer devices in production lines, adhesive film cutting devices, transfer devices between CNC machining machines, and more. The applicable industries cover TFT-LCD liquid crystal panel equipment, solar energy equipment, food packaging equipment, and CNC machining equipment. The types of PCB belts include cleanroom belts and rubber belts.
Synchronous belt drive has obvious advantages: it adopts PM-type high-tension toothed belts with a transmission efficiency of 98%, and the maximum linear speed can reach 2m/s (compared to only 1m/s for traditional screw slides). Paired with lightweight aluminum alloy sliders, the dynamic response time is shortened to 0.4s, which can significantly improve sorting and handling efficiency.
In terms of stroke expansion, its standard stroke ranges from 50mm to 3500mm. Ultra-long stroke extension can be achieved through guide rail splicing technology, without worrying about the critical speed limitation of traditional screws. It is particularly suitable for long-distance operation scenarios such as logistics conveyor lines and three-dimensional warehouse shuttle cars.
※ Basic specifications PCB17
Specification Repetitive positioning accuracy ±0.08
Lead mm 40
Maximum speed mm/s 2000



Freeze thrust(N) 204
Standard stroke mm 20-3050mm/50 interval
Max load (kg) Horizontal 45
Vertical -
Component AC servo motor capacity 400
Belt width 30
High rigidity linear slider W20×H15
Origin sensor plug-in PM-T45(NPN)

Contact us for complete product information.
