Name: Nanometer Level Precision High Torque DD Motor with Zero Backlash Maintenance Free
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: DD80-100 22 DD110-65 /DD110-85 /DD170-50/ DD170-95/ DD263-138/DD263-188/
Price: 200 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Absolute Positioning Accuracy: ±15

Repeatable Positioning Accuracy: ±2

Axial Load: 1200-2500N

Moment Of inertia: 0.0014-0.2093

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: EPA/CE/FCC/ROSH/ISO

Model Number: DD80-100 22 DD110-65 /DD110-85 /DD170-50/ DD170-95/ DD263-138/DD263-188/

Payment & Shipping Terms

Packaging Details: Carton with foam

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Gallery

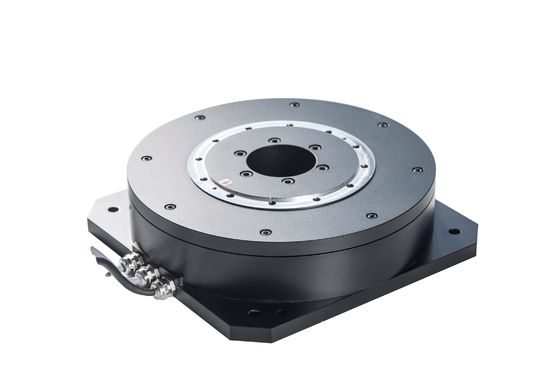

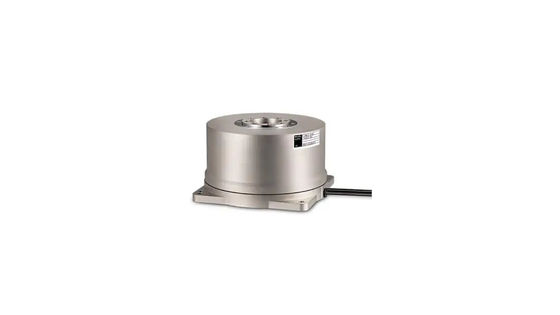

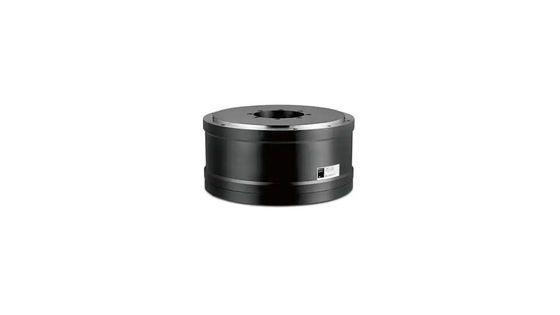

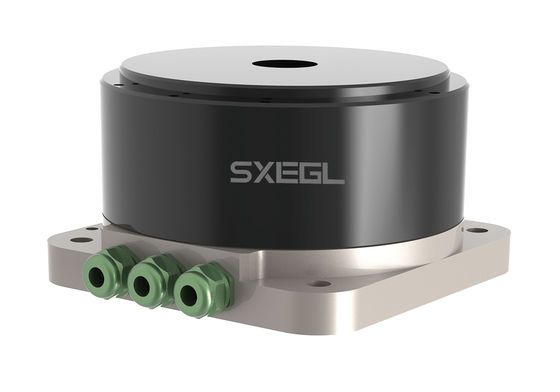

Nanometer Level Precision High Torque DD Motor with Zero Backlash Maintenance Free

Product Description

Nanometer Level Precision High Torque DD Motor with Zero Backlash Maintenance Free

-Direct force extension

-High positioning accuracy

-Maintenance-free drivee Simplify mechanical design

-High dynamic response and good drive control quality

-Simple installation and removal e High dynamic and static load rigidity

Most of the company's specifications are in stock for a long time, and it is recommended that customersprefer the company's standard products; In order to better meet the actual working conditions ofcustomers, customized services can also be provided according to customer requirements.

Parameters	Continuous torque	Max torque	Rated speed	Max speed	Continuous current	Max current	Thrust constant	Inverse EMF constant	Interphase resistance(25℃)	Interphase inductance(25℃)
Unit	Nm	Nm	Rpm	Rpm	Arms	Arms	Nm/Arms	Vrms/1000rpm	Ω	mH
DD80-100	2.3	6.8	300	300	2	6	1.1	85.7	8.5	10
DD110-65	3	9	200	300	1.6	4.8	1.87	105	10	9.5
DD110-85	6	18	200	300	1.6	4.8	3.74	213	17.7	18.4
DD170-50	5	14	150	200	1.4	4.2	3.4	184	28	65
DD170-95	28	109	150	200	2.8	8.4	10	643	21.3	57.1
DD263-138	108	310	80	100	5.4	16.2	20	12	8.4	22.4
DD263-188	200	560	80	100	8	24	25	14.1	6.3	24.8
Parameters	Pole number	Moment of inertia	Encoder resolution	Absolute positioning accuracy	Repeatable positioning accuracy	Axial load	Radial load	Axial runout	Radial runout	Motor weight
Unit		Kg ·m2	ppr	arcsec	arcsec	N	Nm	um	um	Kg
DD80-100	22	0.0014	1800000	±15	±2	1200	10	5(optional)	5(optional)	2.5
DD110-65	22	0.0026	1800000	±15	±2	9000	50	5/3	5/3	3
DD110-85	22	0.0042	1800000	±15	±2	9000	50	5/3	5/3	4.5
DD170-50	22	0.0064	3100000	±15	±2	9000	50	5/3	5/3	4.1
DD170-95	22	0.0167	3100000	±15	±2	9000	50	5/3	5/3	8.7
DD263-138	44	0.1428	4350000	±15	±2	25000	200	5/3	5/3	27.5
DD263-188	44	0.2093	4350000	±15	±2	25000	200	5/3	5/3	40
