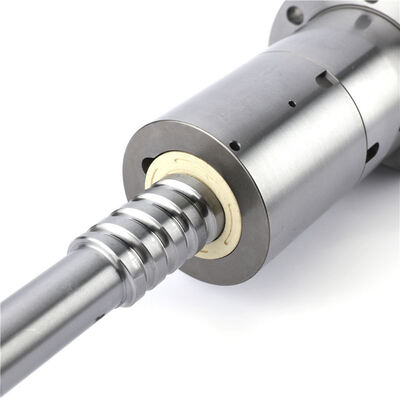

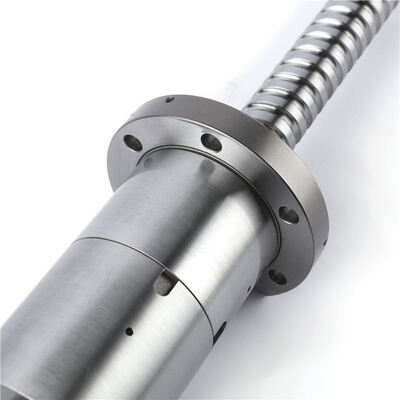

Full stroke precision grinding ensures smooth operation the ground ball screw remains undeformed under heavy loads

Full stroke precision grinding ensures smooth operation the ground ball screw remains undeformed under heavy loads

This ground ball screw boasts high precision, zero backlash, wear resistance, and stable performance with no decrease in accuracy over long-term use, making it a preferred component in high-end precision transmission applications. Utilizing full-stroke CNC precision grinding technology, the product achieves a precision of C1–C5, with positioning and repeatability accurate to the micron level, effectively ensuring stable and reliable equipment operation. Zero backlash transmission is achieved through precision machining, eliminating backlash errors at the source, resulting in more precise start-stop and reversing, and significantly improving equipment processing and positioning quality.

The screw features a high-gloss surface, regular tooth profile, low frictional loss, smooth and stable operation, low temperature rise, and low noise. It combines excellent wear resistance and high rigidity, maintaining stable performance even under high-speed, heavy-load, and long-term continuous operation. Unlike ordinary transmission components, this product is not easily deformed or loses precision during long-term use, maintaining its factory-grade precision performance and effectively reducing maintenance frequency and replacement costs.

It is widely compatible with high-end equipment such as CNC machine tools, precision instruments, automated equipment, and industrial robots. With its stable and reliable precision transmission performance, it provides equipment with long-lasting, efficient, and precise power transmission. It is an ideal choice for high-end equipment manufacturing and automation upgrades that pursue high quality, high stability, and long service life.

公稱型號 Model no.	軸徑d	導程I	珠徑	螺帽尺寸(Nut size)									Dynamic Rating Load (Ca)	Static Rating Load (Coa)
				D	A	B	L	W	H	X	Q	n
DFUR1604-3	16	4	2.381	28	48	10	80	38	40	5	M6×1	1×3	488	940
DFUR1605-4		5	3.175	28	48	10	100	38	40	5	M6×1	1×4	885	1525
DFUR1610-3		10	3.175	28	48	10	118	38	40	5	M6×1	1×3	716	1232
DFUR2004-3	20	4	2.381	36	58	10	80	47	44	6.6	M6×1	1×3	541	1187
DFUR2005-4		5	3.175	36	58	10	101	47	44	6.6	M6×1	1×4	999	1994
DFUR2504-3	25	4	2.381	40	62	10	80	51	48	6.6	M6×1	1×3	605	1534
DFUR2505-4		5	3.175	40	62	10	101	51	48	6.6	M6×1	1×4	1119	2581
DFUR2510-4		10	4.762	40	62	12	145	51	48	6.6	M6×1	1×4	1927	2771
DFUR3205-4	32	5	3.175	50	80	12	102	65	62	6	M6×1	1×4	1264	3402
DFUR3210-4		10	6.35	50	80	12	162	65	62	9	M6×1	1×4	3092	6101
DFUR4005-4	40	5	3.175	63	93	14	105	78	70	9	M8×1	1×4	1407	4341
DFUR4010-4		10	6.35	63	93	14	165	78	70	6	M8×1	1×4	3480	7979
DFUR5010-4	50	10	6.35	75	110	16	171	93	85	11	M8×1	1×4	3898	10325
DFUR6310-4	63	10	6.35	90	125	18	182	108	95	11	M8×1	1×4	4401	13611
DFUR6320-4		20	9.525	95	135	20	290	115	100	13.5	M8×1	1×4	7404	19008
DFUR8010-4	80	10	6.35	105	145	20	182	125	110	13.5	M8×1	1×4	4900	17366
DFUR8020-4		20	9.525	125	165	25	295	145	130	13.5	M8×1	1×4	8403	25345
