Features

Specifications

Material: Customization Supported

Accuracy Grade: C3,C5,C7,C10

Nut Raw Material: SCM420H

Nut Type: SFU, SFI, SFS, SFY, SFNU,SFNI, SFA, SFDC, SFK, SCI. DFU, DFI, DFS, DFDC

Maximum Original Length:: 100-7500MM

Diameter: 8-80mm

Basic Infomation

Place of Origin: CHINA

Brand Name: SHAC

Certification: CE/ISO

Model Number: DFU

Payment & Shipping Terms

Packaging Details: Cardboard box with foam

Delivery Time: 5-40

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: Globally available

Gallery

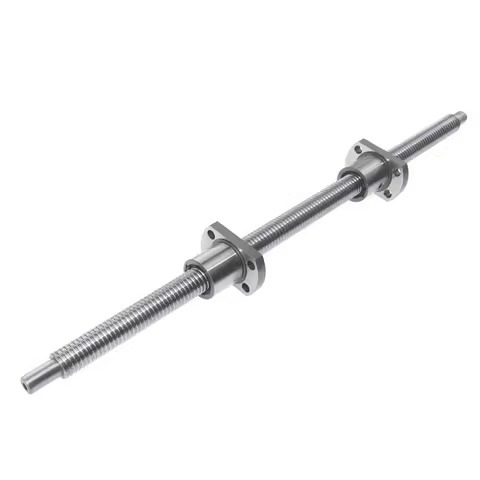

Corrosion-resistant ball screws for multi-axis robot replacement

Product Description

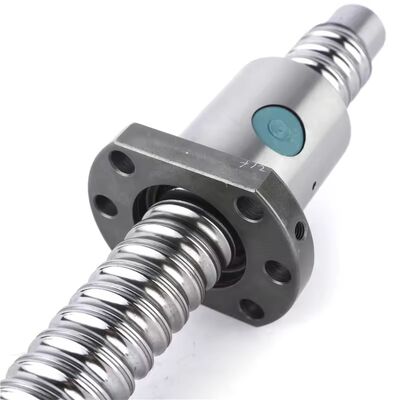

Corrosion-resistant ball screws for multi-axis robot replacement

Designed specifically for precise positioning of industrial robot joint drives, Z-axis lifting, and end effectors, this product is compatible with all models of six-axis, SCARA, and collaborative robots.

Zero-threshold import substitution: All dimensions are fully compatible with major international brands. Shaft end tolerances, lead accuracy, and installation benchmarks are strictly aligned, requiring no secondary processing or readjustment of robot motion parameters; direct in-situ replacement is possible. Thousands of products are kept in stock, ensuring next-day shipping for orders placed today, completely eliminating the 6-12 week lead times of imported ball screws and reducing costs by over 60%.

Robot-level motion precision: Utilizing ultra-precision ground raceways and high-precision steel balls, it ensures smooth, creep-free operation with a stable repeatability of ±0.002mm, guaranteeing consistent trajectory during high-speed robot gripping and precision assembly. The optimized preload structure provides excellent shock and vibration resistance, maintaining long-term accuracy stability even under frequent robot start-stop and variable load conditions, with a service life comparable to imported products.

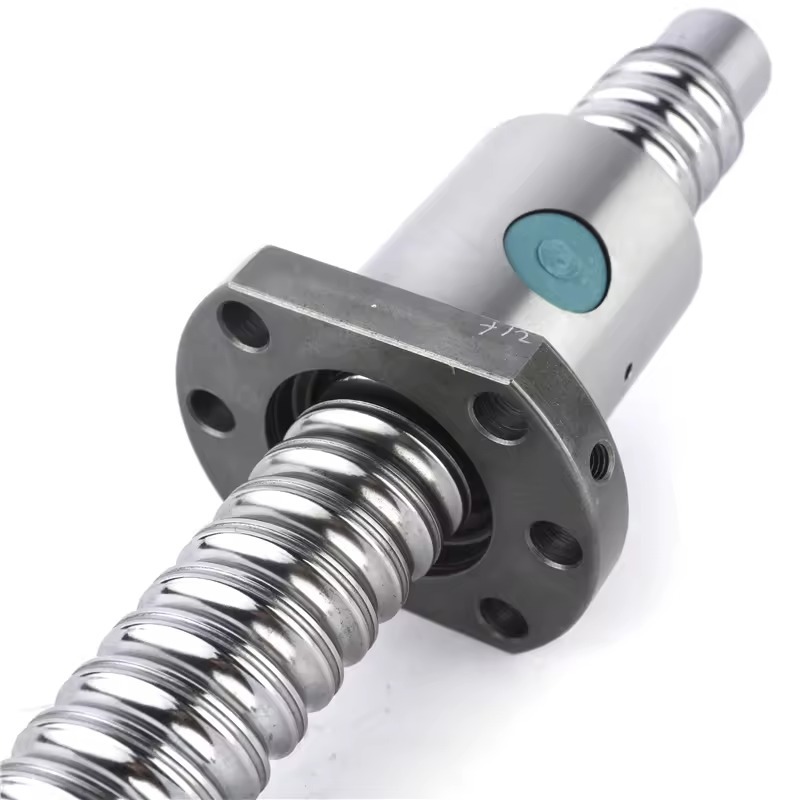

Corrosion-resistant ball screws for multi-axis rob</p>
<table style= 公稱型號
Model no. 軸徑d 導程I 珠徑螺帽尺寸(Nut size) Dynamic Rating Load
(Ca) Static Rating
Load
(Coa) D A B L W H X Q n DFUR1604-3 16 4 2.381 28 48 10 80 38 40 5 M6×1 1×3 488 940 DFUR1605-4 5 3.175 28 48 10 100 38 40 5 M6×1 1×4 885 1525 DFUR1610-3 10 3.175 28 48 10 118 38 40 5 M6×1 1×3 716 1232 DFUR2004-3 20 4 2.381 36 58 10 80 47 44 6.6 M6×1 1×3 541 1187 DFUR2005-4 5 3.175 36 58 10 101 47 44 6.6 M6×1 1×4 999 1994 DFUR2504-3 25 4 2.381 40 62 10 80 51 48 6.6 M6×1 1×3 605 1534 DFUR2505-4 5 3.175 40 62 10 101 51 48 6.6 M6×1 1×4 1119 2581 DFUR2510-4 10 4.762 40 62 12 145 51 48 6.6 M6×1 1×4 1927 2771 DFUR3205-4 32 5 3.175 50 80 12 102 65 62 6 M6×1 1×4 1264 3402 DFUR3210-4 10 6.35 50 80 12 162 65 62 9 M6×1 1×4 3092 6101 DFUR4005-4 40 5 3.175 63 93 14 105 78 70 9 M8×1 1×4 1407 4341 DFUR4010-4 10 6.35 63 93 14 165 78 70 6 M8×1 1×4 3480 7979 DFUR5010-4 50 10 6.35 75 110 16 171 93 85 11 M8×1 1×4 3898 10325 DFUR6310-4 63 10 6.35 90 125 18 182 108 95 11 M8×1 1×4 4401 13611 DFUR6320-4 20 9.525 95 135 20 290 115 100 13.5 M8×1 1×4 7404 19008 DFUR8010-4 80 10 6.35 105 145 20 182 125 110 13.5 M8×1 1×4 4900 17366 DFUR8020-4 20 9.525 125 165 25 295 145 130 13.5 M8×1 1×4 8403 25345
