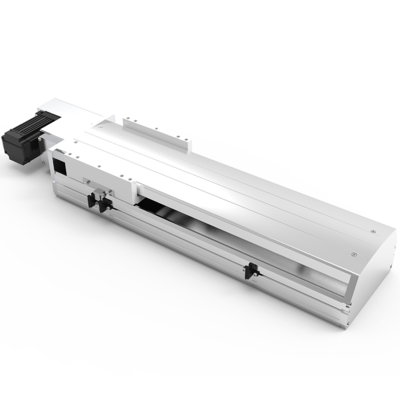

High Load Ultra High Speed PTB Timing Belt Stage Strong Thrust

High Load Ultra High Speed PTB Timing Belt Stage Strong Thrust

Typical Application Scenarios

• Logistics sorting centers: Drives sorting carts at a speed of 2311mm/s, easily handles full-box goods with a 200kg load capacity, and ensures rapid switching of sorting baffles with 1126N thrust, increasing hourly parcel processing from 2,500 to 8,000 units.
• Automotive parts assembly: In engine block handling stations, the dual-rail high-rigidity design combined with 200kg load capacity stably carries the cylinder block for cross-station transfer from machining to assembly, with ±0.1mm repeat positioning accuracy meeting bolt hole alignment requirements.
• Electronic component placement: In FPC (Flexible Printed Circuit) board pressing equipment, the 1126N strong thrust and high stability of the 45mm wide belt achieve 0.1mm-level press-fit precision, solving issues of insufficient pressing and misalignment caused by insufficient thrust in traditional stages.

Core Technical Advantages

1. High-rigidity loading, easily handling 200kg: Integral design of double-row high-rigidity linear slides and thickened aluminum alloy base plates, with ultra-precision ground contact surfaces between slides and rails. Combined with 45mm wide PM-type timing belts, it achieves 200kg horizontal dynamic load, with 0.1mm/m low deflection ensuring stable operation.
2. Ultra-high speed, 3x efficiency improvement: High-tension timing belts and direct-drive low-inertia servo motors enable 97% transmission efficiency, with a top speed of 2311mm/s—30% faster than conventional stages. Efficiency is tripled in scenarios like logistics sorting.
3. Full stroke coverage, adaptable to multiple scenarios: Modular guide rail splicing technology supports 50-4000mm strokes, adapting to both short-stroke precision operations and long-distance transportation needs.

4. ※ Basic specifications		PTB17
   Specification	Repeatable positioning accuracy(mm)		±0.08
   	Lead  (mm)		40
   	Max speed(mm/s)		2000
   	Max load(kg)	Horizontal	45
   		Vertical	-
   	Rated thrust (N)		204
   	Standard stroke(mm)		20-3050mm/50 interval
   Component	AC servo motor capacity		400
   	Belt width		30
   	High rigidity linear slider		W20×H15
   	Origin sensor   Plug		PM-T45(NPN)

5. Type	Repeatable positioning accuracy (mm)	Lead (mm)	Reduction ratio	Max speed (mm/s)	Max speed (kg)		Rated thrust (N)	Standard stroke (mm)	AC servo motor capacity	Belt width	High rigidity  linear slider	Origin sensor Plug
   					Horizontal	Vertical
   PTB14	-	40	-	2000	25	-	100	20-3050mm/50 interval	200	25	W15×H12.5	PM-T45(NPN)
   PTB17	±0.08	40	-	2000	45	-	204	20-3050mm/50 interval	400	30	W20×H15	PM-T45(NPN)
   PTB22	±0.08	40	-	2000	85	-	367	20-3500mm/50 interval	750	45	W23×H18	PM-T45(NPN)
   PTB27	±0.08	208	3:1	2311	22	———	367	50-4000mm/50  interval	1000	45	W28×H26	PM-T45(NPN)
   			5:1	1386	60		613
   			7:1	990	110		858
   			10:1	693	200		1226
