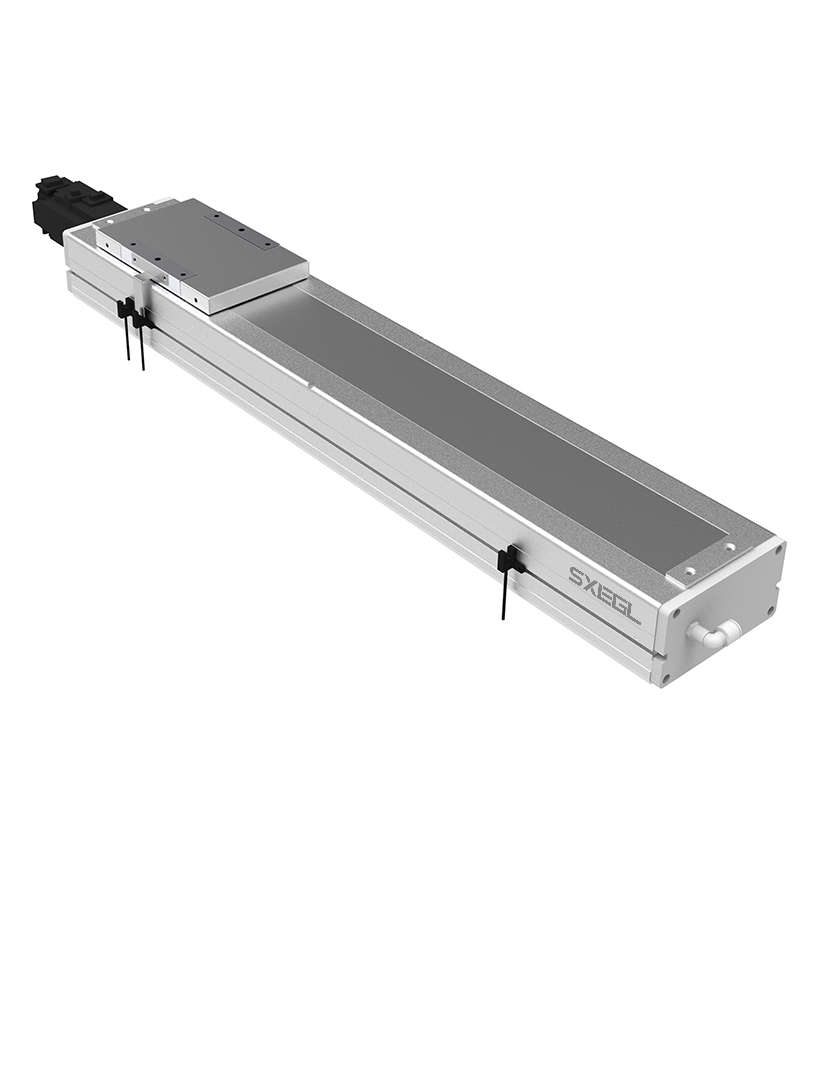

Name: Dust proof Long lasting PCH Series Screw Modules High Precision
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: PCH22
Price: 950.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Standard Motor Power(W): 750W

Repeatable Positioning Accuracy(mm): ±0.01

Screw Diameter(mm): 25 Ball Screw (C7)

Max Stroke (mm): 100~1500(50 Interval)

Basic Infomation

Place of Origin: CHINA

Brand Name: SXEGL

Certification: CE/FCC/ROSH/EPA/ISO

Model Number: PCH22

Payment & Shipping Terms

Packaging Details: Foam and carton

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Gallery

Dust proof Long lasting PCH Series Screw Modules High Precision

Product Description

Dust proof Long lasting PCH Series Screw Modules High Precision

The PCH series fully enclosed screw modules are precision linear 传动 components engineered for harsh environments. Integrating a fully enclosed structure and ball screw technology, they offer high precision, load capacity, and longevity, ideal for high-cleanliness fields like semiconductor manufacturing, medical devices, and food processing. Their specialized sealing and materials block dust, oil, and debris, ensuring stable operation in Class 10 cleanrooms.

Core Advantages
(1) Fully Enclosed Protection: Features a triple seal (stainless steel cover, labyrinth profile, optional bellows), achieving IP54 rating and SGS certification for long-term cleanroom use. Low particle generation, with optional suction nozzles to expel operational particles, meeting semiconductor/medical cleanliness needs.

(2) High Precision & Stability: Equipped with a C7 ball screw (C3 optional) for ±0.01mm repeat positioning accuracy. High-rigidity CNC-machined aluminum profiles with dual rails and four sliders support 55kg horizontal/side load, 16kg vertical load, 1050mm max stroke, and 1000mm/s max speed.

(3) Longevity & Low Maintenance: Wear-resistant electrophoretic profiles, high-hardness rails/screws, and centralized lubrication ensure over 10,000 hours of service. Modular, detachable covers ease maintenance; key components (e.g., Hiwin/TBI parts) reduce failure rates.

Application Fields
Semiconductor/electronics: Wafer handling, chip packaging, SMT placement.
Medical/biotech: Device assembly, lab automation, pharmaceutical filling.
Food/packaging: High-precision conveying, aseptic packaging positioning.
Laser processing/inspection: Precision positioning for welding/cutting and visual inspection.

※ Basic specifications		PCH22
Specification	Standard motor power(W)		750W
	Repeatable positioning accuracy(mm)		±0.01
	Screw diameter(mm)		25 ball screw (C7)
	Max speed(mm/s)		250	500	1250
	Rated thrust(N)		2565	1281	640
	Max load (kg)	Horizontal	150	150	105
		Vertical	55	45	20
	Max stroke (mm)		100~1500(50 interval)
	Screw specification		2505	2510	2525

Type	Standard motor power(W)	Repeatable positioning accuracy(mm)	Screw specification	Max speed (mm/s)	Rated thrust (N)	Max load (kg)		Max stroke(mm)	Screw specification	Screw grade	High rigidity linear slider	Coupling (diameter- height-D1-D2)	Photoelectric switch
						Horizontal	Vertical
PCH14	400W	±0.01	1605	250	1388	95	27	1050	1605/1610 /1616/1620 (Slenderness ratio1:62.5)	C7 rolling	W15×H12.5	34-27-10-14	PM-T45(NPN)
			1610	500	694	75	18
			1616	800	433	48	10
			1620	1000	347	35	7
PCH17	750W	±0.01	2005	250	1388	120	40	1250	2005/2010 /2020/2040 (Slenderness ratio1:70)	C7 rolling	W20×H15	44-34-12-19	PM-T45(NPN)
			2010	500	694	110	30
			2020	1000	347	75	14
			2040	2000	174	22	7
PCH22	750W	±0.01	25 ball screw (C7)	250	2565	150	55	100~1500(50 interval)	2505	-	-	-	-
				500	1281	150	45		2510
				1250	640	105	20		2525
