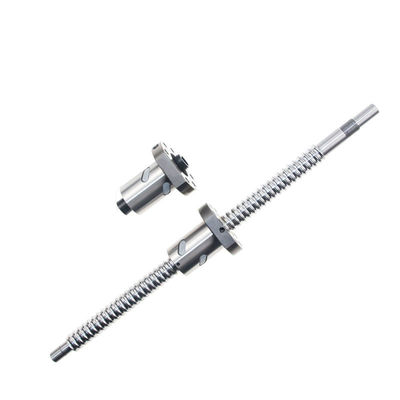

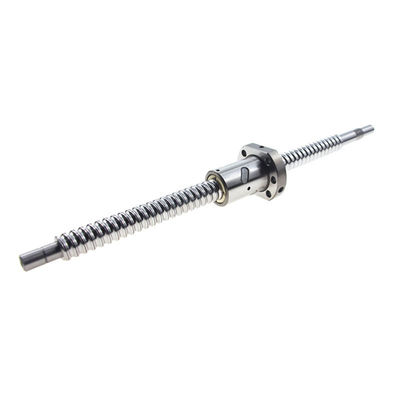

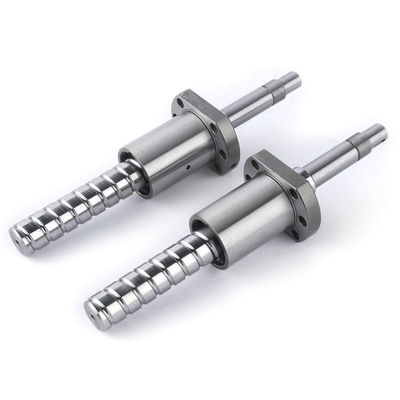

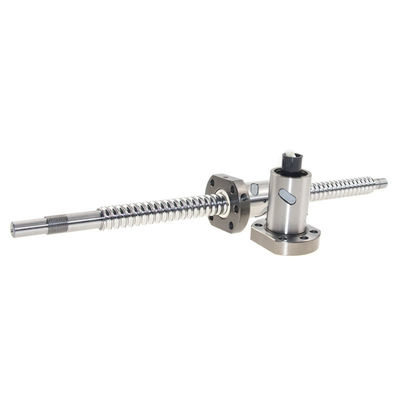

Customized High Speed Ball Screw Heavy Load CNC Ball Screw Low Noise Compatible SFS

High Speed Heavy Load Ground Ball Screw CNC Compatible SFS

Four Core Advantages

1. Micron-Level Precision Assurance

• Adopts JIS C0-C5 grade grinding processes, controlling lead accuracy within ±0.01mm/m to meet ultra-precise scenarios like semiconductor wafer inspection (repeat positioning ±0.005mm) and optical machining.
• Gothic arch groove structure with preload technology enhances rigidity by 30%, adapting to high-stability requirements for high-speed cutting and precision assembly.

2. Balanced High-Speed & Heavy-Load Performance

• Optimized recirculation system design achieves Dm-N values ≥220,000, supporting speeds up to 5,000rpm for rapid feeding in machining centers.
• Dynamic load capacity ranges from 5kN to 125 tons, with helical return structures capable of withstanding high acceleration/deceleration, suitable for heavy-load applications like powder presses and large machine tools.

3. Low-Noise & Long-Life Operation

• Ball retainer technology reduces noise by 5-7dB (noise ≤65dB), ideal for 静音 (quiet) environments such as medical devices and cleanrooms.
• Silicon nitride ceramic balls and carbon-nitrogen co-permeation processes enhance wear resistance (over 6 million cycles), while constant-temperature cooling design mitigates thermal deformation, ensuring long-term precision stability.

4. Modular Customization Capability

• Offers multi-specifications including flange/cylindrical nuts and IP54/IP65 protection, adapting to dusty and wet environments.
• Supports miniaturization (3mm diameter), ultra-long stroke (10 meters), and special coatings (ceramic/electrolytic polishing) to meet niche demands in semiconductors, robotics, and other fields.
