High Precision Guide Rod Cylinder

Guide Rod Cylinder Grey

Guided Cylinder 30mm Stroke

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: EG

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

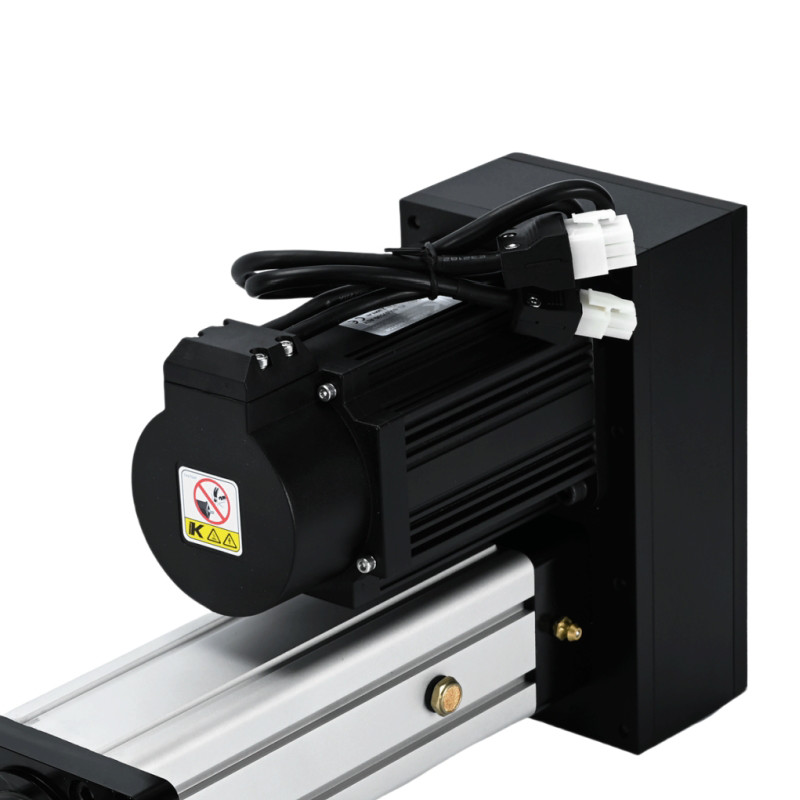

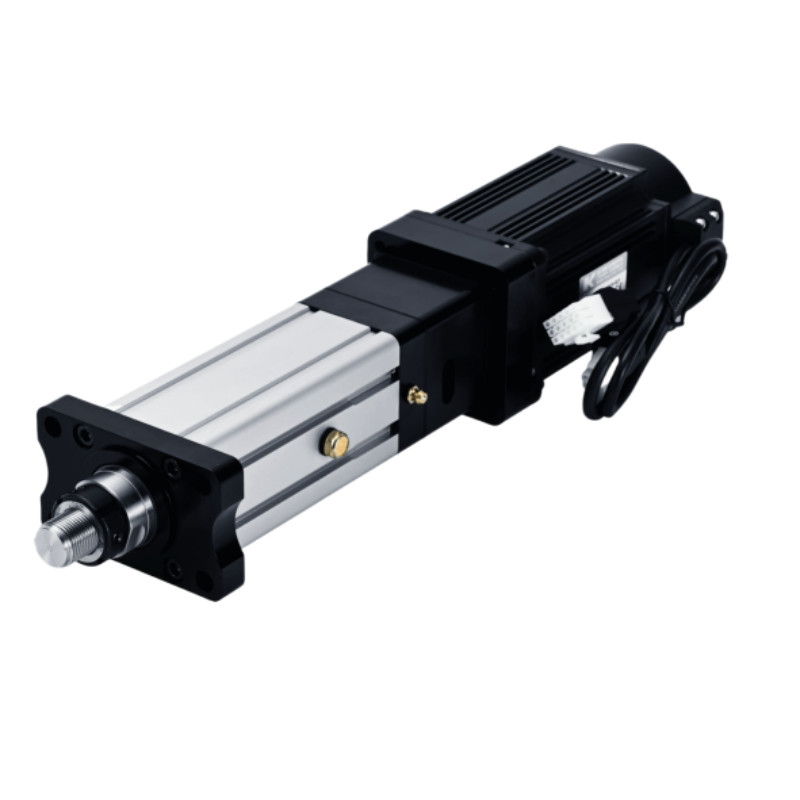

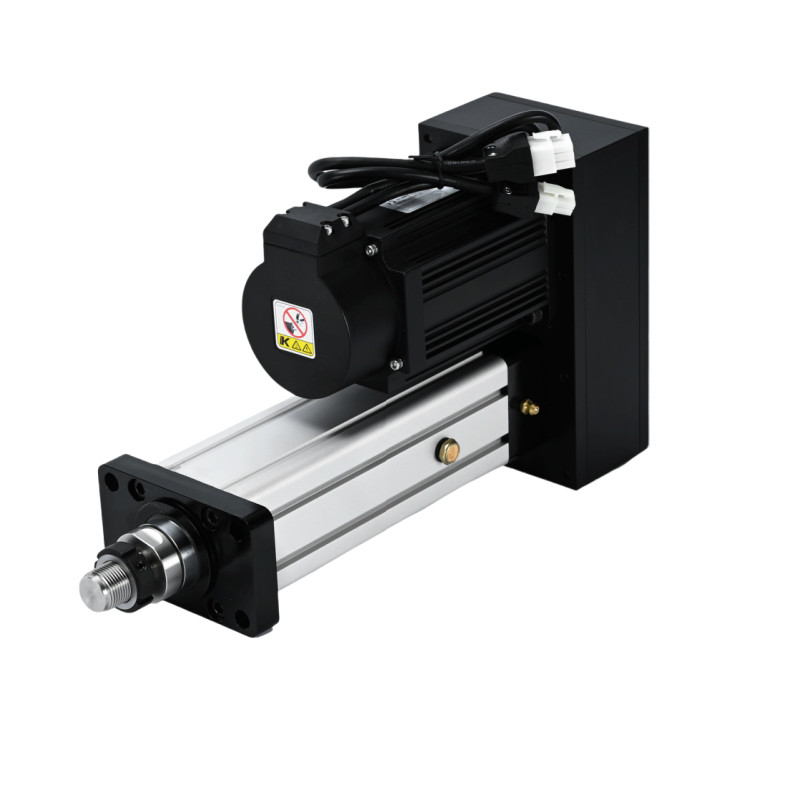

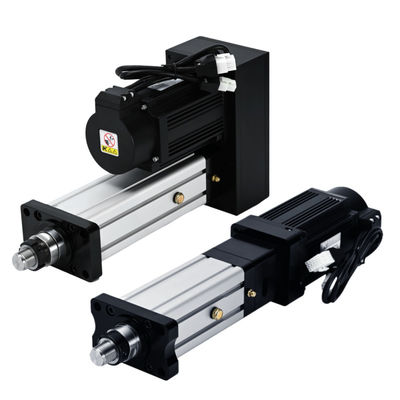

High Precision Guide Rod Cylinder Grey Guided Cylinder 30mm 50mm 100mm Stroke

Product Description

High Precision Energy Efficient Electric Cylinders Eco Friendly Low Maintenance

SEXGL High-Precision Electric Cylinders: Energy-Efficient Eco-Friendly Solutions with Minimal Maintenance for Global Automation

SEXGL electric cylinders deliver unparalleled motion control for sustainable industrial operations, trusted by BYD (EV battery assembly) and BOE (cleanroom robotics) across North America, Europe, Southeast Asia, and South America. Engineered to replace hydraulic/pneumatic systems, our electric cylinders combine precision positioning with reduced environmental impact, aligning with global carbon-neutral initiatives.

High Precision Guide Rod Cylinder Grey Guided Cylinder 30mm 50mm 100mm Stroke 0

EG16
EG16	— 50 —	P02 - D -		S —		28 —	S1
Model	Stroke	Lead Motor installation		Motor brand		Motor power	Magnetic reed switch
	30mm	D: Direct installation		S: Stepper 28			S3:Switch*3
	50mm	P:Indirect installation					Sn: Switch*n
	100mm
Parameters

Standard motor output (W)			Stepper 28
Rated torque (Nm)			0.09

Screw grade			C7 Rolling 0802 (Slenderness ratio 1:50)
Repeatable positioning accuracy (mm)			±0.02
Screw specification			802 805

Max thrust (N)			220 88
Max speed (mm/s)			40 100

Stroke (mm)			30.50.100
Max load (KG)	Horizontal		5
	Vertical		5

Piston rod rotation angle			±0.7 degree
The body weight of Omm stroke (KG)			1.2

Weight added per 10mm (KG)			0.09
The component weight of direct installation motor(KG)			0.08
The component weight of indirect installation motor(KG)			0.15

Magnetic switch			CS1-H-1M		Contact type reed switch,wire length 1m
			CS1-HN-3M		Contactless transistor NPN type,wire length 3m

			CS1-HP-3M		Contactless transistor PNP type,wire length 3m

High Precision Guide Rod Cylinder Grey Guided Cylinder 30mm 50mm 100mm Stroke 1
