Name: Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: LGD6/8/12/16
Price: 26.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Double Axis Roller Linear Guide

Material: Aluminum

Application Areas: CNC Machining Parts

Model Number: LGD

Aookucation: CNC Machining Parts

Color: Silver Gray

Customize: Support

Highlight:

Aluminum Double Axis Roller Linear Guide

Customized Linear Roller Guideways

Linear Roller Guideways High Precision

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: LGD6/8/12/16

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

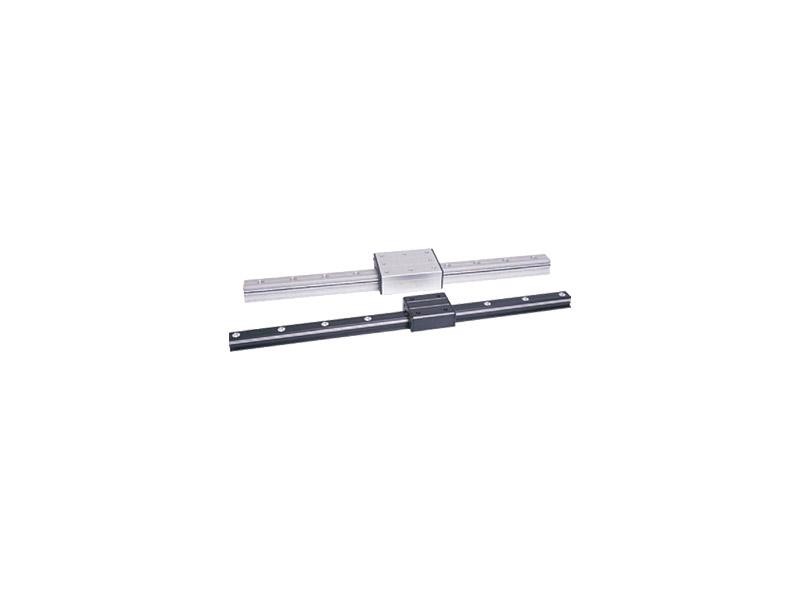

Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision

Product Description

High Precision Ball Slider Linear Guides With Double Axis Guide Rail

SEXGL specializes in manufacturing high-performance linear guides that redefine reliability in industrial automation. Trusted by global partners like BYD (electric vehicle production) and BOE (display manufacturing), our linear motion systems power operations across North America, Europe, Southeast Asia, South America, and South Korea.

Characteristics

Precise and smooth:Using a linear guide rail as a guide, it is not easy to slide and has high positioning accuracy.

Premium Quality:Durable and corrosion-resistant, thickened material is not easily damaged, sturdy and durable, precision carving, high precision, strong steel

Quality craftsmanship:Improve product accuracy and service life, improve efficiency, high quality and durability, professional testing, smooth and wear-resistant so you can use it with confidence

High-quality materials:High-quality materials resist delay and improve cost savings

Saber structure:Carefully selected materials, smooth surface, low friction, high precision, low noise and not easy to use, long service life.

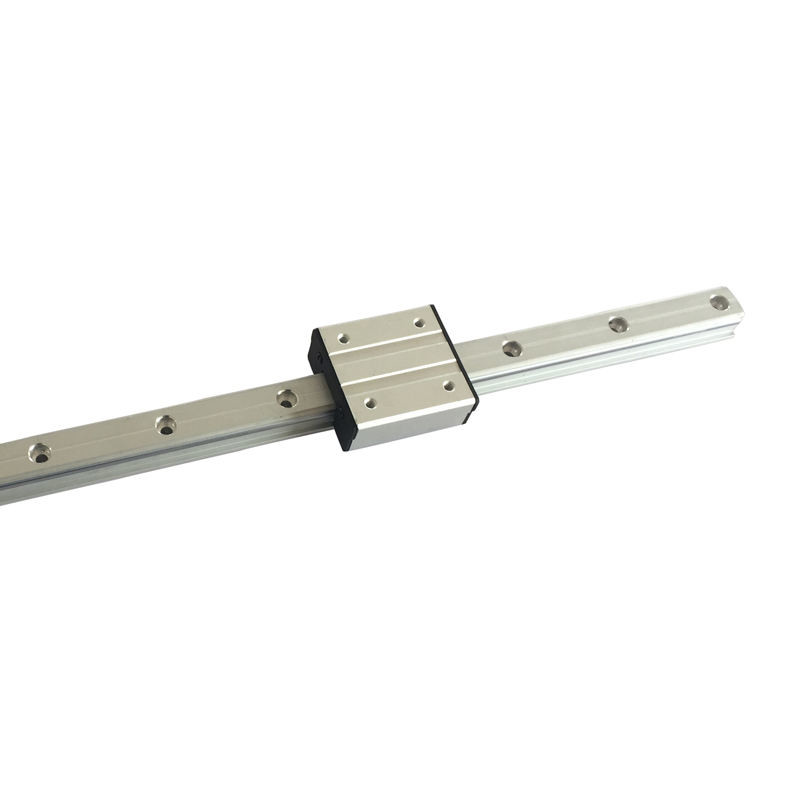

Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision 0

Type	H	W	WR	H1	T	B	L	C	L1	C1	M	P	D	h	d	HR
LGD/6	29	60	26	26	12	38	60	40	100	75	M5*3	60	9.5	6.5	5.5	17.8
LGD/8	33	67	30	27.5	14	45	70	45	100	75	M6*12	80	9.5	8	5.5	21
LGD/12	39	80	36	35	12	54	100	76	140	116	M6*12	100	10.5	8	6.5	25.5
LGD/16	50	120	50	45	14	90	150	120	190	150	M8*14	80	14	10	8.5	33

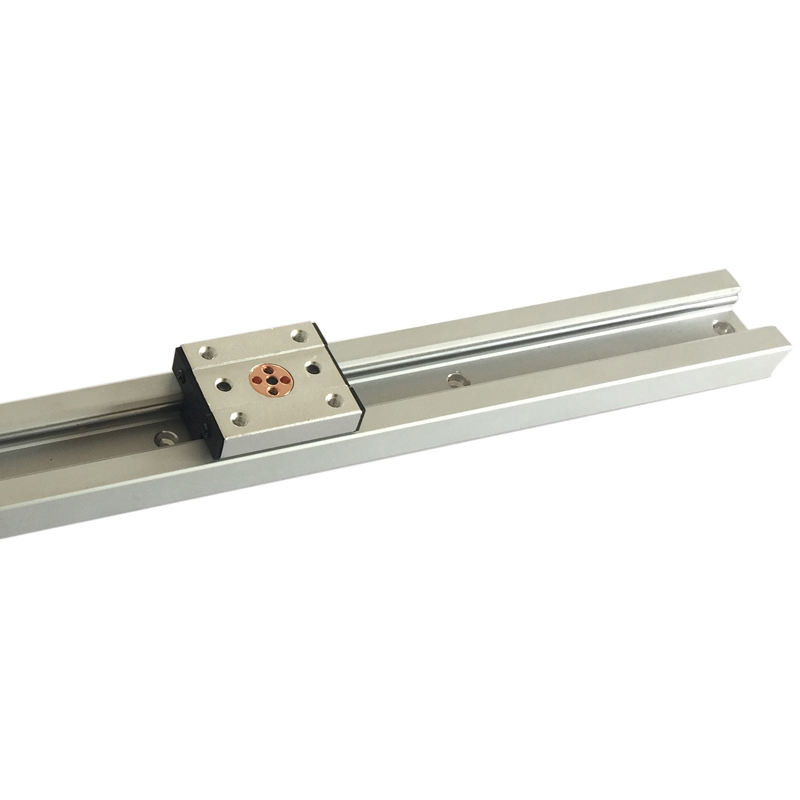

Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision 2

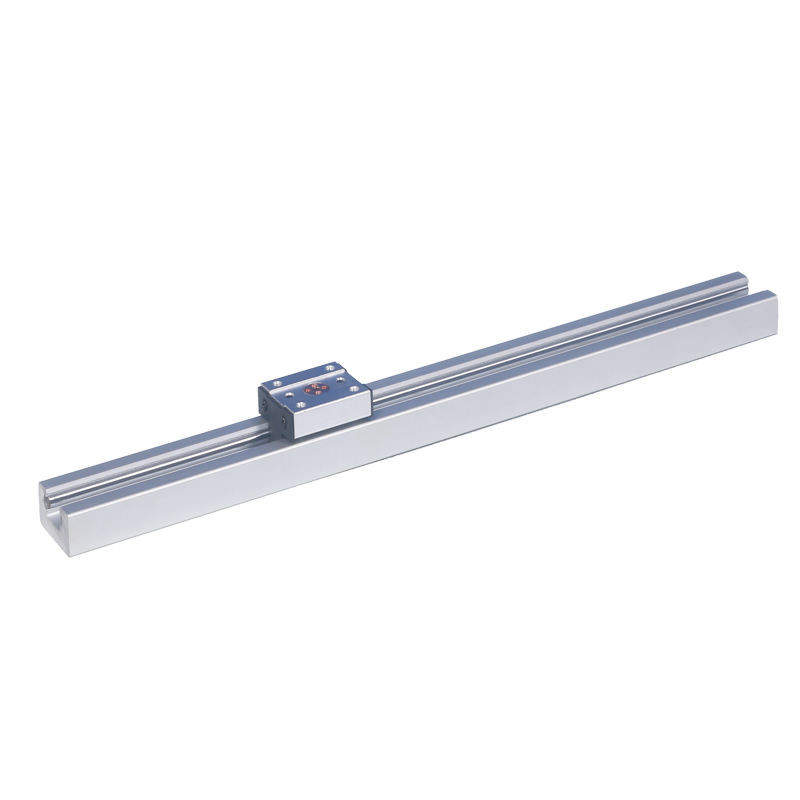

Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision 3

Aluminum Double Axis Roller Linear Guide Customized Linear Roller Guideways High Precision 4

Type	Size(mm)
Type	W	G	A	B	T	M	J	K	S2	C	S1	N	P
SBR12S	41 28		9 30		4 39		28	26 φ4.0		22	M5 100
SBR16S	45	33	9	40	5	45	32	30	φ5.5	30	M5		150
SBR20S	48	39	11	45	5	50	35	35	φ5.5	30	M6	150
SBR25S	60	47	14	55	6	65	40	40	φ6.6	35	M6		200
SBR30S	70	56	15	60	7	70	50	50	φ6.6	40	M8		200
SBR35S	80	63	18	65	8	80	55	55	φ9	45	M8		200
SBR40S	90	72	20	75	9	90	65	65	φ9	55	M10		200
SBR50S	120	90	25	95	11	110	94	80	φ11	70	M10		200

Support Designation	Shaft Dimensions	Size Dimensions(mm)											Weight (kg/m)
Support Designation	Shaft Dimensions	E	h	B	H	T	F	X	Y	C	S1	S2 d1xd2X1	Weight (kg/m)
SBR10 φ10 16			21 30 36 4 12.5					4.7 12 22 φ4.5 5X9X5 1.5
SBR12	φ12	16	22	30	39	4	12.5	4.7	12	22	φ4.5	5X9X5	1.7
SBR13	φ13	16	22.5	30	39.5	4	12.5	4.7	12	22	φ4.5	5X9X5	1.8
SBR16	φ16	20	25	40	45	5	18.5	8	11.7	30	φ5.5	5.5X9.5X5.4	2.58
SBR20	φ20	22.5	27	45	50	5	19	8	10 30		φ5.5	5.5X9.5X5.4 3.58
SBR25	φ25	27.5	33	55	60	6	21.5	8	12	35	φ6.6	6.6X11×6.5	5.4
SBR30	φ30	30	37	60	70	7	26.5	10.3	13	40	φ6.6	6.6X11×6.5	7.5
SBR35	φ35	32.5	43	65	80	8	28	13	15.5	45	φ9	9X14X8.6	10
SBR40	φ40	37.5	48	75	90	9	38	15.5	17	55	φ9	9X14X8.6	13
SBR50	φ50	47.5	62	95	115	11	45	20	21	70	φ11	11X17.5X10.8	21
