Name: Double Axis Linear Roller Rail SGR SGB Linear Guide Rail High Efficiency Low Noise
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: SBR12/16/20/25/30/35/40/50S
Price: 26.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Linear Roller Rail

Material: Aluminum

Application Areas: CNC Machining Parts

Model Number: SGR/SGB

Color: Silver Gray

Customize: Support

Highlight:

Double Axis Linear Roller Rail

Linear Roller Rail SGR

SGB Linear Guide Rail

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: SBR12/16/20/25/30/35/40/50S

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

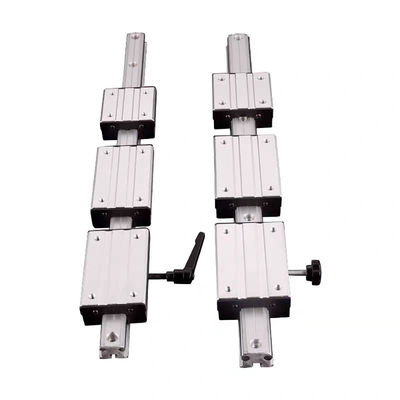

Double Axis Linear Roller Rail SGR SGB Linear Guide Rail High Efficiency Low Noise

Product Description

High Efficiency Low Noise Double Linear Guides Quality Assured

SEXGL specializes in manufacturing high-performance linear guides that redefine reliability in industrial automation. Trusted by global partners like BYD (electric vehicle production) and BOE (display manufacturing), our linear motion systems power operations across North America, Europe, Southeast Asia, South America, and South Korea.

Characteristics

Dual-axis coordination for enhanced rigidity: Adopts a parallel dual-axis integrated structure.

Low-friction silent operation with long-lasting performance: The guide rail surface undergoes hardened treatment, paired with self-lubricating silent sliders.

Modular design for easy installation: Features standardized rail spacing and mounting holes compatible with leading industry brands, supporting plug-and-play integration.

With core advantages of "high precision, high load capacity, and low maintenance," the dual-axis linear guides continuously empower sectors such as smart manufacturing and precision machining, providing a reliable guarantee for the stable operation of high-end equipment.

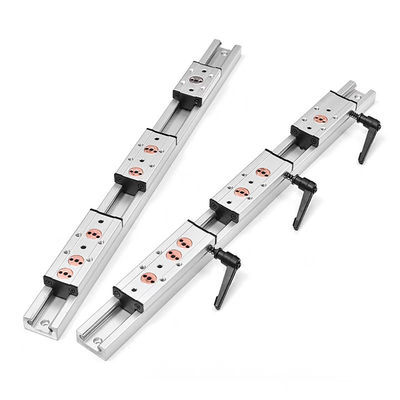

Double Axis Linear Roller Rail SGR SGB Linear Guide Rail High Efficiency Low Noise 0

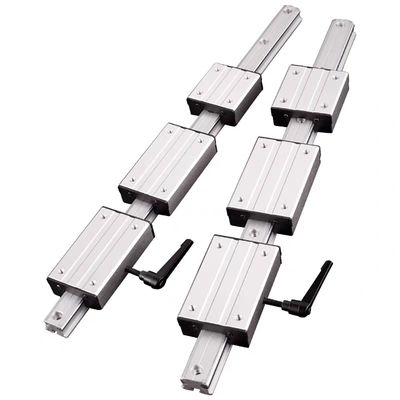

Double Axis Linear Roller Rail SGR SGB Linear Guide Rail High Efficiency Low Noise 1

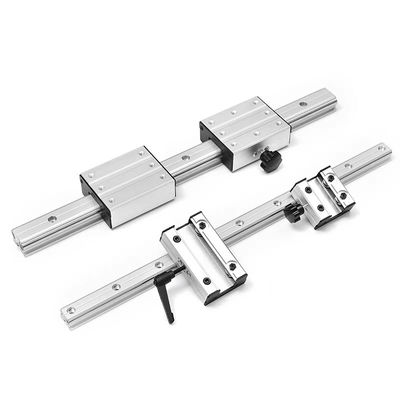

Double Axis Linear Roller Rail SGR SGB Linear Guide Rail High Efficiency Low Noise 2

Type	Size(mm)
Type	W	G	A	B	T	M	J	K	S2	C	S1	N	P
SBR12S	41 28		9 30		4 39		28	26 φ4.0		22	M5 100
SBR16S	45	33	9	40	5	45	32	30	φ5.5	30	M5		150
SBR20S	48	39	11	45	5	50	35	35	φ5.5	30	M6	150
SBR25S	60	47	14	55	6	65	40	40	φ6.6	35	M6		200
SBR30S	70	56	15	60	7	70	50	50	φ6.6	40	M8		200
SBR35S	80	63	18	65	8	80	55	55	φ9	45	M8		200
SBR40S	90	72	20	75	9	90	65	65	φ9	55	M10		200
SBR50S	120	90	25	95	11	110	94	80	φ11	70	M10		200

Support Designation	Shaft Dimensions	Size Dimensions(mm)											Weight (kg/m)
Support Designation	Shaft Dimensions	E	h	B	H	T	F	X	Y	C	S1	S2 d1xd2X1	Weight (kg/m)
SBR10 φ10 16			21 30 36 4 12.5					4.7 12 22 φ4.5 5X9X5 1.5
SBR12	φ12	16	22	30	39	4	12.5	4.7	12	22	φ4.5	5X9X5	1.7
SBR13	φ13	16	22.5	30	39.5	4	12.5	4.7	12	22	φ4.5	5X9X5	1.8
SBR16	φ16	20	25	40	45	5	18.5	8	11.7	30	φ5.5	5.5X9.5X5.4	2.58
SBR20	φ20	22.5	27	45	50	5	19	8	10 30		φ5.5	5.5X9.5X5.4 3.58
SBR25	φ25	27.5	33	55	60	6	21.5	8	12	35	φ6.6	6.6X11×6.5	5.4
SBR30	φ30	30	37	60	70	7	26.5	10.3	13	40	φ6.6	6.6X11×6.5	7.5
SBR35	φ35	32.5	43	65	80	8	28	13	15.5	45	φ9	9X14X8.6	10
SBR40	φ40	37.5	48	75	90	9	38	15.5	17	55	φ9	9X14X8.6	13
SBR50	φ50	47.5	62	95	115	11	45	20	21	70	φ11	11X17.5X10.8	21
