Home /Products/Linear Guide Slider/High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance

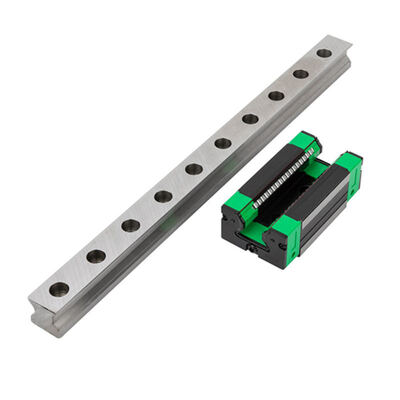

High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance

1
MOQ
$6.9-$89
Price
High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance
Features Gallery Product Description Chat Now
Features
Specifications
Product Name:: Linear Guide Block
Material:: Bearing Steel
Core Components:: Bearing
Preload Code:: ZO,ZA,ZB
Applicable Industries:: Machinery
Performance:: Low Noise, Very Smooth And Long Life
Highlight:

High Rigidity Linear Guide Block

,

Wear Resistance Linear Guide Block

,

Low Noise Linear Guide Slider
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: GHH15/20/25/30/35/45/55/65 CA/HA
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

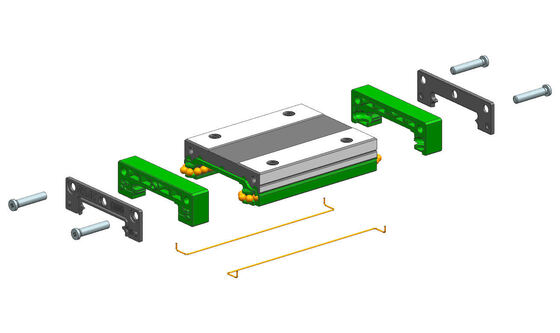

Product Description
CNC Professional Solution: GHH Sliders - High Rigidity and Wear Resistance
This precision linear slider is made of alloy steel quenched material, with a positioning accuracy of ±0.002mm, compatible with guide rails of 15-45mm specifications. Thanks to its four-way equal rigidity design, it widely empowers precision transmission needs in multiple industries.
In the field of CNC machine tools, it bears the high-frequency reciprocating movement of the worktable, resists cutting vibration and impact force, controls backlash to ≤0.001mm, and ensures micron-level positioning accuracy for milling and drilling. In industrial automation scenarios, it is suitable for robotic arms and conveyor lines, with an operating speed of up to 3m/s, supporting efficient and continuous operation of equipment.
In the medical device field, its low-noise and smooth performance (operating noise ≤45dB) and sealed protection design make it suitable for diagnostic instruments and surgical equipment, ensuring stable and interference-free movement. In laser equipment and electronic manufacturing, it accurately transmits power and cooperates with the adjustable preload function to meet the needs of high-precision alignment and cutting. It is adaptable to humid, dusty and other complex working conditions, serving as a core component for precision transmission in multiple fields.

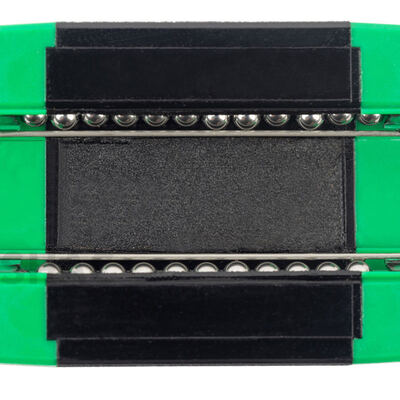

High Rigidity Wear Resistance Linear Guide Block for CNC Machinery with Low Noise Performance 0

Type   Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ | H₃
GHH15CA 28  4.4  9.5  34  26  4  26  39.5  61.1  3.35  4.75  5.5  M4×5 6  8  8
GHH20CA 30  4.3  12  44  32  6  36  50.5  76.5  5  6  12  M5>6 8  6  6
GHH20HA 50  65.2  91.2
GHH25CA 40  5.6  12.5  48  35  6.5  35  58  82  5  6  12  M6×8 8  10  9.5
GHH25HA 50  78.6  102.6
GHH30CA 45  6  16  60  40  10  40  70  98  6.5  5.5  12  M8×0 8.5  10  9
GHH30HA 60  93  121
GHH35CA 55  7.4  18  70  50  10  50  80  112  5.5  6.5  12  M8×2 10.2  16  15
GHH35HA 72  105.8  137.8
GHH45CA 70  9.5  20.5  86  60  13  60  97  137  4.8  8  13  M10×7 16  21  20
GHH45HA 80  128.8  168.8
GHH55CA 80  13  23.5  100  75  12.5  75  117.7  161.7  6  11  13  M12×8 17.5  22  29
GHH55HA 95  155.8  199.8
GHH65CA 90  15  31.5  126  76  25  70  144.2  194.2  6  14  13  M16×20 25  15  15
GHH65HA 120  203.6  253.6
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		   Allowable static moment weight
W. Ha D h d P E (mm) C(KN) CO
(KN)		 MR
KN-m		 Mp
KN-m		 My
KN-m		 Silder
kg		 Rail
kg/m
GHH15CA 15  15  7.5  5.3  4.5  60  20  M4×6 10.59  16.19  0.11  0.09  0.09  0.20  1.42
GHH20CA 20  17.5  9.5  8.5  6  60  20  M5×6 17.2  25.6  0.25  0.18  0.18  0.33  2.2
GHH20HA 20.8  33.55  0.32  0.31  0.31  0.41
GHH25CA 23  22  11  9  7  60  20  M6 ×20 25.11  36.42  0.41  0.32  0.32  0.53  3.25
GHH25HA 30.73  48.56  0.55  0.56  0.56  0.71
GHH30CA 28  26  14  12  9  80  20  M8 ×25 34.93  49.58  0.58  0.5  0.5  0.90  4.49
GHH30HA 42.72  66.1  0.8  0.9  0.9  1.20
GHH35CA 34  29  14  12  9  80  20  M8 ×25 48.5  57.6  1.08  0.78  0.78  1.50  6.36
GHH35HA 58.9  89.62  1.34  1.30  1.30  1.96
GHH45CA 45  38  20  17  14  105  22.5  M12×35 75.26  100.2  1.8  1.35  1.35  2.75  10.45
GHH45HA 92.45  130.52  2.52  2.51  2.51  3.65
GHH55CA 53  44  23  20  16  120  30  M14×15 112.33  145.64  3.59  2.5  2.5  4.20  15.12
GHH55HA 136.54  190.28  4.58  4.37  4.37  5.55
GHH65CA 63  53  26  22  18  150  35  M16×50 160.22  210.37  6.45  4.18  4.18  9.25  21.25
GHH65HA 205.36  298.77  9.15  7.15  7.15  12.95
