Home /Products/Linear Guide Slider/Low Noise Wear-Resistant Durable Linear Guide Slider for Precision Machinery

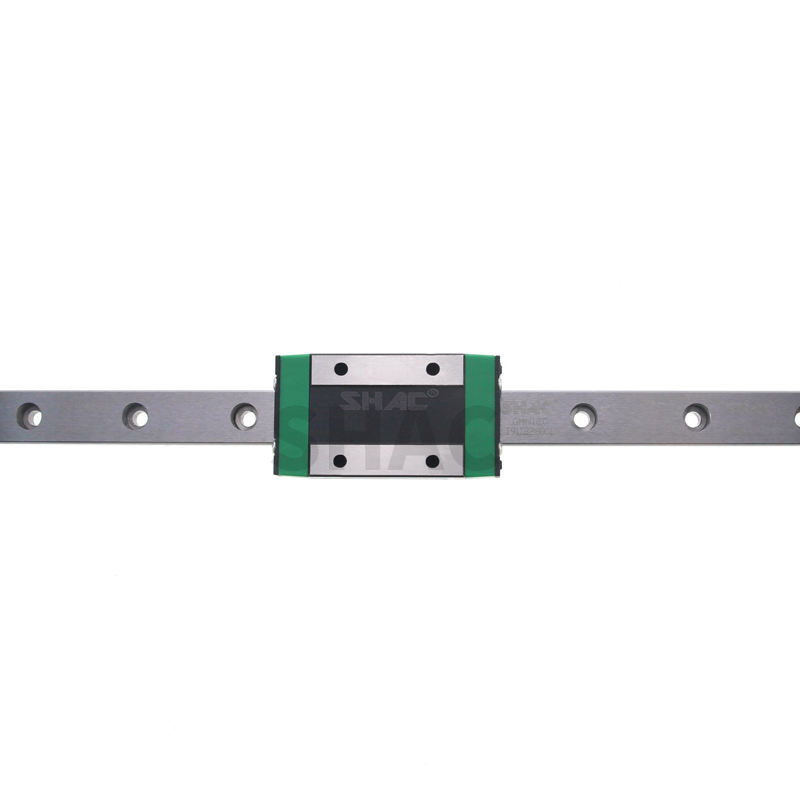

Low Noise Wear-Resistant Durable Linear Guide Slider for Precision Machinery

1
MOQ
$6.9-$89
Price
Low Noise Wear-Resistant Durable Linear Guide Slider for Precision Machinery
Features Gallery Product Description Chat Now
Features
Specifications
Product Name:: Linear Guide Slider
Material:: Bearing Steel
Core Components:: Bearing
Preload Code:: ZO,ZA,ZB
Applicable Industries:: Machinery
Performance:: Low Noise, Very Smooth And Long Life
Highlight:

Low Noise Linear Guide Slider

,

Wear-Resistant Linear Rail Slider

,

Durable Precision Slider
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: GHL15/225/30/35/45/55CA/HA
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
Product Description
Anti-Deviation GHL Slider Low-Noise Operation  Wear-Resistant  Durable
As a core component of precision linear transmission, this slider has established long-term cooperation with numerous well-known enterprises in the industry. With its stable performance and easy-to-operate features, it has become a preferred accessory in fields such as automation and precision machinery, adapting to the transmission needs of various high-end equipment.
Standard procedures must be followed during use: Wear protective gloves before installation to avoid component corrosion caused by sweat stains. The slider is equipped with a protective dummy rail that does not need to be disassembled in advance; align it with the guide rail and push gently to make it fall off naturally, preventing steel balls from scattering. Bolts shall be tightened in a diagonal sequence; for high-precision scenarios, sequential fixing from one side can effectively eliminate installation stress and ensure transmission accuracy.
Daily maintenance is simple and easy to operate. Regularly clean surface impurities with special tools, and inject matching lubricant through the reserved oil nozzle. It is strictly prohibited to wipe with strongly corrosive solvents. Under humid and dusty working conditions, regularly inspect the condition of seals and replace aged accessories in a timely manner. Under standardized operation, the product's advantages of wear resistance and stability can be fully exerted, meeting the efficient production needs of cooperative enterprises.

Specification sheet

Low Noise Wear-Resistant Durable Linear Guide Slider for Precision Machinery 0

Type   Combination size Slider size
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*1 T H₂ H₃
GHL15CA 24  4.4  9.5  34  26  4  26  39.5  61.1  3.35  4.75  5.5  M44 6  4  4
GHL25CA 36  5.6  12.5  48  35  6.5  35  58  82  5  6  12  M6>6 8  6  5.5
GHL25HA 50  78.6  102.6
GHL30CA 42  6  16  60  40  10  40  70  98  6.5  5.5  12  M8 ×0 8.5  7  6
GHL30HA 60  93  121
GHL35CA 48  7.4  18  70  50  10  50  80  112  5.5  6.5  12  MB >9 10.2  9  8
GHL35HA 72  105.8  137.8
GHL45CA 60  9.5  20.5  86  60  13  60  97  137  4.8  8  13  M10×3 16  11  10
GHL45HA 80  128.8  168.8
GHL55CA 70  13  23.5  100  75  12.5  75  117.7  161.7  6  11  13  M12×8 17.5  12  19
GHL55HA 95  155.8  199.8
Type Rail size Guide rail bolt size Basic dynamic rated load Basic
Static
Rated
Load		 Allowable static moment     weight
WR He D h d P E (mm) C(KN) CO(KN) MR
KN-m		 Mp
KN-m		 My
KN-m		 Slider
kg		 Rail
kg/m
GHL15CA 15  15  7.5  5.3  4.5  60  20  M4×6 10.59  16.19  0.11  0.09  0.09  0.20  1.42
GHL25CA 23  22  11  9  7  60  20  M6×20 25.11  36.42  0.41  0.32  0.32  0.53  3.25
GHL25HA 30.73  48.56  0.55  0.56  0.56  0.71
GHL30CA 28  26  14  12  9  80  20  M8 ×25 34.93  49.58  0.58  0.5  0.5  0.90  4.49
GHL30HA 42.72  66.1  0.8  0.9  0.9  1.20
GHL35CA 34  29  14  12  9  80  20  MB ×25 48.5  57.6  108 0.78  0.78  1.50  6.36
GHL35HA 58.9  89.62  1.34  1.30  1.30  1.96
GHL45CA 45  38  20  17  14  105  22.5  M12 ×85 75.26  100.2  1.8  1.35  1.35  2.75  10.45
GHL45HA 92.45  130.52  2.52  2.51  2.51  3.65
GHL55CA 53  44  23  20  16  120  30  M14×45 112.33  145.64  3.59  2.5  2.5  4.20  15.12
GHL55HA 136.54  190.28  4.58  4.37  4.37  5.55
