Name: Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: PTB17
Price: 3,050.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Max Speed(mm/s): 2000

Rated Thrust (N): 204

Standard Stroke(mm): 20-3050mm/50 Interval

Belt Width: 30

High Rigidity Linear Slider: W20×H15

Origin Sensor Plug: PM-T45(NPN)

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/ROSH/FCC/EPA/ISO

Model Number: PTB17

Payment & Shipping Terms

Packaging Details: Carton with foam

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Gallery

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency

Product Description

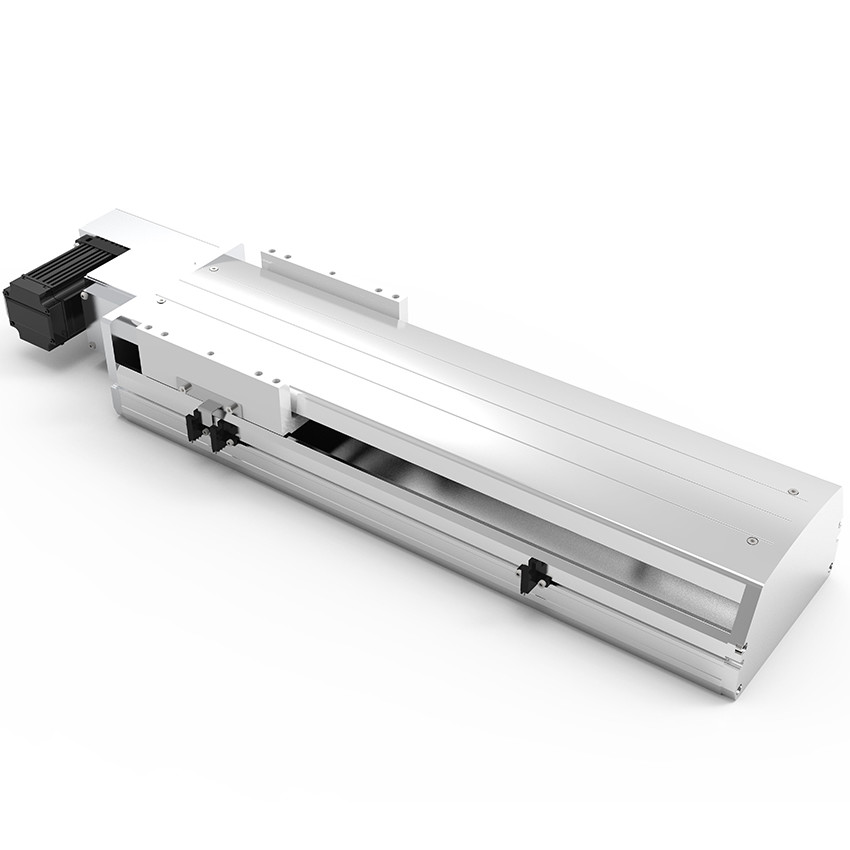

High Speed Long Stroke Synchronous Belt Slide Table with Precise Positioning

SEXGL Linear Slide deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.In CNC machining, precision, efficiency, and stability are key. Our linear slides, tailored for CNC, enable precise positioning and efficient motion—core to reliable linear solutions for all CNC equipment, enhancing quality and productivity.

Core Performance Parameters

Efficient Transmission System
The synchronous belt achieves over 95% transmission efficiency, significantly reducing energy loss compared to lead screw modules. Combined with servo motors, it enables rapid start-stop and precise control. The patented tensioning mechanism design ensures the belt maintains constant tension at all times, preventing slipping.
Low-Noise Operation
The precise meshing of synchronous belt teeth with pulleys results in low operational noise, superior to the metallic friction noise of lead screw modules. This makes it ideal for noise-sensitive environments such as medical equipment and laboratory instruments.
Maintenance-Free Design
Featuring self-lubricating guide rails and a sealed protective structure, daily lubrication is eliminated, reducing maintenance costs. The materials are oil-resistant, waterproof, and wear-resistant, ensuring a long service life.
Modular Integration
Supports multi-axis linkage for quick integration into automated production lines. Offers multiple mounting options (horizontal, vertical, inverted) to accommodate different equipment layout requirements.

※ Basic specifications
Specification	Repeatable positioning accuracy(mm)		±0.08
	Lead (mm)		40
	Max speed(mm/s)		2000
	Max load(kg)	Horizontal	45
		Vertical	-
	Rated thrust (N)		204
	Standard stroke(mm)		20-3050mm/50 interval
Component	AC servo motor capacity		400
	Belt width		30
	High rigidity linear slider		W20×H15
	Origin sensor Plug		PM-T45(NPN)

(Unit:mm) (Unit:mm)

Horizontal installation	A	B	C	Side installation	A	B	C
10kg	2942	1133	1033	15kg	676	742	1933
20kg	1430	547	498	25kg	390	428	1127
30kg	926	350	320	35kg	269	294	781
45kg	588	219	201	45kg	201	219	588

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency 2

Motor folds right

Stroke	50	100	150	200	250	300	350	400	450	500	550	600		650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985		1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200		50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3		4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10		12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8		21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000	1050		1100		1150		1200		1250		1300		1350		1400	1450	1500	1550
L	1285		1335		1385	1435		1485		1535		1585		1635		1685		1735		1785	1835	1885	1935
A	100		150		200	50		100		150		200		50		100		150		200	50	100	150
M	5		5		5	6		6		6		6		7		7		7		7	8	8	8
N	14		14		14	16		16		16		16		18		18		18		18	20	20	20
KG	25.4		26.2		27	27.8		28.6		29.4		30.2		31		31.8		32.6		33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100		2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485		2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100		150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11		11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26		26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6		45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550	2600		2650		2700		2750		2800		2850		2900		2950	3000	3050
L	2835		2885		2935	2985		3035		3085		3135		3185		3235		3285		3335	3385	3435
A	50		100		150	200		50		100		150		200		50		100		150	200	50
M	13		13		13	13		14		14		14		14		15		15		15	15	16
N	30		30		30	30		32		32		32		32		34		34		34	34	36
KG	50.2		51		51.8	52.6		53.4		54.2		55		55.8		56.6		57.4		58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency 3

Motor right up

Stroke	50	100	150	200	250	300	350	400	450	500	550	600		650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985		1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200		50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3		4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10		12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8		21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000			1050		1100		1150			1200		1250	1300	1350	1400	1450	1500	1550
L	1285		1335		1385			1435		1485		1535			1585		1635	1685	1735	1785	1835	1885	1935
A	100		150		200			50		100		150			200		50	100	150	200	50	100	150
M	5		5		5			6		6		6			6		7	7	7	7	8	8	8
N	14		14		14			16		16		16			16		18	18	18	18	20	20	20
KG	25.4		26.2		27			27.8		28.6		29.4			30.2		31	31.8	32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100		2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485		2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100		150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11		11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26		26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6		45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500			2550		2600		2650			2700		2750		2800	2850	2900	2950	3000	3050
L	2835		2885			2935		2985		3035			3085		3135		3185	3235	3285	3335	3385	3435
A	50		100			150		200		50			100		150		200	50	100	150	200	50
M	13		13			13		13		14			14		14		14	15	15	15	15	16
N	30		30			30		30		32			32		32		32	34	34	34	34	36
KG	50.2		51			51.8		52.6		53.4			54.2		55		55.8	56.6	57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency 4

Motor folds left

Stroke	50	100	150	200	250	300	350	400	450	500	550	600	650		700		750		800		850
L	435	485	535	585	635	685	735	785	835	885	935	985	1035		1085		1135		1185		1235
A	50	100	150	200	50	100	150	200	50	100	150	200	50		100		150		200		50
M	1	1	1	1	2	2	2	2	3	3	3	3	4		4		4		4		5
N	6	6	6	6	8	8	8	8	10	10	10	10	12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1	16.9	17.7	18.5	19.2	20	20.8	21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000		1050		1100		1150		1200		1250		1300		1350	1400	1450	1500	1550
L	1285		1335		1385		1435		1485		1535		1585		1635		1685		1735	1785	1835	1885	1935
A	100		150		200		50		100		150		200		50		100		150	200	50	100	150
M	5		5		5		6		6		6		6		7		7		7	7	8	8	8
N	14		14		14		16		16		16		16		18		18		18	18	20	20	20
KG	25.4		26.2		27		27.8		28.6		29.4		30.2		31		31.8		32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850	1900	1950	2000	2050	2100	2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235	2285	2335	2385	2435	2485	2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50	100	150	200	50	100	150		200		50		100		150		200
M	8	9	9	9	9	10	10	10	10	11	11	11		11		12		12		12		12
N	20	22	22	22	22	24	24	24	24	26	26	26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6	41.4	42.2	43	43.8	44.6	45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550		2600		2650		2700		2750		2800		2850		2900	2950	3000	3050
L	2835		2885		2935		2985		3035		3085		3135		3185		3235		3285	3335	3385	3435
A	50		100		150		200		50		100		150		200		50		100	150	200	50
M	13		13		13		13		14		14		14		14		15		15	15	15	16
N	30		30		30		30		32		32		32		32		34		34	34	34	36
KG	50.2		51		51.8		52.6		53.4		54.2		55		55.8		56.6		57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency 5

Motor folds left up

Stroke	50	100	150	200	250	300		350	400	450	500	550	600	650		700		750		800		850
L	435	485	535	585	635	685		735	785	835	885	935	985	1035		1085		1135		1185		1235
A	50	100	150	200	50	100		150	200	50	100	150	200	50		100		150		200		50
M	1	1	1	1	2	2		2	2	3	3	3	3	4		4		4		4		5
N	6	6	6	6	8	8		8	8	10	10	10	10	12		12		12		12		14
KG	10.2	12	13.8	14.6	15.4	16.1		16.9	17.7	18.5	19.2	20	20.8	21.6		22.3		23.1		23.9		24.7
Stroke	900		950		1000		1050		1100		1150		1200		1250		1300		1350	1400	1450	1500	1550
L	1285		1335		1385		1435		1485		1535		1585		1635		1685		1735	1785	1835	1885	1935
A	100		150		200		50		100		150		200		50		100		150	200	50	100	150
M	5		5		5		6		6		6		6		7		7		7	7	8	8	8
N	14		14		14		16		16		16		16		18		18		18	18	20	20	20
KG	25.4		26.2		27		27.8		28.6		29.4		30.2		31		31.8		32.6	33.4	34.2	35	35.8
Stroke	1600	1650	1700	1750	1800	1850		1900	1950	2000	2050	2100	2150		2200		2250		2300		2350		2400
L	1985	2035	2085	2135	2185	2235		2285	2335	2385	2435	2485	2535		2585		2635		2685		2735		2785
A	200	50	100	150	200	50		100	150	200	50	100	150		200		50		100		150		200
M	8	9	9	9	9	10		10	10	10	11	11	11		11		12		12		12		12
N	20	22	22	22	22	24		24	24	24	26	26	26		26		28		28		28		28
KG	36.6	37.4	38.2	39	39.8	40.6		41.4	42.2	43	43.8	44.6	45.4		46.2		47		47.8		48.6		49.4
Stroke	2450		2500		2550		2600		2650		2700		2750		2800		2850		2900	2950	3000	3050
L	2835		2885		2935		2985		3035		3085		3135		3185		3235		3285	3335	3385	3435
A	50		100		150		200		50		100		150		200		50		100	150	200	50
M	13		13		13		13		14		14		14		14		15		15	15	15	16
N	30		30		30		30		32		32		32		32		34		34	34	34	36
KG	50.2		51		51.8		52.6		53.4		54.2		55		55.8		56.6		57.4	58.2	59	59.8

Faster Long High Speed Stroke Slide Table with ±0.1mm Precision Efficiency 6
