Name: Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: MGN/MGW7/9/12/15/C/H
Price: 47.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name:: Linear Guide Rail

Width Of Guide Rail:: 15-63mm

CombiWidth Of Height:: 15-65mm

Type:: Linear Rolling Guide

Material:: Stainless Steel

Slide Rail Height:: 15-53mm

Highlight:

Precision Linear Guide Rail

Lubricated Micro Linear Guides

Micro Linear Guides 63mm

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: MGN/MGW7/9/12/15/C/H

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm

Product Description

Nano-Level Precision Lubricated Micro Linear Guides For Precision Equipment

SEXGL Linear Guide Rails deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.

Micro linear guides are core transmission components designed specifically for high-precision, miniaturized motion control applications. Through the precise coordination between the guide rail and slider, they enable high-precision, low-friction, and high-stability linear reciprocating motion. Adopting lightweight design and nanoscale manufacturing processes, the products are suitable for industries with stringent requirements for spatial dimensions and motion precision, such as 3C electronics, semiconductors, medical devices, precision instruments, and automation equipment, providing reliable linear motion solutions for high-end equipment.

Core Advantages

Nanoscale precision for accurate positioning
Miniaturized design for space optimization
Designed for installation in narrow spaces; reduces equipment load and energy consumption.
Low friction, quiet operation, and long service life
High rigidity and stability
Suited for high-speed motion and complex load environments; the slider is equipped with built-in preload adjustment components that enable pre-tightening force adjustment based on operating conditions, eliminating gaps and ensuring smooth, vibration-free motion.
Quick installation and easy maintenance
The guide rail features T-slots/screw holes on the bottom surface that match the mounting base, significantly reducing debugging time.

Details

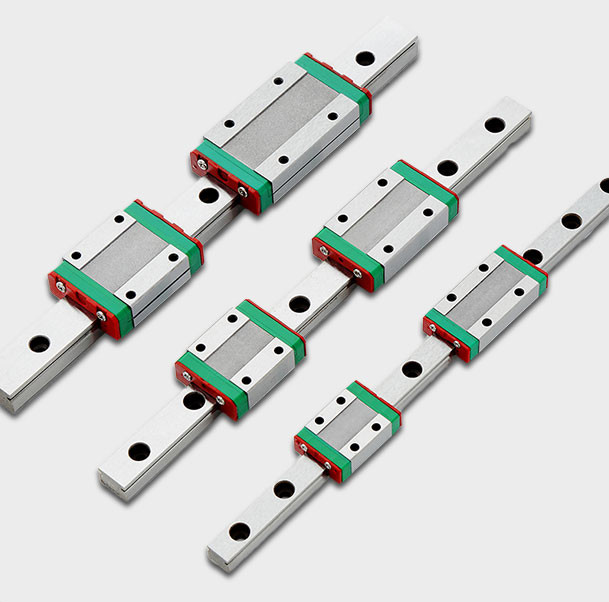

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 0

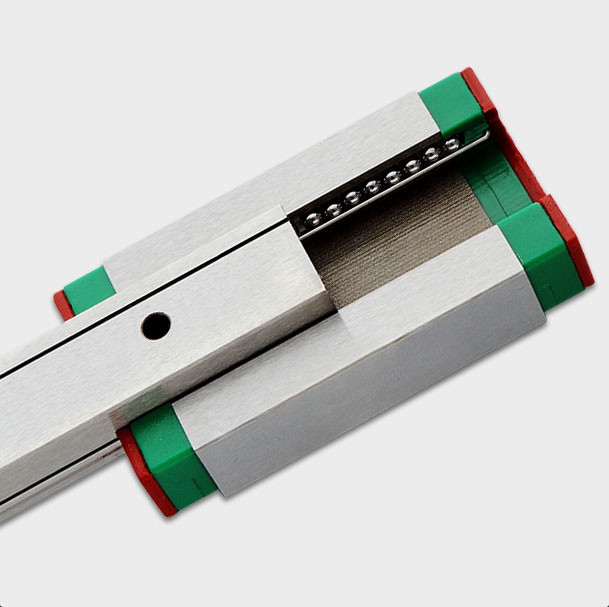

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 1

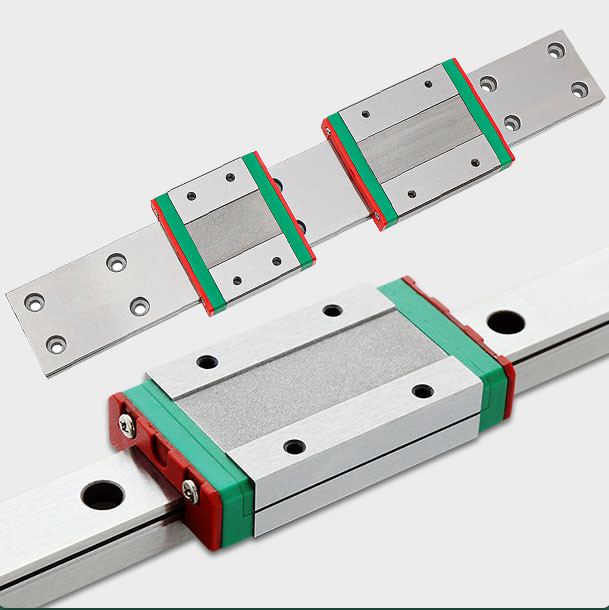

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 2

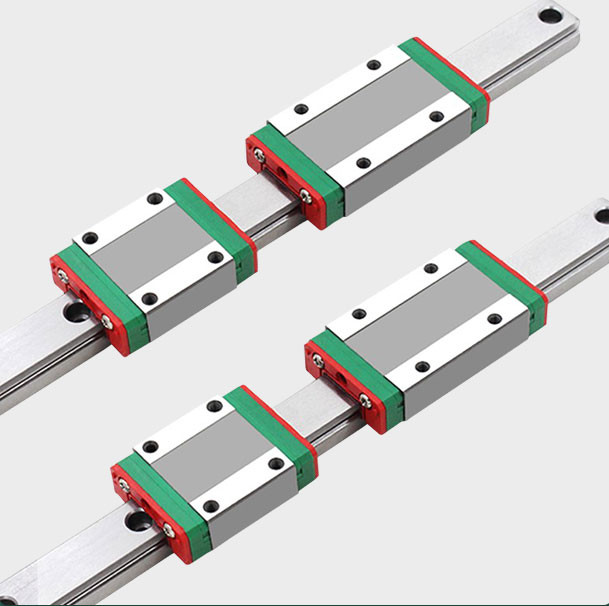

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 3

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 4

Type	Component size [mm]			Slide size[mml										Rail size(mml							Guide rail fixing bolt dimensions
	H	H₁	N	W	B	B₁	C	L	L	G	G.	Mxl	H₂	WR	HR	D	h	d	P	E	(mm)
MGN 7C	8	1.5	5	17	12	2.5	8 13	13.5	22.5		1.2	M2x2.5	1.5	7	4.8	4.2	2.3	2.4	15	5	M2×6
MGN7H								21.8	30.8
MGN9C	10	2	5.5	20	15	2.5	10 16	18,9 29,9	28.9 39.9		1.2	M3×3	1.8	9	6.5	6	3.5	3.5	202	7.5	M3×8
MGN9H
MGN 12C	13	3	7.5	27	20	3.5	15 20	217	34.7 45.4		1.4	M3×3.5	2.5	12	8	6	4.5	3.5	25	10	M3x8
MGN 12H								324
MGN 15C	16	4	8.5	32	25	3.5	20 25	26,7 43.4	42.1 58.8	4.5	M3	M3×4	3	15	10	6	4.5	3.5	40	15	M3x10
MGN 15H

Nano Level Precision Linear Guide Rail Lubricated Micro Linear Guides 15mm - 63mm 5

Type	Component size ( mm)			Slide size(mm)										Rail size(mm)								Guide rail fixing bolt dimensions
	H	H₁	N	W	B	B₁	C	L	L	G	G.	Mxl	H₂	WR	W	H₈	D	h	d	P	E	〔mm〕
MGW7C	9	1.9	5.5	25	19	3	10 19	21	31.2		1.2	M3×3	1.85	14		5.2	6	3.2	3.5	30	10	M3×6
MGW7H								30.8	41
MGW9C	12	2.9	6	30	2 23	45	12	275	39.3		1.4	M3×3	2.4	18		7	6	4.5	3.5	30	10	M3x8
MGW9H						35	24	385	50.7
MGW 12C	14	3.4	8	40	28	6	15 28	313	46.1		1.4	M3×3.6	2.8	24	·	8.5	8	4.5	4.5	40	15	M4×8
MGW12H								45.6	60.4
MGW 15C	16	3.4	9	60	45	7.5	20 35	3857	54.8 73.8	5.2	M3	M4x4.2	3.2	42	23	9.5	8	4.5	4.5	40	15	M4x10
MGW 15H
