Name: Four Directional Load Linear Guide Block Dust Proof Linear Slide Block High Rigidity
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: GHH15/20/25/30/35/45/55/65 CA/HA
Price: 47.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name:: Linear Guide Block

Material:: Bearing Steel

Core Components:: Bearing

Preload Code:: ZO,ZA,ZB

Applicable Industries:: Machinery

Performance:: Low Noise, Very Smooth And Long Life

Highlight:

Four Directional Load Linear Guide Block

Linear Guide Block Dust Proof

Linear Slide Block High Rigidity

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: GHH15/20/25/30/35/45/55/65 CA/HA

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

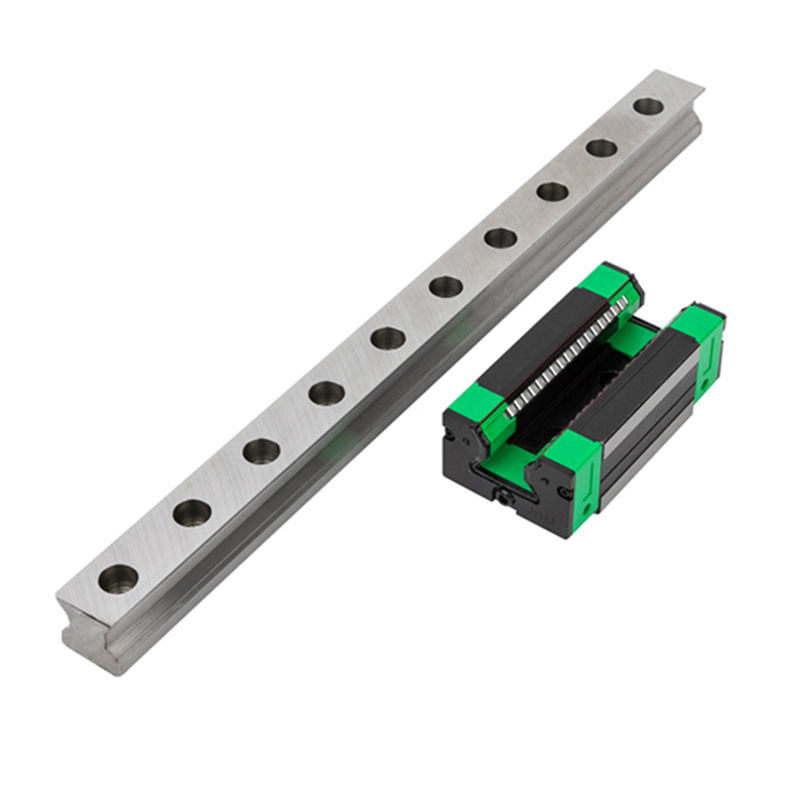

Four Directional Load Linear Guide Block Dust Proof Linear Slide Block High Rigidity

Product Description

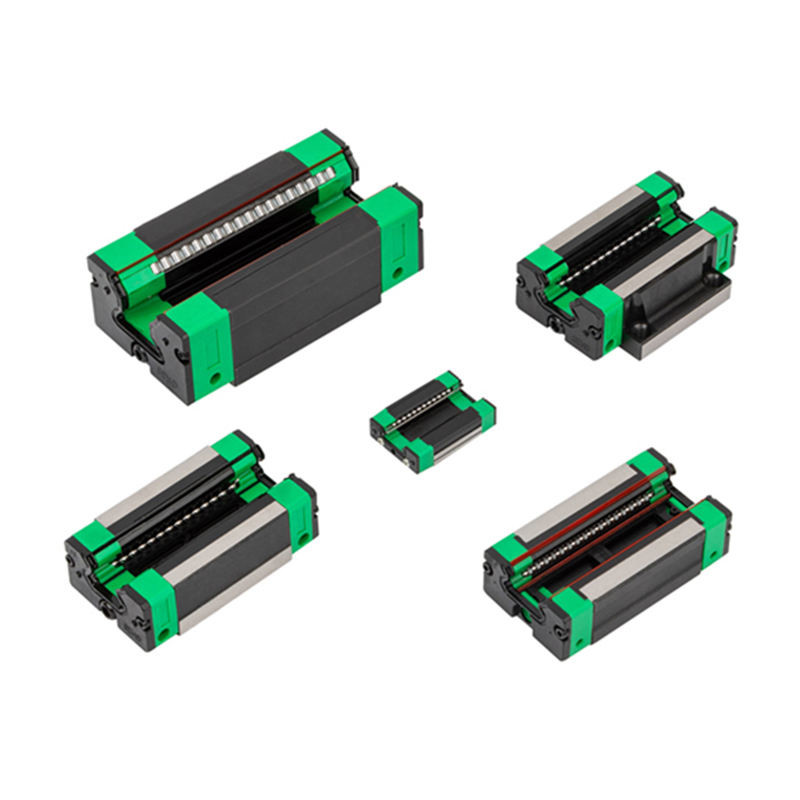

Four Directional Load Bearing High Rigidity Dust Proof Linear SliderA standalone linear slider engineered for precision machinery, featuring an integrated ball transmission system. It is designed for applications in automation equipment, precision instruments, and retrofitting for special operating conditions.
Technologies
1. Pure Ball Transmission Design

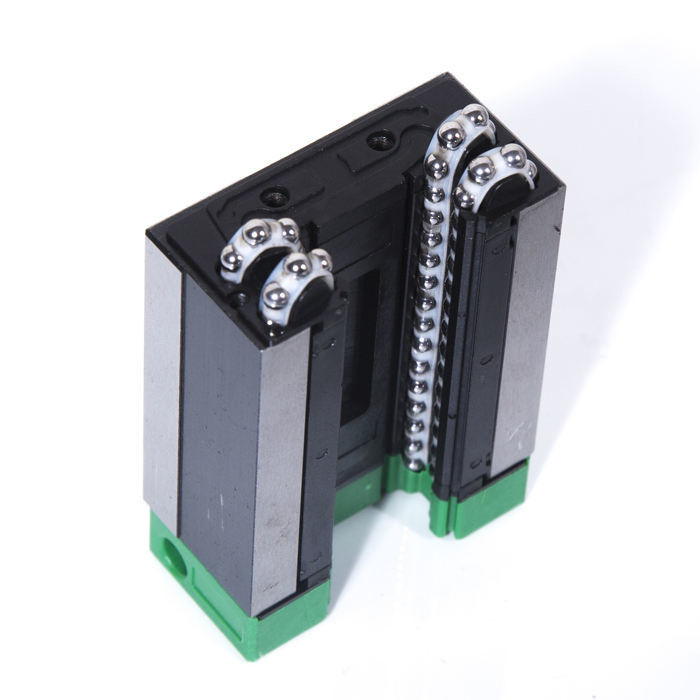

Internally equipped with a precision ball recirculation structure, enabling smoother motion.
Ball diameters are precisely matched to track radii (e.g., Gothic arch 45° contact angle design), supporting four-directional loads (vertical/horizontal) with 30% higher rigidity than standard sliders.
Offers multi-specification mounting holes (through holes/tapped holes) and flange interfaces, ensuring compatibility with various equipment configurations (e.g., small robotic arm joints, precision worktables).
2. Fully Enclosed Dust-Protection SystemAdopts IP54-rated dust-tight sealing:

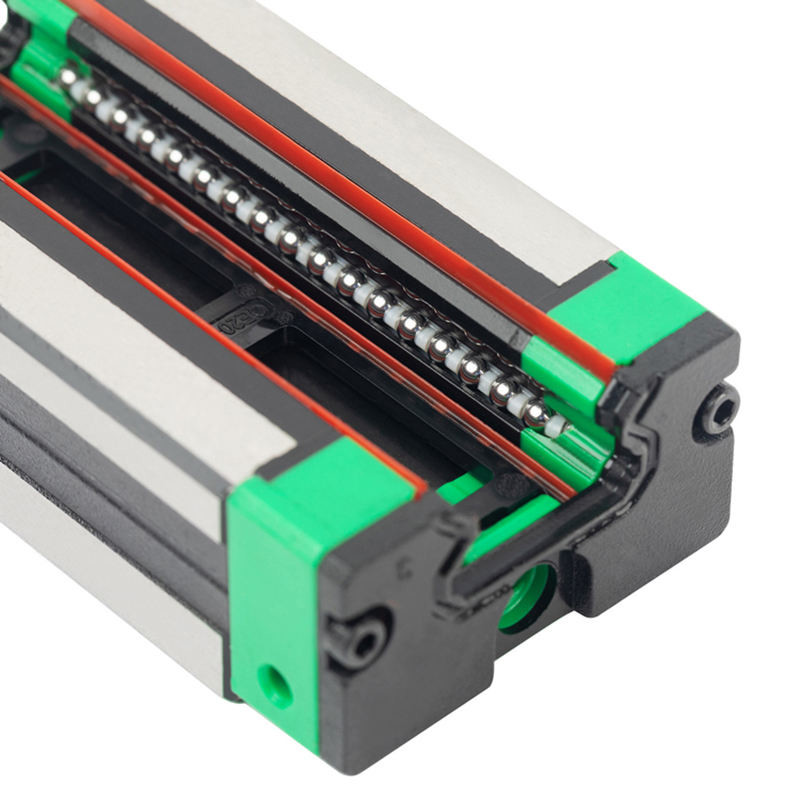

Double-lip end scrapers combined with embedded dust seals effectively block dust and metal shavings.
The ball recirculation chamber features a fully enclosed design, paired with a removable dust cover for quick internal debris cleaning during maintenance.

Optional cleanroom-specific coatings (e.g., semiconductor-grade stainless steel) are available for dust-free environments.
3. Longevity & Low MaintenanceBalls and track surfaces undergo hardened treatment (≥HRC58), achieving a wear life of over 20,000 hours.
Integrated automatic lubrication system (lubrication ports + grease circulation channels) extends the lubrication interval to 5,000 hours, reducing maintenance costs by 50%.

Specification sheet

Type	Combination size			Slider size
	H	H₁	N	W	B	B₁	C	L₁	L	K₁	K₂	G	M*1	T	H₂ \|	H₃
GHH15CA	28	4.4	9.5	34	26	4	26	39.5	61.1	3.35	4.75	5.5	M4×5	6	8	8
GHH20CA	30	4.3	12	44	32	6	36	50.5	76.5	5	6	12	M5>6	8	6	6
GHH20HA							50	65.2	91.2
GHH25CA	40	5.6	12.5	48	35	6.5	35	58	82	5	6	12	M6×8	8	10	9.5
GHH25HA							50	78.6	102.6
GHH30CA	45	6	16	60	40	10	40	70	98	6.5	5.5	12	M8×0	8.5	10	9
GHH30HA							60	93	121
GHH35CA	55	7.4	18	70	50	10	50	80	112	5.5	6.5	12	M8×2	10.2	16	15
GHH35HA							72	105.8	137.8
GHH45CA	70	9.5	20.5	86	60	13	60	97	137	4.8	8	13	M10×7	16	21	20
GHH45HA							80	128.8	168.8
GHH55CA	80	13	23.5	100	75	12.5	75	117.7	161.7	6	11	13	M12×8	17.5	22	29
GHH55HA							95	155.8	199.8
GHH65CA	90	15	31.5	126	76	25	70	144.2	194.2	6	14	13	M16×20	25	15	15
GHH65HA							120	203.6	253.6

Type	Rail size							Guide rail bolt size	Basic dynamic rated load	Basic Static Rated Load	Allowable static moment			weight
	W.	Ha	D	h	d	P	E	(mm)	C(KN)	CO (KN)	MR KN-m	Mp KN-m	My KN-m	Silder kg	Rail kg/m
GHH15CA	15	15	7.5	5.3	4.5	60	20	M4×6	10.59	16.19	0.11	0.09	0.09	0.20	1.42
GHH20CA	20	17.5	9.5	8.5	6	60	20	M5×6	17.2	25.6	0.25	0.18	0.18	0.33	2.2
GHH20HA									20.8	33.55	0.32	0.31	0.31	0.41
GHH25CA	23	22	11	9	7	60	20	M6 ×20	25.11	36.42	0.41	0.32	0.32	0.53	3.25
GHH25HA									30.73	48.56	0.55	0.56	0.56	0.71
GHH30CA	28	26	14	12	9	80	20	M8 ×25	34.93	49.58	0.58	0.5	0.5	0.90	4.49
GHH30HA									42.72	66.1	0.8	0.9	0.9	1.20
GHH35CA	34	29	14	12	9	80	20	M8 ×25	48.5	57.6	1.08	0.78	0.78	1.50	6.36
GHH35HA									58.9	89.62	1.34	1.30	1.30	1.96
GHH45CA	45	38	20	17	14	105	22.5	M12×35	75.26	100.2	1.8	1.35	1.35	2.75	10.45
GHH45HA									92.45	130.52	2.52	2.51	2.51	3.65
GHH55CA	53	44	23	20	16	120	30	M14×15	112.33	145.64	3.59	2.5	2.5	4.20	15.12
GHH55HA									136.54	190.28	4.58	4.37	4.37	5.55
GHH65CA	63	53	26	22	18	150	35	M16×50	160.22	210.37	6.45	4.18	4.18	9.25	21.25
GHH65HA									205.36	298.77	9.15	7.15	7.15	12.95
