Name: Precision Multi Axis Actuator 500mm/s XYZ Actuator 100kg Load Interchangeable
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: PTH10
Price: 5,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Multi Axis Actuator

Series: PTH

Stroke Range: 50mm-1500mm

Position Accuracy: 0.02mm

Max Speed: 500mm/s

Max Load: 100kg

Ball Screw: G1610A/G2020

Highlight:

Precision Multi Axis Actuator

Multi Axis Actuator 500mm/s

XYZ Actuator 100kg Load

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: PTH10

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

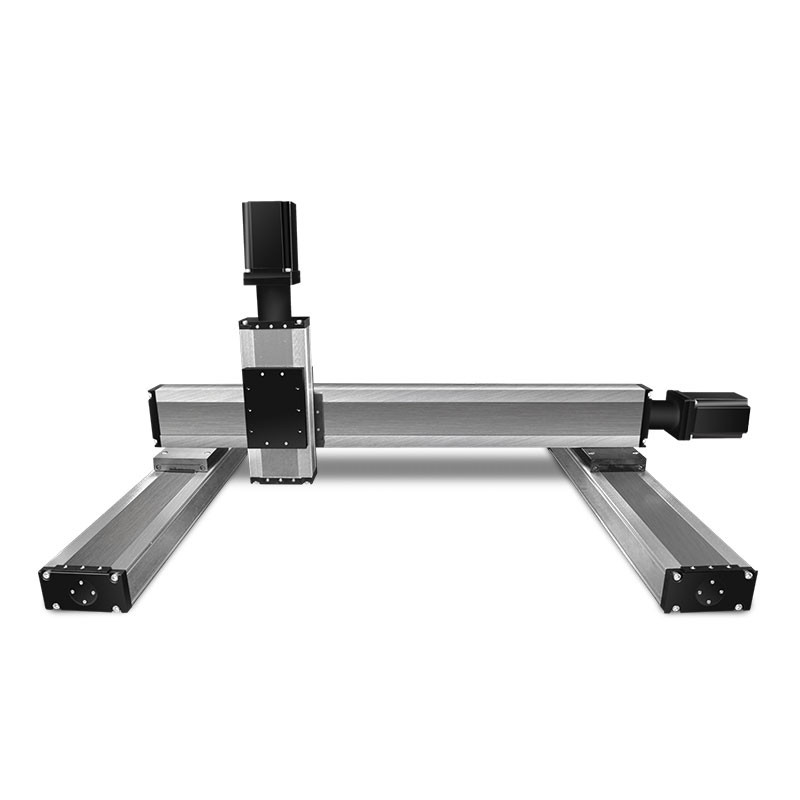

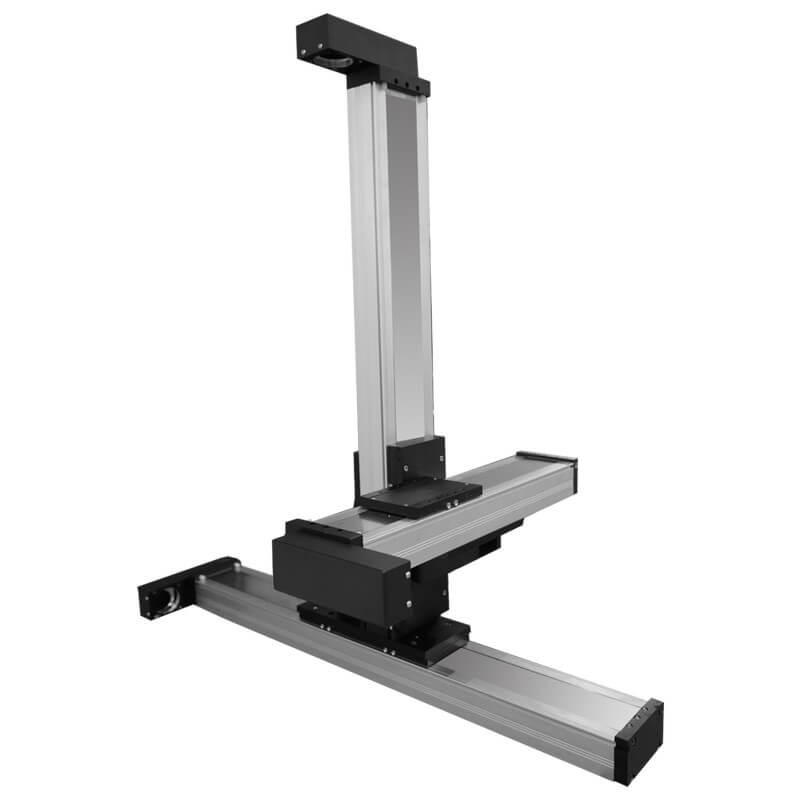

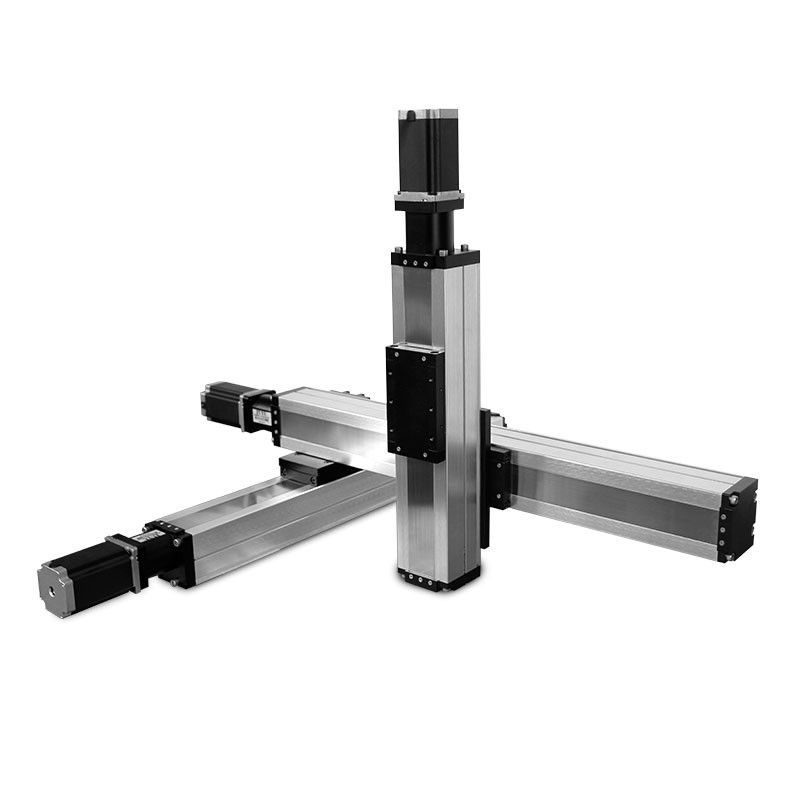

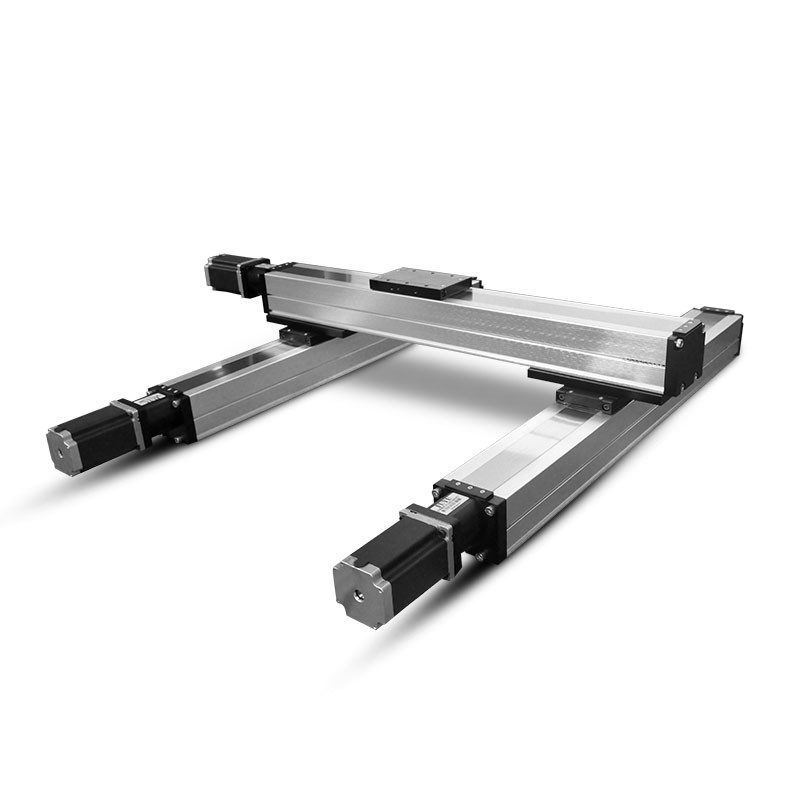

Precision Multi Axis Actuator 500mm/s XYZ Actuator 100kg Load Interchangeable

Product Description

Multi Axis Precision Interchangeable XYZ Linear Actuators Heavy Load Synchronization

Product Overview
As a core equipment in industrial automation, multi-axis robots integrate 2-6 degrees of freedom to enable precise positioning and complex trajectory motion in 3D space. This series of products combines high-rigidity mechanical structures, intelligent control systems, and modular designs, allowing rapid adaptation to scenarios such as electronic assembly, precision machining, material handling, and visual inspection. It delivers flexible and intelligent motion control solutions for high-end manufacturing.

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 0

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 1

※ Basic specifications
Specification	Standard motor power (W)		200W
	Repeatable positioning accuracy(mm)		±0.01
	Screw specification		1605	1610	1616	1620
	Max speed (mm/s)		250	500	800	1000
	Rated thrust (N)		683	341	213	174
	Max load (kg)	Horizontal	50	30	22	18
		Vertical	12	8	5	3
	Max stroke (mm)		1050
Component	Screw specification		1605/1610/1616/1620(Slenderness ratio1:62.5)
	Screw grade		C7 rolling
	High rigidity linear slider		W20×H18
	Coupling		34-27-10-14
	Photoelectric switch		PM-T45(NPN)

(Unit:mm) (Unit:mm)										(Unit :mm) (Unit:N.m)

Horizontal installation		A	B	C	Side installation		A	B	C	Vertical installation		A	C	MY	110
Horizontal installation		A	B	C	Side installation		A	B	C	Vertical installation		A	C	MP	110
Lead 05	30kg	547	42	42	Lead 05	25kg	52	53	670	Lead 05	5kg	310	310	MR	120
	40kg	391	29	29		35kg	35	45	455		8kg	192	192
	50kg	298	22	22		50kg	21	22	298		12kg	129	129
Lead 10	15kg	521	84	80	Lead 10	10kg	124	131	770	Lead 10	4kg	335	335
	25kg	298	47	44		20kg	58	61	382		6kg	220	220
	30kg	242	34	35		30kg	35	37	242		8kg	172	172
Lead 16	5kg	937	282	259	Lead 16	5kg	116	58	605	Lead 16	1kg	620	620
	10kg	487	121	116		10kg	24	26	253		2kg	680	680
	22kg	236	40	44		22kg	0	0	0		5kg	310	310
Lead 20	5kg	675	224	193	Lead 20	6kg	160	185	562	Lead 20	1kg	580	580
	10kg	330	107	93		12kg	76	88	272		2kg	645	645
	18kg	175	55	48		18kg	48	55	175		3kg	310	310

Motor exposure-01

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 7

																			Unit:mm
Stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.5	5.8	6.2	6.6	7	7.4	7.8	8.2	8.5	8.9	9.3	9.7	10.1	10.5	10.9	11.2	11.6	12	12.4	12.8

Motor exposure-02

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 8

Unit:mm
Stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050	1100	1150	1200	1250	1300	1350
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	5.8	6.2	6.6	7	7.4	7.8	8.2	8.5	8.9	9.3	9.7	10.1	10.5	10.9	11.2	11.6	12	12.4	12.8	13.2

Motor folds right-01

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 9

Note:The left fold of the motor is symmetrical with this figure Unit:mm
Stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	329.5	379.5	429.5	479.5	529.5	579.5	629.5	679.5	729.5	779.5	829.5	879.5	929.5	979.5	1029.5	1079.5	1129.5	1179.5	1229.5	1279.5
A	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150
M	0	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5
N	4	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14
KG	5.5	5.8	6.2	6.6	7	7.4	7.8	8.2	8.5	8.9	9.3	9.7	10.1	10.5	10.9	11.2	11.6	12	12.4	12.8

Motor folds right-02

High Precision Linear Motion Module 1050mm Stroke Linear Stage 200W 10

Note:The left fold of the motor is symmetrical with this figure Unit:mm
Stroke	100	150	200	250	300	350	400	450	500	550	600	650	700	750	800	850	900	950	1000	1050
L	379.5	429.5	479.5	529.5	579.5	629.5	679.5	729.5	779.5	829.5	879.5	929.5	979.5	1029.5	1079.5	1129.5	1179.5	1229.5	1279.5	1329.5
A	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200	50	100	150	200
M	1	1	1	1	2	2	2	2	3	3	3	3	4	4	4	4	5	5	5	5
N	6	6	6	6	8	8	8	8	10	10	10	10	12	12	12	12	14	14	14	14
KG	5.8	6.2	6.6	7	7.4	7.8	8.2	8.5	8.9	9.3	9.7	10.1	10.5	10.9	11.2	11.6	12	12.4	12.8	13.2
