Name: Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: MGN/MGW7/9/12/15/C/H
Price: 47.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name:: Linear Motion Guides

Width Of Guide Rail:: 15-63mm

CombiWidth Of Height:: 15-65mm

Type:: Linear Rolling Guide

Material:: Stainless Steel

Slide Rail Height:: 15-53mm

Highlight:

Ultra Compact Linear Motion Guides

Micron Precision Linear Motion Rails

Linear Motion Rails Ultra

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: MGN/MGW7/9/12/15/C/H

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

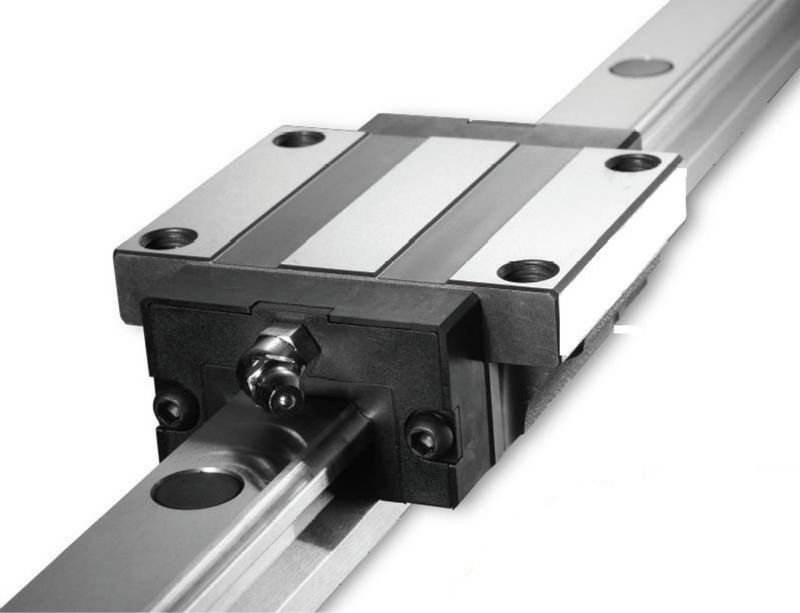

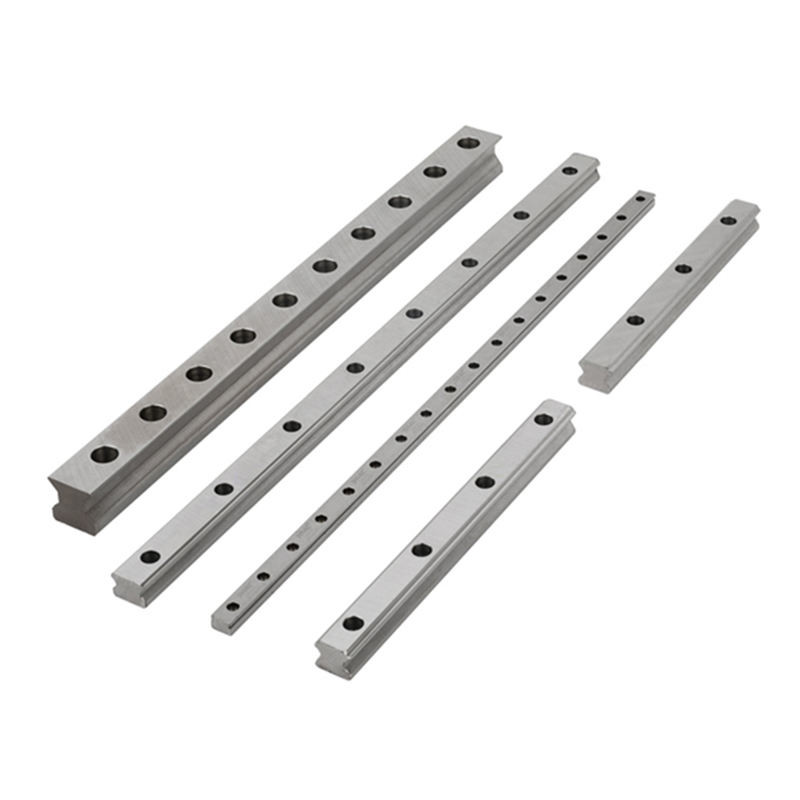

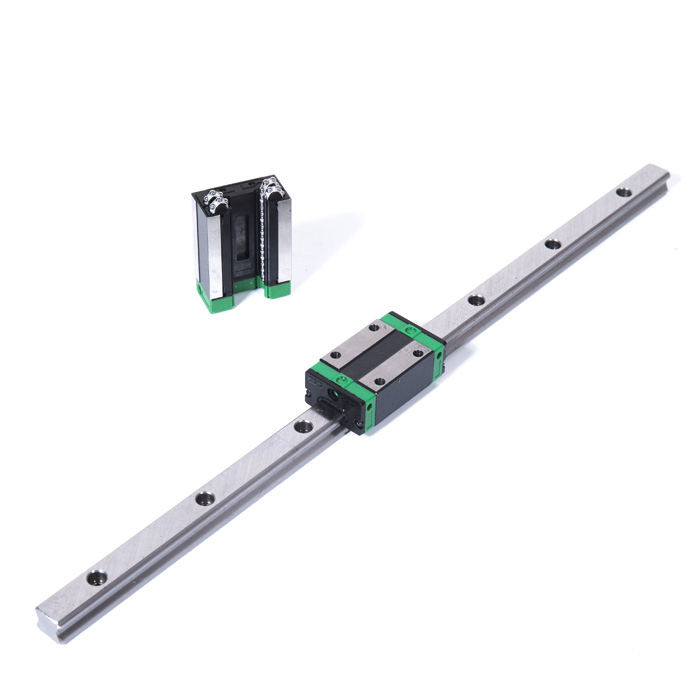

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN

Product Description

Ultra Compact Linear Motion Guides Micron Precision Vacuum Suitability MGN

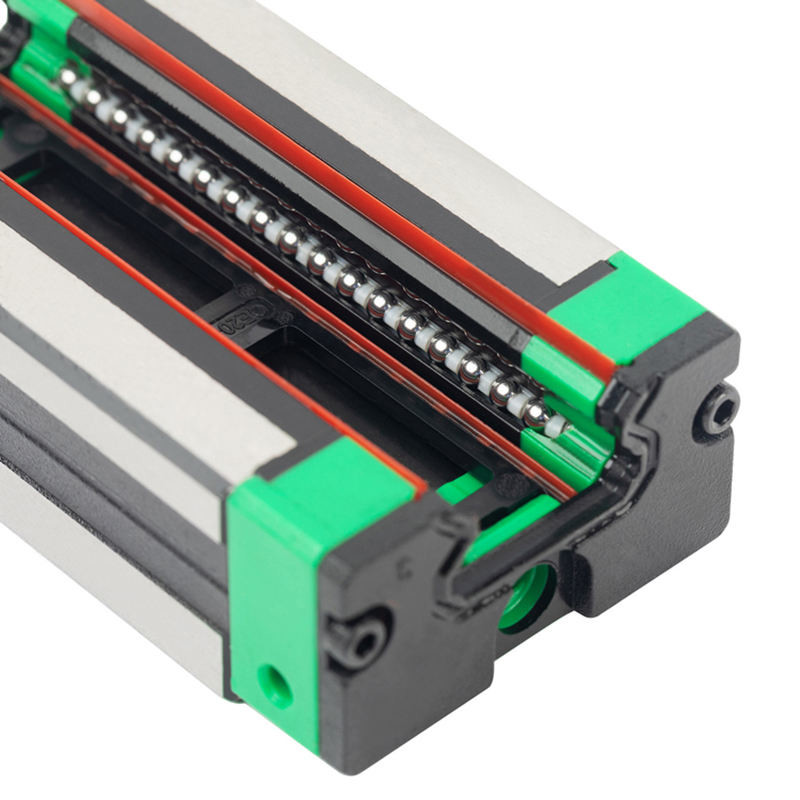

SEXGL Linear Guide Rails deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.The GMN series embodies innovative engineering with dual-row Gothic-arch raceway structures and 45° contact angles, offering an optimal blend of compact geometry, lightweight design, and minimal frictional resistance. This precision linear system ensures equal load-bearing capacity across all four motion axes, delivering exceptionally smooth travel and reduced operational noise. Engineered for space-efficient applications, these features make the GMN series the ideal choice for machinery requiring reliable multidirectional load capability without performance trade-offs.

Details

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 0

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 1

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 2

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 3

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 4

Type	Component size [mm]			Slide size[mml										Rail size(mml							Guide rail fixing bolt dimensions
	H	H₁	N	W	B	B₁	C	L	L	G	G.	Mxl	H₂	WR	HR	D	h	d	P	E	(mm)
MGN 7C	8	1.5	5	17	12	2.5	8 13	13.5	22.5		1.2	M2x2.5	1.5	7	4.8	4.2	2.3	2.4	15	5	M2×6
MGN7H								21.8	30.8
MGN9C	10	2	5.5	20	15	2.5	10 16	18,9 29,9	28.9 39.9		1.2	M3×3	1.8	9	6.5	6	3.5	3.5	202	7.5	M3×8
MGN9H
MGN 12C	13	3	7.5	27	20	3.5	15 20	217	34.7 45.4		1.4	M3×3.5	2.5	12	8	6	4.5	3.5	25	10	M3x8
MGN 12H								324
MGN 15C	16	4	8.5	32	25	3.5	20 25	26,7 43.4	42.1 58.8	4.5	M3	M3×4	3	15	10	6	4.5	3.5	40	15	M3x10
MGN 15H

Ultra Compact Linear Motion Guides Micron Precision Linear Motion Rails Vacuum Suitability MGN 5

Type	Component size ( mm)			Slide size(mm)										Rail size(mm)								Guide rail fixing bolt dimensions
	H	H₁	N	W	B	B₁	C	L	L	G	G.	Mxl	H₂	WR	W	H₈	D	h	d	P	E	〔mm〕
MGW7C	9	1.9	5.5	25	19	3	10 19	21	31.2		1.2	M3×3	1.85	14		5.2	6	3.2	3.5	30	10	M3×6
MGW7H								30.8	41
MGW9C	12	2.9	6	30	2 23	45	12	275	39.3		1.4	M3×3	2.4	18		7	6	4.5	3.5	30	10	M3x8
MGW9H						35	24	385	50.7
MGW 12C	14	3.4	8	40	28	6	15 28	313	46.1		1.4	M3×3.6	2.8	24	·	8.5	8	4.5	4.5	40	15	M4×8
MGW12H								45.6	60.4
MGW 15C	16	3.4	9	60	45	7.5	20 35	3857	54.8 73.8	5.2	M3	M4x4.2	3.2	42	23	9.5	8	4.5	4.5	40	15	M4x10
MGW 15H
