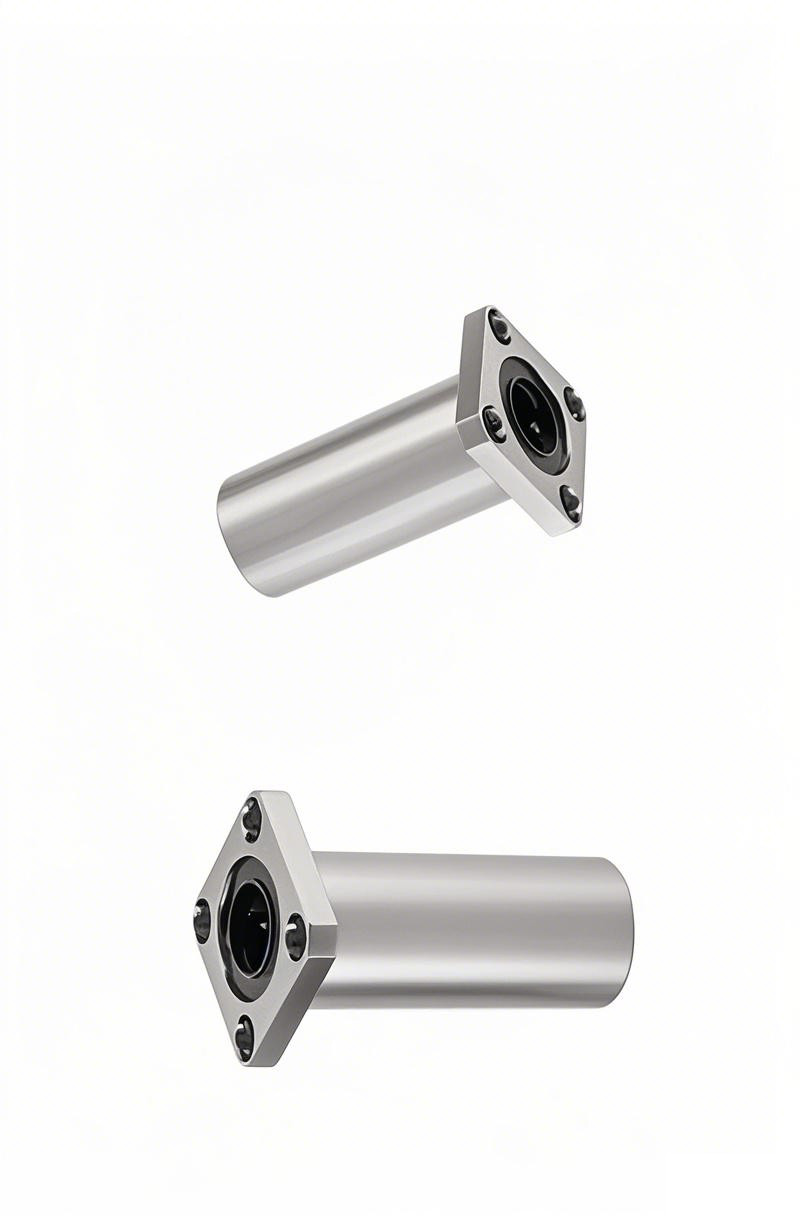

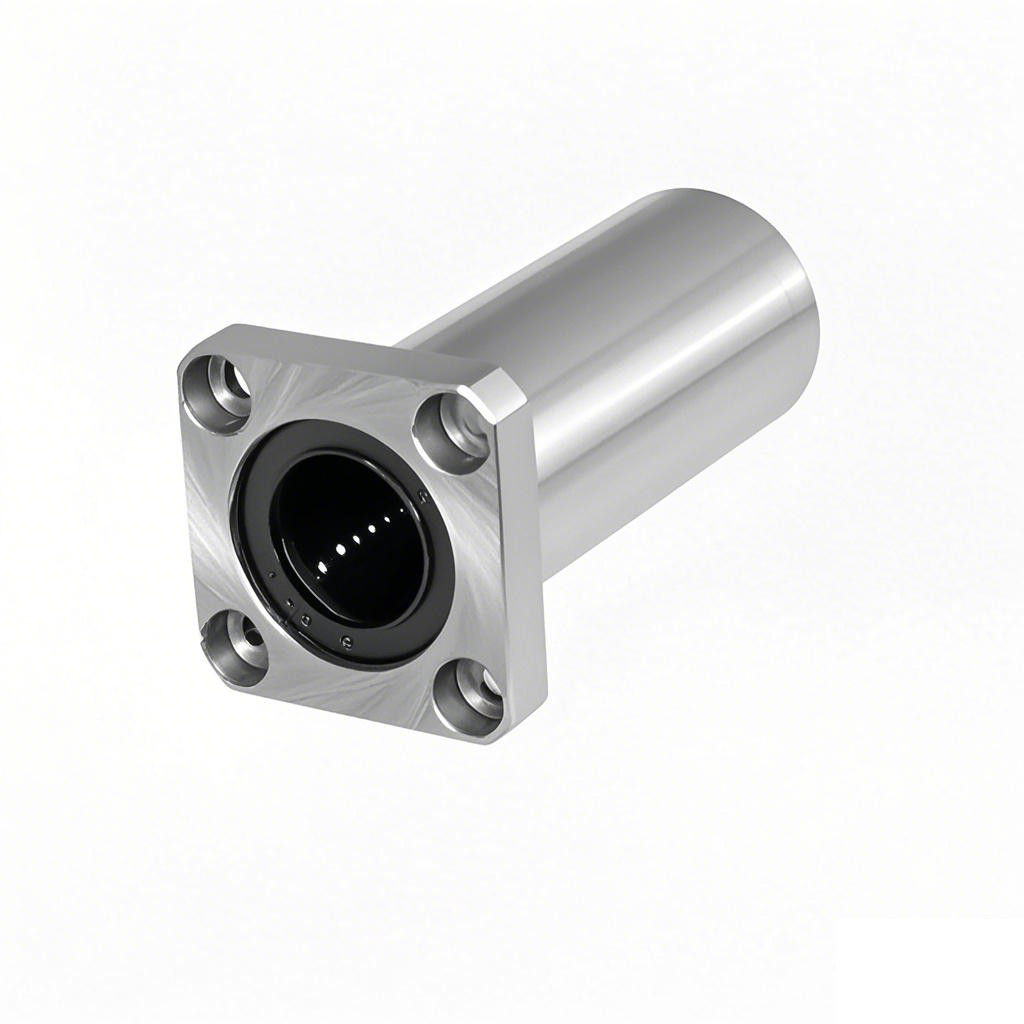

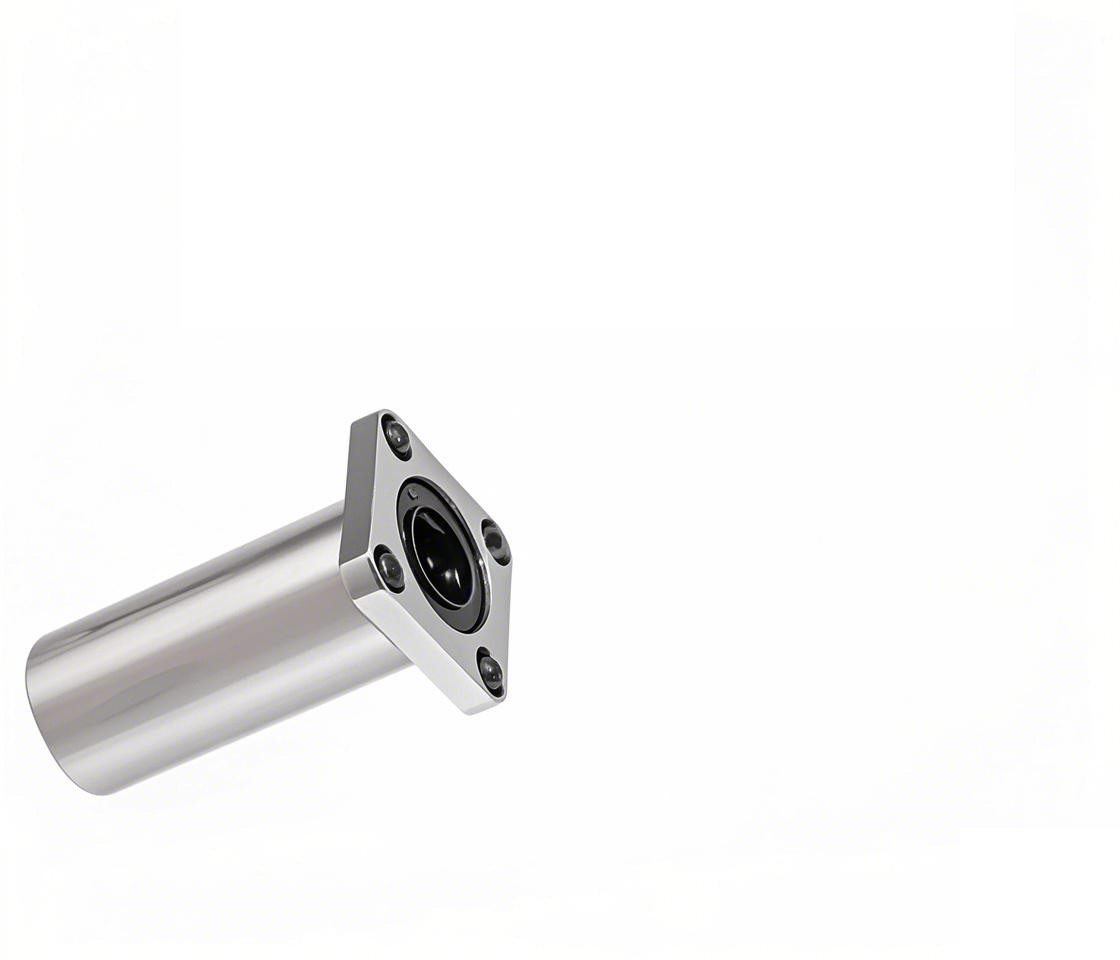

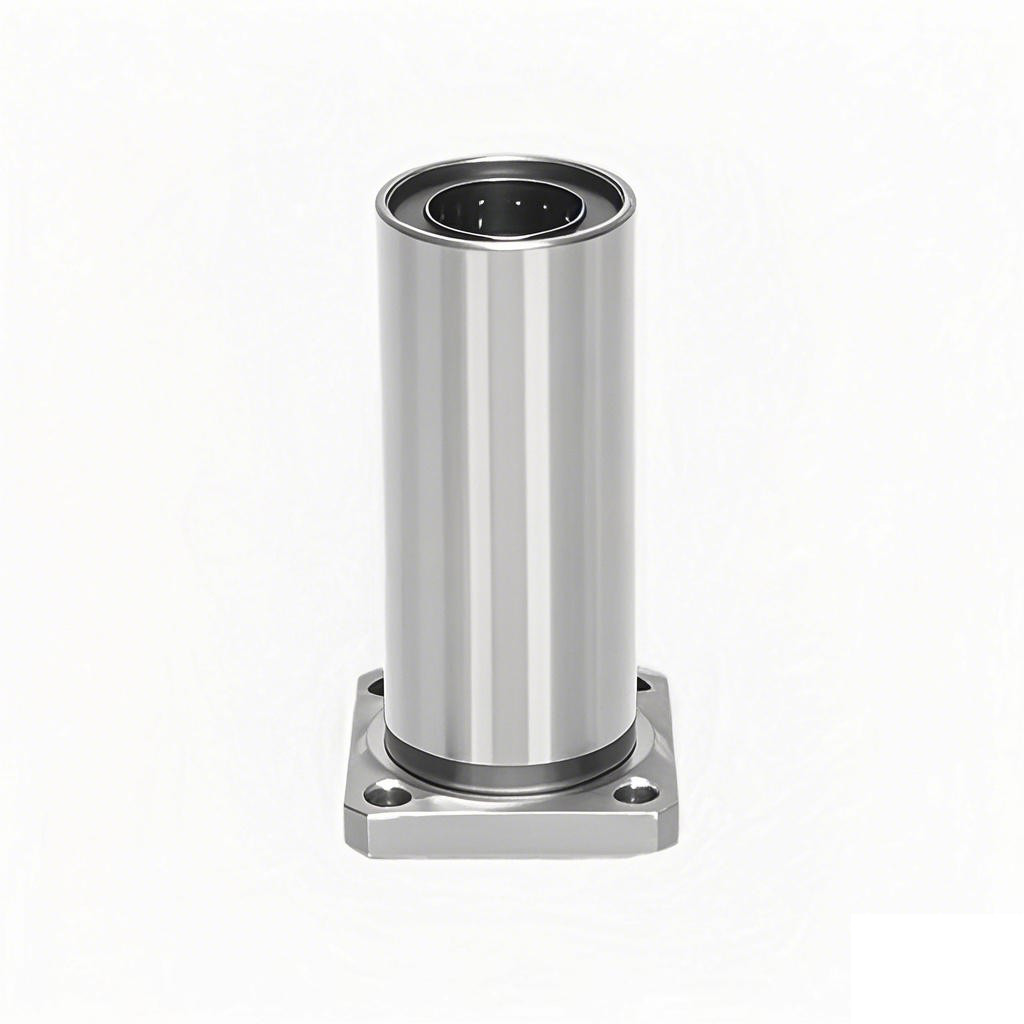

Smooth Linear Flange Bearing High Speed Flange Mounted Linear Ball Bearing Customized

Smooth Linear Flange Bearing High Speed Flange Mounted Linear Ball Bearing Customized

SEXGL  Linear Bearings deliver robust performance in demanding automation environments, trusted by industry leaders like BYD (automated welding systems) and BOE (LCD panel transport lines) across North America, Europe, Southeast Asia, and South America. Engineered to optimize load capacity, alignment stability, and operational longevity, our linear motion solutions are redefining precision across industries.

Characteristics

Flange fixing: comes with mounting holes or flanges to simplify assembly process.

Double-row ball structure: improves load capacity and rigidity (such as heavy-duty handling equipment).

Non-standard customization: supports special sizes, special-shaped holes, and multi-bearing integrated design.

Matters Need Attention

Apply an appropriate amount of grease before installation and replenish it in a timely manner during use. For metal linear bearings, if they are lubricated with grease, remove the anti-corrosion oil first and then add grease (it is recommended to use lithium soap grease with a viscosity mark of n0.2);

Table parameters

Model Number of ball rows Weight (gf) Inner diameter Outer diameter  dr Tolerance D Tolerance LM3LUU 4 3 3 0 7 0 -0.01 -0.013 LM3CLUU 4 3 3 0 7 0 -0.01 -0.013 LM4LUU 4 4 4 0 8 0 -0.01 -0.013 LM4CLUU 4 4 4 0 8 0 -0.01 -0.013 LM5LUU 4 8 5 0 10 0 -0.01 -0.013 LM5CLUU 4 8 5 0 10 0 -0.01 -0.013 LM6LUU 4 16 6 0 12 0 -0.01 -0.013 LM6CLUU 4 16 6 0 12 0 -0.01 -0.013 LM8LUU 4 31 8 0 15 0 -0.01 -0.013 LM8CLUU 4 31 8 0 15 0 -0.01 -0.013 LM10LUU 4 62 10 0 19 0 -0.01 -0.016 LM10CLUU 4 62 10 0 19 0 -0.01 -0.016 LM12LUU 5 80 12 0 21 0 -0.01 -0.016 LM12CLUU 5 80 12 0 21 0 -0.01 -0.016 LM13LUU 5 90 13 0 23 0 -0.01 -0.016 LM13CLUU 5 90 13 0 23 0 -0.01 -0.016 LM16LUU 5 145 16 0 28 0 -0.012 -0.016 LM16CLUU 5 145 16 0 28 0 -0.012 -0.016 LM20LUU 6 180 20 0 32 0 -0.012 -0.019 LM20CLUU 6 180 20 0 32 0 -0.012 -0.019 LM25LUU 6 440 25 0 40 0 -0.012 -0.019 LM25CLUU 6 440 25 0 40 0 -0.012 -0.019 LM30LUU 6 580 30 0 45 0 -0.012 -0.019 LM30CLUU 6 580 30 0 45 0 -0.012 -0.019 LM35LUU 6 795 35 0 52 0 -0.012 -0.022 LM35CLUU 6 795 35 0 52 0 -0.012 -0.022 LM40LUU 6 1170 40 0 60 0 -0.012 -0.022 LM40CLUU 6 1170 40 0 60 0 -0.012 -0.022 LM50LUU 6 2100 50 0 80 0 -0.02 -0.025 LM50CLUU 6 2100 50 0 80 0 -0.02 -0.025 LM60LUU 6 3500 60 0 90 0 -0.02 -0.025 LM60CLUU 6 3500 60 0 90 0 -0.02 -0.025
