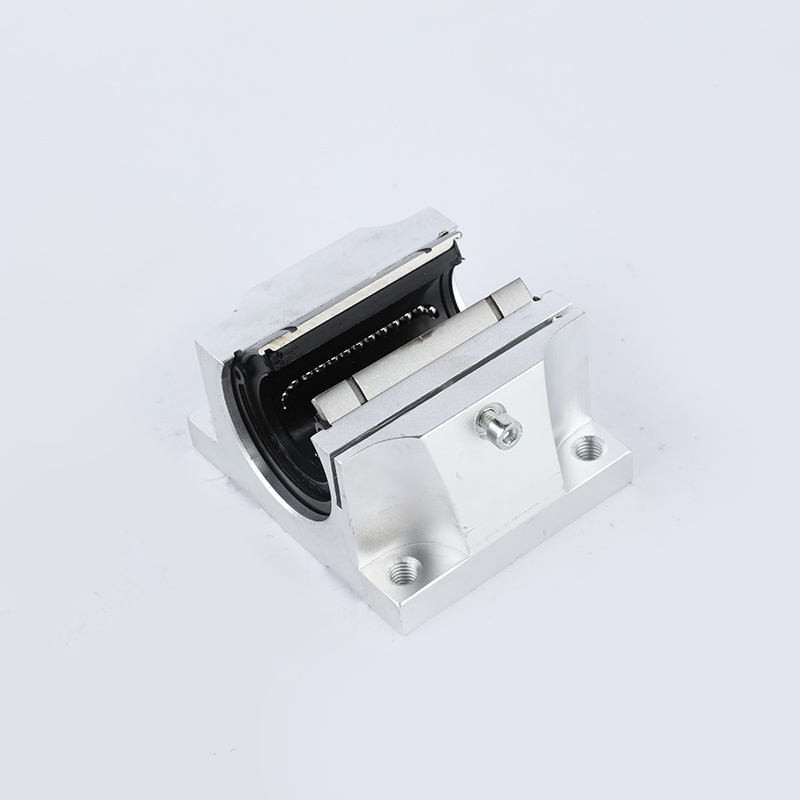

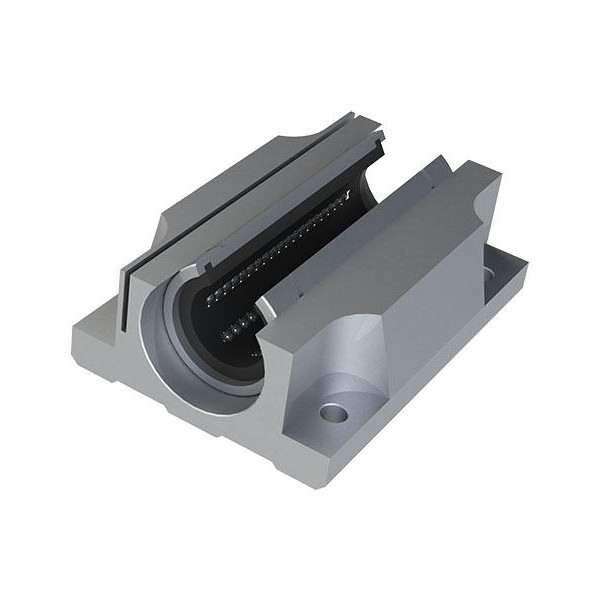

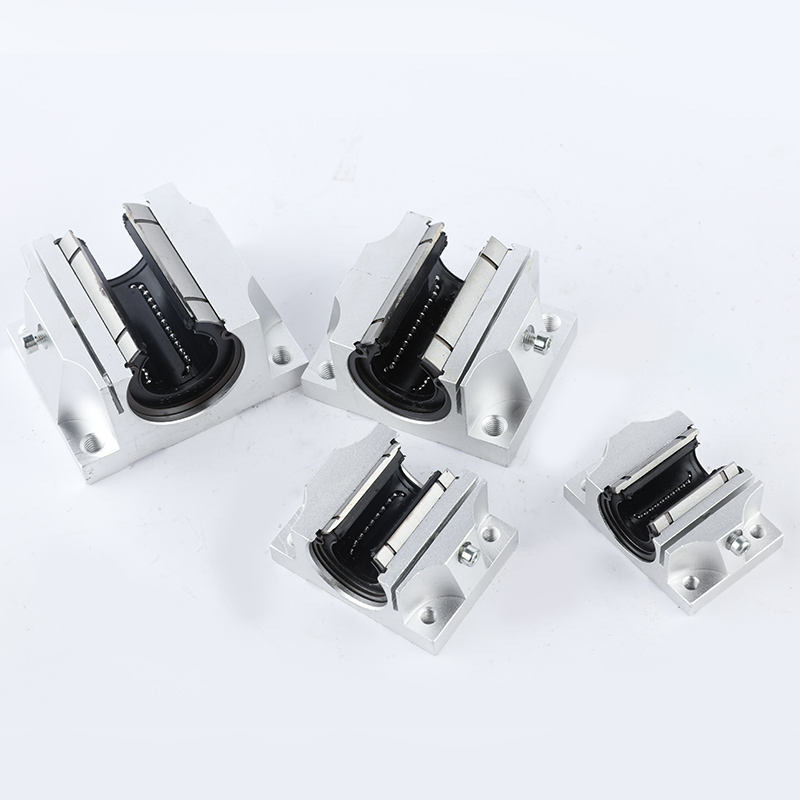

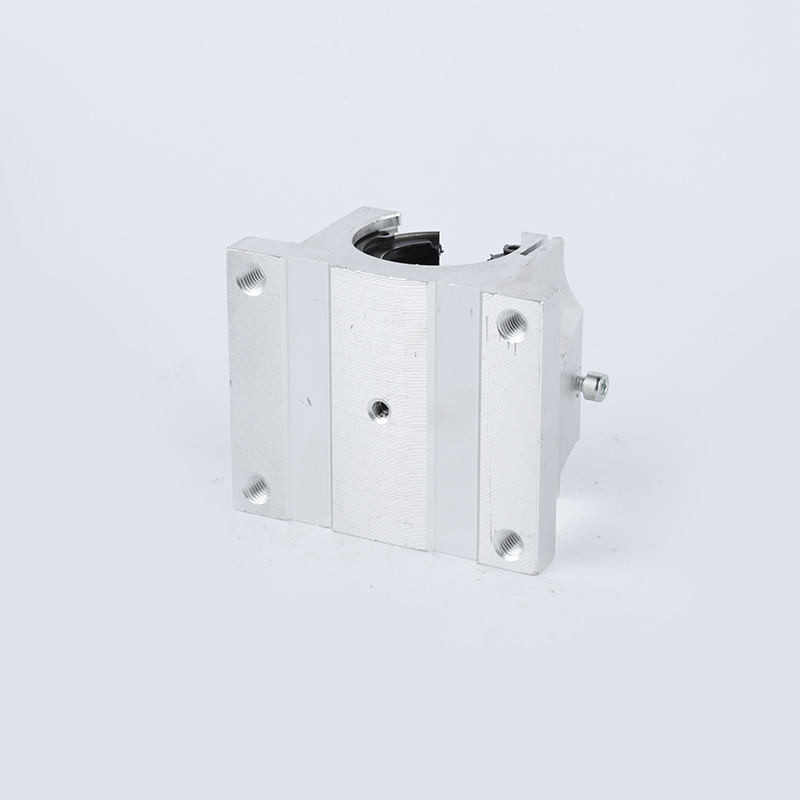

Customized Linear Guide Rail Block Aluminum Slide Unit Lightweight Easy to Assemble

Lightweight   Easy to Assemble Aluminum Slide Unit Compatible with TBR

SEXGL Aluminum Slide Unit deliver unmatched accuracy and durability in rotary automation applications, trusted by global partners like BYD (automotive welding turntables) and BOE (display panel coating systems) across North America, Europe, Southeast Asia, and South Korea.This aluminum slide unit is deeply optimized for TBR rail systems, maintaining high-strength rigidity while significantly reducing rail load and enhancing transmission system response speed and energy efficiency.

Key Advantages:

• Precise TBR Rail Compatibility: A dedicated slot design perfectly matches the TBR rail cross-section, requiring no additional machining for seamless integration.
• Long-Life Maintenance-Free Operation: Features a fully sealed dust-proof lip structure that effectively blocks dust and oil from invading the rail contact surface.
• High Load & Stability: The aluminum alloy body supports high-speed reciprocating motion, meeting the demands of high-frequency transmission in automated warehousing, intelligent sorting lines, and other applications.
• Plug-and-Play Design: Standardized quick-release interfaces align with pre-drilled mounting holes on TBR rails for hassle-free installation.
•

•

• Support Type	Shaft Dimensions	Basic loa    dynamic   CN	d rating    static CoN	W	G	A	Dimen M	sions S1	(mm J	)  K	E	h	Matching linear bearings Model    Type	Slide   bu     Basic loa      Dynamic load	sh d  r Static load	Weight (g)
  TBR 16UU	φ16	392	490	62	26	8	42	M5	50	30	31	18	LM16UU-OP	392	490	0.18
  TBR 20UU	φ20	784	1176	68	31	10	51	M6	54	37	34	21	LM20UU-OP	784	1176	0.30
  TBR 25UU	φ25	1568	2352	82	41	12	65	M8	65	50	41	28	LM25UU-OP	1568	2352	0.60
  TBR 30UU	φ30	1764	2940	91	48	12	75	M8	75	60	45.5	33.5	LM30UU-OP	1764	2940	0.90
  TBR 16LUU	φ16	780	980	62	26	8	85	M5	50	60	31	18	LM16LUU-OP	392	490	0.36
  TBR 20LUU	φ20	1568	2352	68	31	10	96	M6	54	70	34	21	LM20LUU-OP	784	1176	0.60
  TBR 25LUU	φ25	3136	4704	82	41	12	130	M8	65	100	41	28	LM25LUU-OP	1568	2352	1.20
  TBR 30LUU	φ30	3528	5880	91	48	12	140	M8	75	110	45.5	33.5	LM30LUU-OP	1764	2940	1.80
