Home /Products/Support Unit/Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation

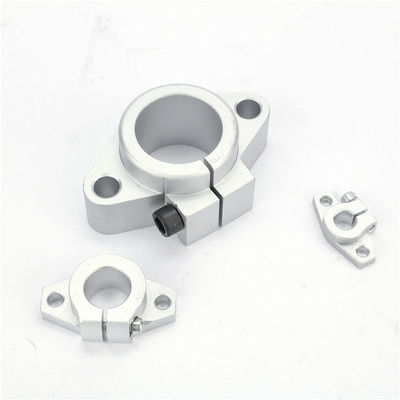

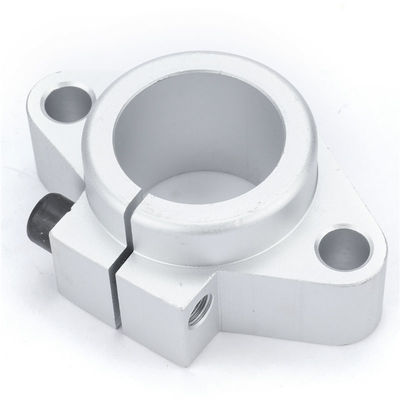

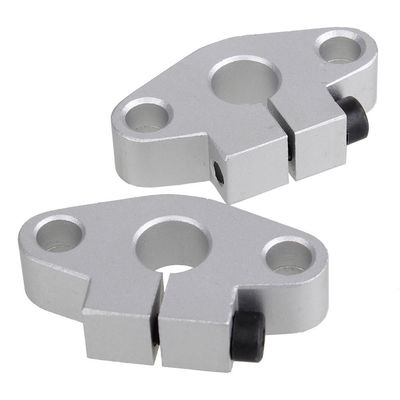

Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation

1
MOQ
$0.5-$21
Price
Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Shaft Support Block
Funcion: Anti-friction,Dustproof
Durability: High
Core Components: Bearing
Material: Stainless Steel
Keyword: Linear Guide Rail Ball Bearing
Highlight:

Stainless Steel Shaft Support Block

,

SHF Linear Shaft Supports

,

Linear Shaft Supports Low Noise
Basic Infomation
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: SHF-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
Product Description

Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation

Company Introduction:SEXGL in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.

Characteristics

Structural Design:Usually adopting a simple structural design, the overall volume is small and the weight is light. It can provide reliable support for the linear shaft within a limited space, making it easy to install in various devices. It is especially suitable for occasions with high space requirements, such as precision instruments, small automated equipment, etc.

Parameter table

Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation 0

Stainless Steel Shaft Support Block SHF Linear Shaft Supports Low Noise And Smooth Operation 1

 Type  Shaft Diameter Main dimensions Designation of clamping bolt Designation of mounting bolt  Weight (g)
W  L  T F G  B  S
SHF 3 3 43 10 5 24 20 32 5.5 M4 M5 13
SHF 4 4 43 10 5 24 20 32 5.5 M4 M5 13
SHF 5 5 43 10 5 24 20 32 5.5 M4 M5 13
SHF 6 6 43 10 5 24 20 32 5.5 M4 M5 13
SHF 8 8 43 10 5 24 20 32 5.5 M4 M5 13
SHF 10 10 43 10 5 24 20 32 5.5 M4 M5 13
SHF 12 12 47 13 7 28 25 36 5.5 M4 M5 20
SHF 13 13 47 13 7 28 25 36 5.5 M4 M5 20
SHF 16 16 50 16 8 31 28 40 5.5 M4 M5 27
SHF 20 20 60 20 8 37 34 48 7 M5 M6 40
SHF 25 25 70 25 10 42 40 56 7 M5 M6 60
SHF 30 30 80 30 12 50 46 64 9 M6 M8 110
SHF 35 35 92 35 14 58 50 72 12 M8 M10 380
SHF 40 40 102 40 16 67 56 80 12 M10 M10 510
SHF 50 50 122 50 19 83 70 96 14 M12 M12 890
SHF 60 60 140 60 23 95 82 112 14 M12 M12 1500

Matters Need Attention
Carefully check whether the support base and its matching parts are complete, and whether there are any defects such as damage, deformation or cracks. If there are any problems, they should be replaced in a timely manner to avoid affecting subsequent use.Install according to the requirements of the installation instructions, using appropriate tools and methods to ensure the installation accuracy of the support seat. For example, the center of the support seat should be kept coaxial with the axis of the linear shaft to avoid eccentricity or inclination. Otherwise, it will increase the resistance during the movement of the linear shaft, and may even cause accelerated wear or jamming of the linear shaft.
