Name: Linear Motion Ball Screw

Material: S55C,SCM420H

Nut Type: Single Nut$ Double Nut

Application: 3D Printer/CNC Machine

Core Component: Engine, Bearing, Motor, Pressure Vessel

Manufacturing Process: Rolled Thread

Length: 10-160mm

Highlight:

10mm Linear Motion Ball Screw

160mm Linear Motion Ball Screw

High Rigidity Double Nut Ball Screw

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: SFK

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

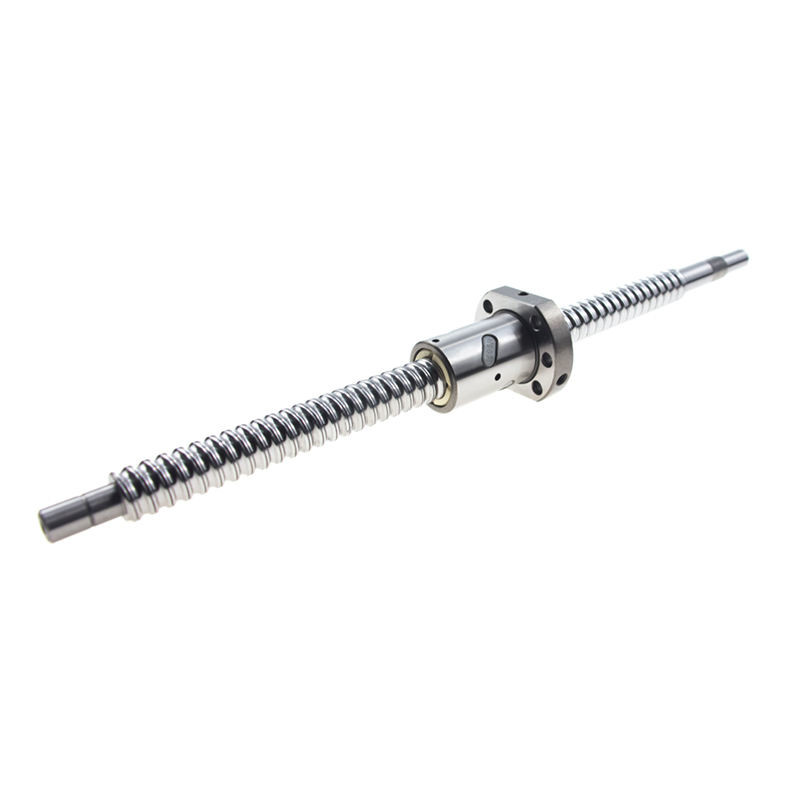

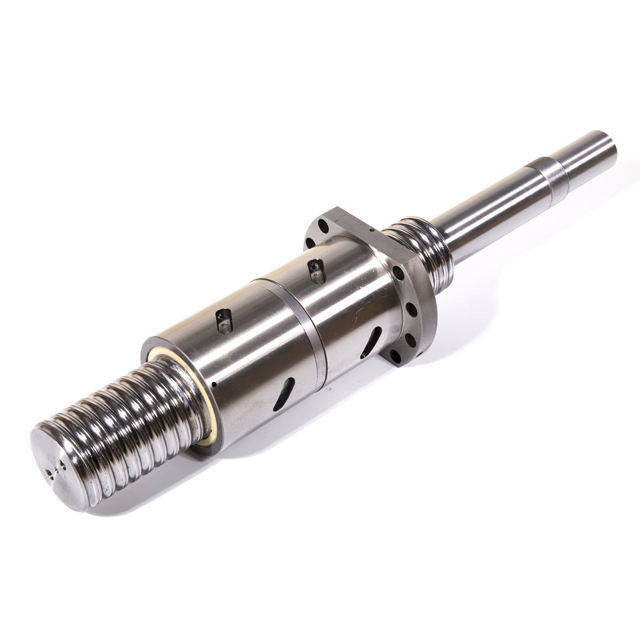

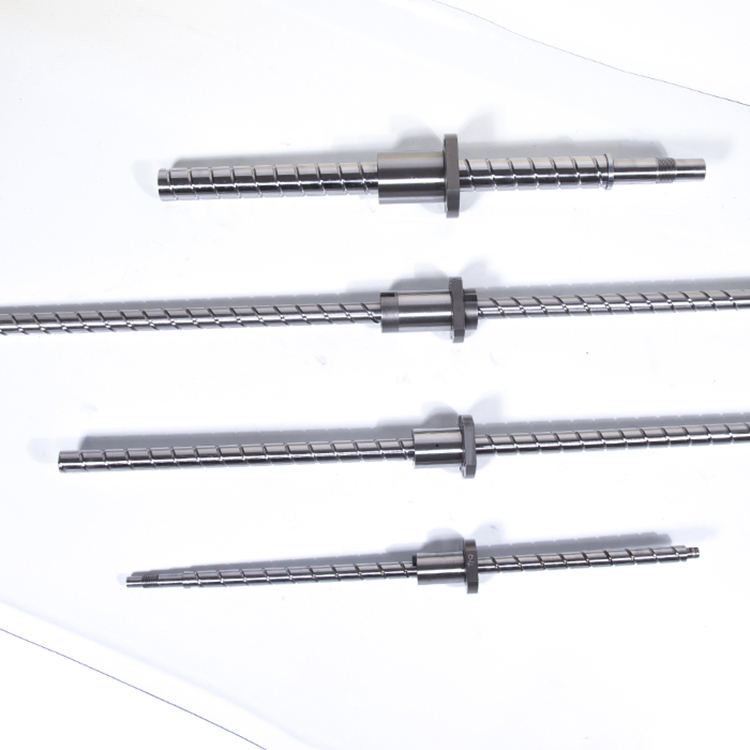

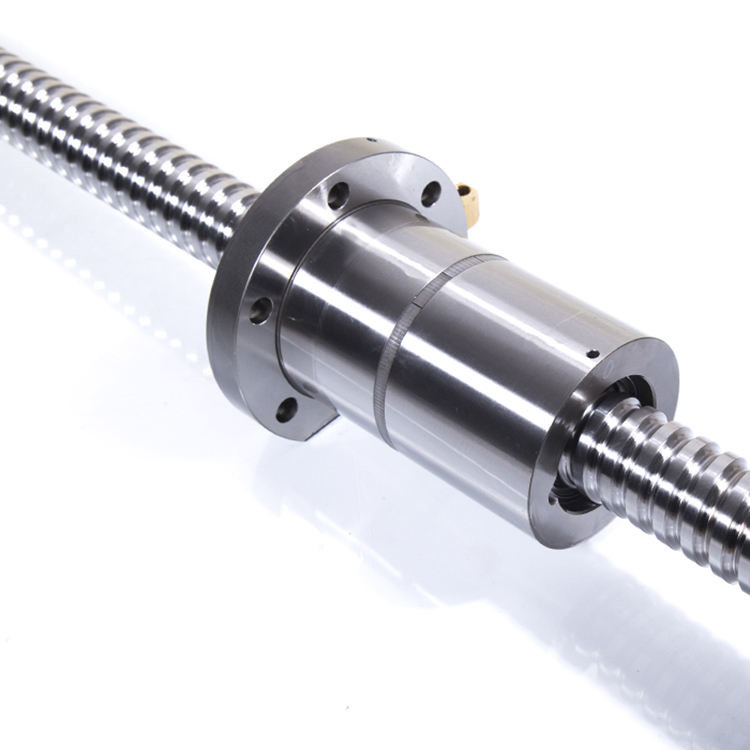

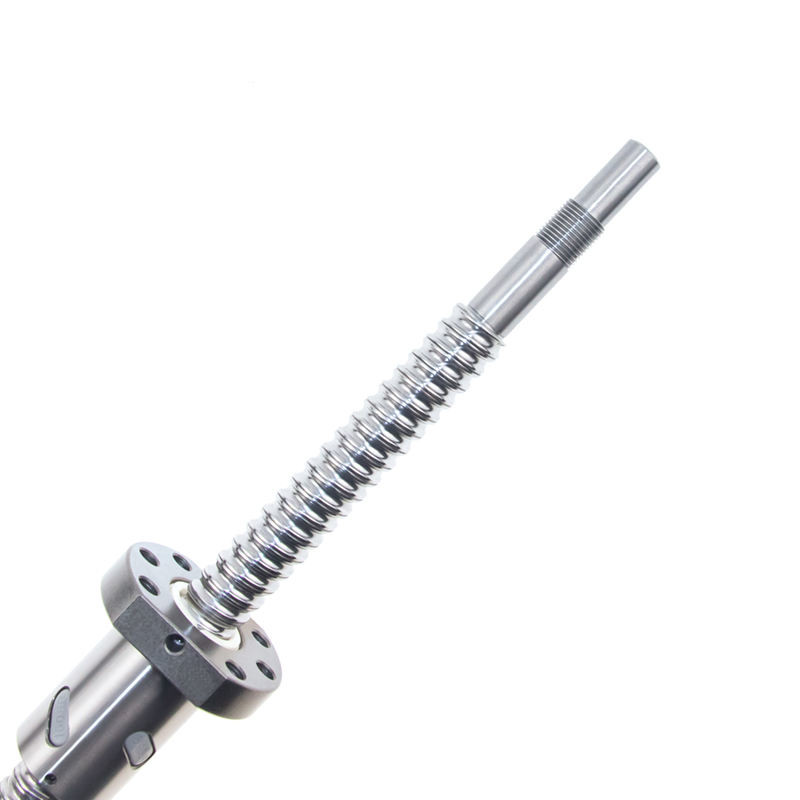

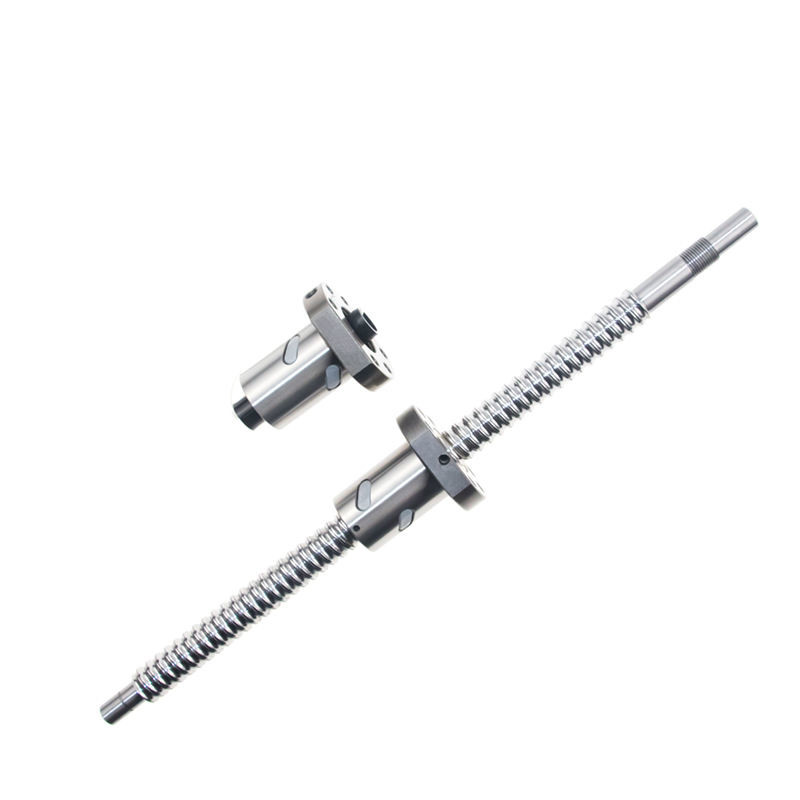

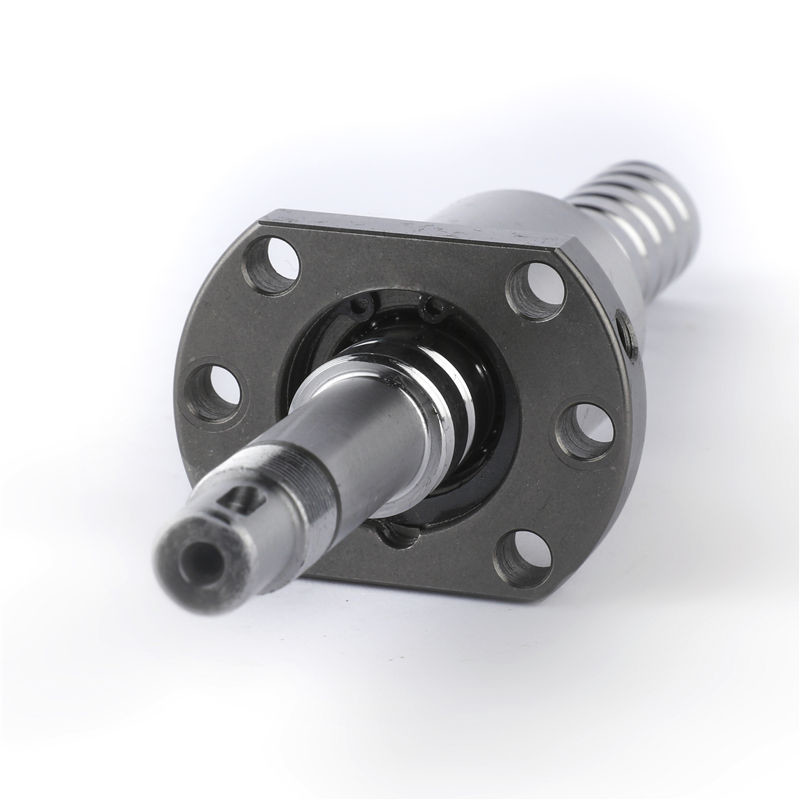

10mm - 160mm Linear Motion Ball Screw High Rigidity Double Nut Ball Screw

Product Description

Specialized High-Efficiency Ball Screws Linear Motion Transmission Solution

SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.CNC ball screws are high-precision linear motion components primarily used in CNC machine tools and other precision mechanical processing equipment. They consist of four main components: a screw shaft, a nut, ball bearings, and return guides. The screw shaft is a cylindrical shaft with helical raceways, while the nut—fitted over the screw shaft—contains corresponding internal helical raceways. Ball bearings roll between the raceways of the screw shaft and nut, forming a rolling friction pair that enables efficient motion transfer.

Characteristics

1.High-Precision Transmission

2.High-Efficiency Transmission

3.High Rigidity and High Load Capacity

4.Long Service Life and Low Maintenance Cost

5.Good Transmission Reversibility

Theory

When the screw shaft is driven to rotate by a power source such as an electric motor, ball bearings roll between the helical raceways of the screw shaft and nut. Due to the point or line contact between the balls and raceways, frictional resistance is minimized, efficiently converting the rotational motion of the screw shaft into linear motion of the nut.

During this process, the balls roll forward along the screw shaft's helical raceway. Upon reaching the end of the nut, they are guided by the return guides into the reverse channel, which directs them back to the starting end of the raceway. The balls then re-enter the raceway to continue rolling, forming a continuous cycle of motion.

Model no.	d	Lead	Bead diameter	(Nut size)											Dynamic Rating Load Ca	Static Rated Load Coa
Model no.	d	Lead	Bead diameter	D	A	B	L	W	H	X	Y	Z	Q	n	Dynamic Rating Load Ca	Static Rated Load Coa
SFKR0401	4	1	0.8	10	20	3	12	15	14	2.9	-	-	-	1×2	64	97
SFKR0601	6	1	0.8	12	24	3.5	15	18	16	3.4	-	-	-	1×3	111	224
SFKR0801	8	1	0.8	14	27	4	16	21	18	3.4	-	-	-	1×4	161	403
SFKR0802		2	1.2	14	27	4	16	21	18	3.4	-	-	-	1×3	222	458
SFKR082.5		2.5	1.2	16	29	4	26	23	20	3.4	-	-	-	1×3	221	457
SFKR1002	10	2	1.2	18	35	5	28	27	22	4.5	-	-	-	1×3	243	569
SFKR1004	10	4	2	26	46	10	34	36	28	4.5	8	4.5	M6	1×3	468	905
SFKR1204	12	2	1.2	20	37	5	28	29	24	4.5	-	-	-	1×4	334	906
SFKR1205		4	2.5	24	40	6	28	32	25	3.5	-	-	-	1×3	454	722
SFKR 1202		5	2.5	22	37	8	39	29	24	4.5	-	-	-	1×3	675	1316
SFKR 1402	14	2	1.2	21	40	6	23	31	26	5.5	-	-	-	1×4	354	1053
SFKR1602	16	2	1.2	25	43	10	40	35	29	5.5		-	M6	1×4	373	1200
SFKR2002	20	2	1.2	50	80	15	55	65	68	6.5	10.5	6	M6	1×6	581	2284
SFKR2502	25	2	1.2	50	80	13	43	65	68	6.5	10.5	6	M6	1×5	540	2381
