Name: PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: SA-E
Price: 5.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Stainless Steel Rod Ends

Material: S55C

Applicable Industries: Mechanical

Performance: Long Life Large Carrying Capacity Corrosion Resistance

Color: Silver, Black

Length: Customized

Nut Type: Single Nut$ Double Nut

Structure: CNC Components

Core Components: Engine, Bearing, Motor, Pressure Vessel

Highlight:

PHSA Stainless Steel Rod Ends

Stainless Steel Rod Ends Corrosion Resistant

Ball Bearing Rod Ends Customized

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: SA-E

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

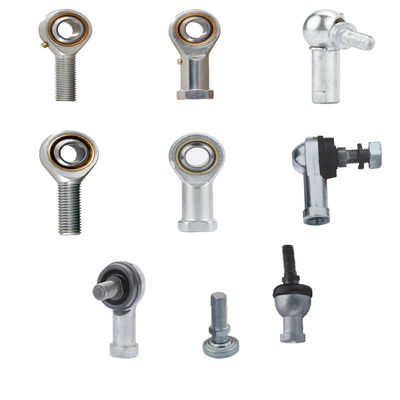

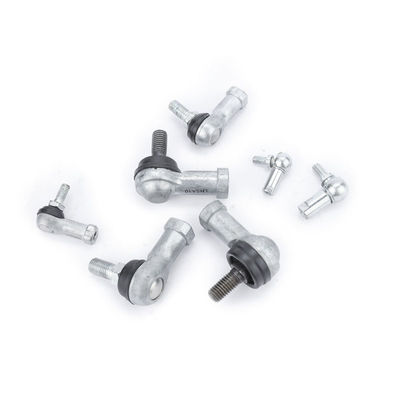

PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized

Product Description

PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized

SEXGL Rod End Bearing:Can bear radial load, axial load or combined load of radial and axial simultaneously

Strong load-bearing capacity: The spherical sliding contact area is large, and most of them have also adopted special process treatment methods, such as surface phosphating, galvanizing, chrome plating, etc., so they have greater load capacity and impact resistance.

High flexibility: allows free rotation and swing in multiple directions, and can adapt to various complex working environments and motion trajectories.

Adapt to harsh environment: It has the characteristics of corrosion resistance and wear resistance. It can work normally even if it is installed misaligned. It can work stably for a long time in humid and corrosive environment.

Company advantages

OEM factory, high quality, precision processing, assembly line assembly, 100% quality control process, sufficient inventory, fast and safe transportation.

sheet

model Type	d	d2	W	B	C1	h	d2	l1	l5	d4	d5	dk	l3	a*	quantity	Weight (kg)
PHSA 3	3	M3×0.5	5.5	6	4.5	21	12	27	-	6	6.5	-	10	-	1.8	0.006
PHSA 4	4	M4×0.7	8	7	5.3	24	14	31	-	7.8	9.5	-	12	-	3.234	0.009
PHSA 5	5	M5×0.8	9	8	6	27	18	36	4	8.5	12	11.1	8	13	3.25	0.016
PHSA 6	6	M6×1	11	9	6.75	30	20	40	5	10	13	12.7	9	13	4.3	0.022
PHSA 8	8	M8×1.25	14	12	9	36	24	48	5	12.5	16	15.875	12	14	7.2	0.047
PHSA 10	10	M10×1.5	17	14	10.5	43	28	57	6.5	15	19	19.05	15	13	10	0.077
PHSA 12	12	M12×1.75	19	16	12	50	32	66	6.5	17.5	22	22.225	18	13	13.4	0.1
PHSA 14	14	M14×2	22	19	13.5	57	36	75	8	20	26	25.4	21	16	17	0.16
PHSA 16	16	M16×2	24	21	15	64	40	84	8	22	28	28.575	24	15	21.6	0.22
PHSA 18	18	M18×1.5	27	23	16.5	71	44	93	10	25	31	31.7	27	15	26	0.32
PHSA 20	20	M20×1.5	30	25	18	77	48	101	10	27.5	35	34.925	30	14	31.5	0.42
PHSA 22	22	M22×1.5	32	28	20	84	54	111	12	30	38	38.1	32	15	38	0.54
PHSA 25	25	M24×2	36	31	22	94	60	124	12	33.5	42	42.85	36	15	47.5	0.72
PHSA 28	28	M27×2	41	35	24	103	66	136	14	37	46	47.6	41	15	55	0.82
PHSA 30	30	M30×2	46	37	25	110	70	145	15	40	50	50.8	45	17	64	1.1

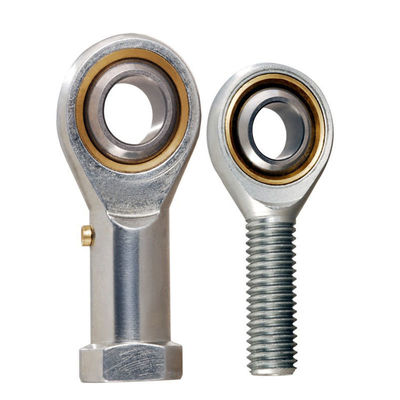

PHSA Stainless Steel Rod Ends Corrosion Resistant Ball Bearing Rod Ends Customized 1
