Name: S55C Material Rod End Bearing Silver Spherical Bearing Rod Ends Corrosion Resistant
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: SA.TIK
Price: 5.50 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Rod End Bearing

Material: S55C

Color: Silver, Black

Length: Customized

Nut Type: Single Nut$ Double Nut

Structure: CNC Components

Core Components: Engine, Bearing, Motor, Pressure Vessel

Highlight:

S55C Material Rod End Bearing

Rod End Bearing Silver

Spherical Bearing Rod Ends Corrosion Resistant

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: SA.TIK

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

S55C Material Rod End Bearing Silver Spherical Bearing Rod Ends Corrosion Resistant

Product Description

S55C Material Rod End Bearing Silver Spherical Bearing Rod Ends Corrosion Resistant

SEXGL Heavy-Duty Rod End Bearings: Precision Angular Motion Solutions for Harsh Industrial Environments

SEXGL rod end bearings deliver robust articulation and load-bearing performance in demanding automation systems, trusted by global partners like BYD (suspension test rigs) and BOE (robotic arm joints) across North America, Europe, Southeast Asia, and South Korea. Engineered for extreme durability and precise angular movement, our bearings excel in applications requiring both rotational freedom and high load capacity.

Company Advantage

OEM factory, High quality, Precision processing, Pipelining assembly, 100% QC process, Plentiful stocks, Fast and Safe shipping.

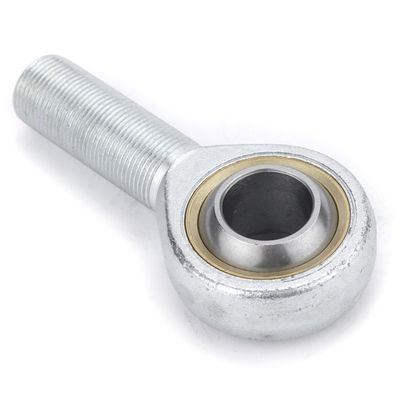

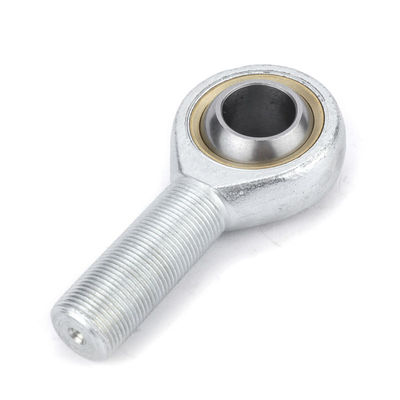

Details for Ball Joint Rod End Bearing

This Ball Joint Rod End Bearing is suitable for transferring motion between widely separated points. This bearing's female / male shank is made of chrome steel for durability and resistance to deformity under heavy loads. The bearing has a zerk type grease fitting for lubrication in place. This bearing has a bronze race and hardened, chrome-plated steel ball for strength and resistance to wear and corrosion.

S55C Material Rod End Bearing Silver Spherical Bearing Rod Ends Corrosion Resistant 0

Rod body with left or right-hand male thread
Sliding contact surface:steel/PTFE
Model Number	Dimensions(mm)											Load ratings (KN)		Weight (Kg)
Model Number	d	B			d2	L7	h	L2	dk	R1s	a	Dynamic Capactity	Static Capactity	Weight (Kg)
SA5 T/K	5 M5×0.8	8	6	19	18		33	42	11.11	0.3	13	5.70	6.00	0.013
SA6 T/K	6 M6×1.0	9	7	21	20		36	46	12.70	0.3	13	7.20	7.65	0.020
SA8 T/K	8 M8×1.25	12	9	25	24		42	54	15.875	0.3	14	11.6	12.9	0.038
SA10 T/K	10 M10×1.5	14	10.5	28	28		48	62	19.05	0.3	13	14.5	18.0	0.055
SA12 T/K	12 M12×1.75	16	12	32	32		54	70	22.225	0.3	13	17.0	24.0	0.085
SA14 T/K	14 M14×2.0	19	13.5	36	38	18	60	78	25.40	0.3	16	24.0	31.0	0.14
SA16 T/K	16 M16×2.0	21	15	37	40	21	66	87	28.575	0.3	15	28.5	39.0	0.21
SA18 T/K	18 M18×1.5	23	16.5	41	46	22	72	94	31.75	0.3	15	42.5	47.5	0.28
SA20 T/K	20 M20×1.5	25	18	45	50	25	78	103	34.925	0.3	14	42.5	57.0	0.38
SA22 T/K	22 M22×1.5	28	20	48	54	27	84	111	38.10	0.3	15	57.0	68.0	0.48
SA25 T/K	25 M24×2.0	31	22	55	60	30	94	124	42.85	0.3	15	68.0	85.0	0.64
SA28 T/K	28 M27×2.0	35	24	62	66	33	103	136	47.60	0.3	15	86.0	107.0	0.80
SA30 T/K	30 M30×2.0	37	25	66	70	35	110	145	50.80	0.3	17	88.0	114.0	1.10
SA35 T/K	35 M36×2.0	43	28	85	81	41	140	180.5	57.10	0.3	16	101.0	206.0	1.64
SA40 T/K	40 M42×2.0	49	33	90	91	46	150	195.5	66.60	0.3	17	124.0	280.0	2.30
SA50 T/K	50 M48×2.0	60	45	105	117	59	185	243.5	82.50	0.3	12	308.0	485.0	4.80

S55C Material Rod End Bearing Silver Spherical Bearing Rod Ends Corrosion Resistant 3
