Features

Specifications

Name: Rod End Bearing

Material: S55C

Color: Silver, Black

Length: Customized

Nut Type: Single Nut$ Double Nut

Structure: CNC Components

Core Components: Engine, Bearing, Motor, Pressure Vessel

Highlight:

High Load Rod End Bearing

Rod End Bearing POS

POS Heavy Duty Rod End

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: POS

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

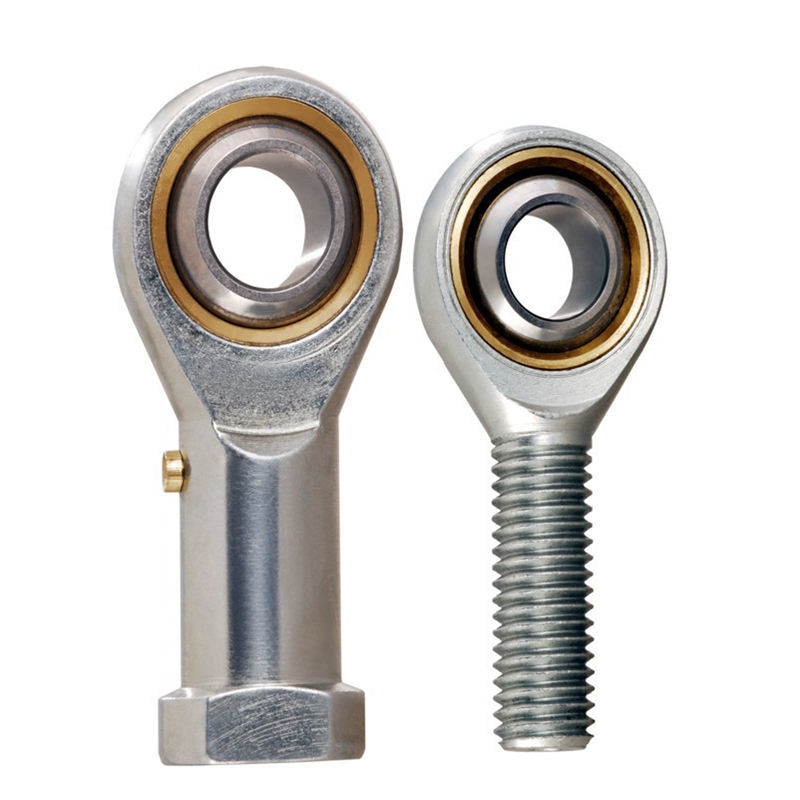

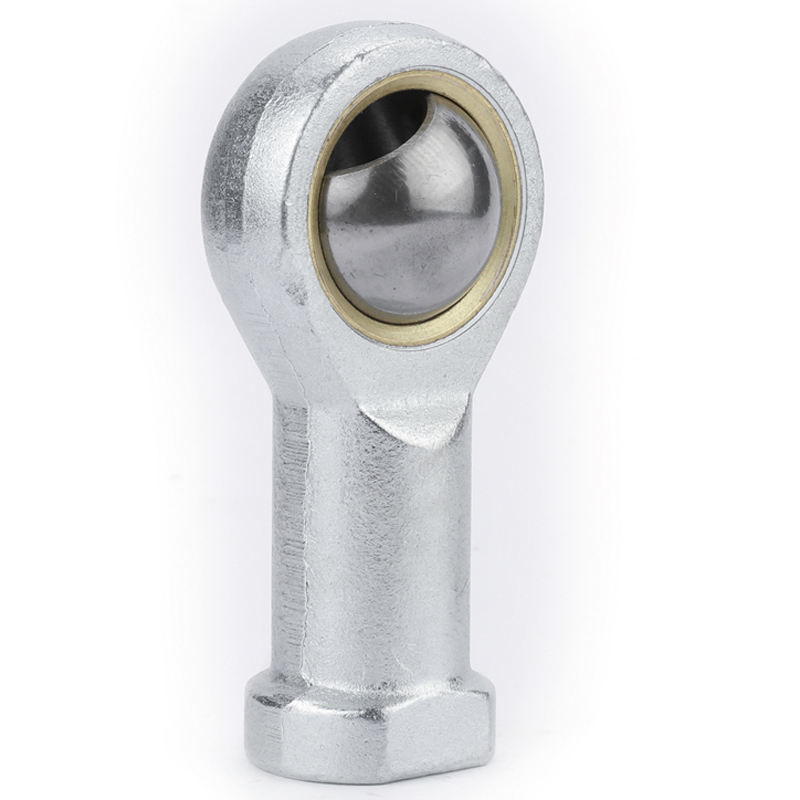

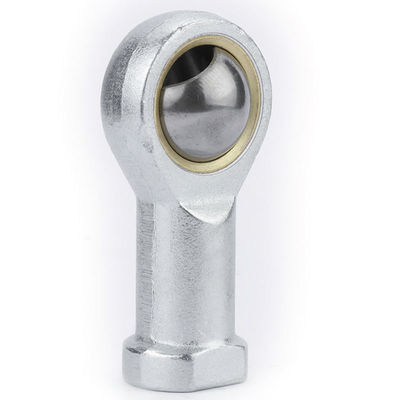

High Load Rod End Bearing POS Heavy Duty Rod End Interchangeable

Product Description

POS High Load Angular Flexibility Interchangeable Rod End Bearings Heavy Duty

SEXGL Heavy-Duty Rod End Bearings: High-Load Angular Flexibility Precision Interchangeable for Global Machinery

SEXGL rod end bearings deliver robust articulation solutions for heavy-load applications, trusted by BYD (suspension systems) and BOE (robotic arms) across North American, European, Southeast Asian, and South American industrial operations. Engineered for extreme durability and smooth angular compensation, our bearings ensure reliable performance in construction, automotive, and automation systems.

High Load Rod End Bearing POS Heavy Duty Rod End Interchangeable 0

Model Number	Dimensions(mm)													Weight (Kg) y
	Dimensions(mm)
	d d3	B	C1	L1	d2	h	L2	dk	Ris	d1	a	Dynamic Capactity	Static Capactit
POS5	5 M5×0.6	8	6	20	16	33	41	11.11	0.3	7.70	13	3.25	5.70	0.013
POS6	6 M6×1.0	9	6.75	22	18	36	45	12.70	0.3	8.96	13	4.30	7.20	0.020
POS8	8 M8×1.25	12	9	25	22	42	53	15.875	0.3	10.4	14	7.20	11.6	0.030
POS10	10 M10×1.5	14	10.5	29	26	48	61	19.05	0.3	12.9	13	10.0	14.5	0.055
POS12	12 M12×1.75	16	12	33	30	54	69	22.225	0.3	15.4	13	13.4	17.0	0.085
POS14	14 M14×2.0	19	13.5	36	34	60	77	25.40	0.3	16.9	16	17.0	24.0	0.14
POS16	16 M16×2.0	21	15	40	38	66	85	28.575	0.3	19.4	15	21.6	28.5	0.21
POS18	18 M18×1.5	23	16.5	44	42	72	94	31.75	0.3	21.9	15	26.0	42.5	0.28
POS20	20 M20×1.5	25	18	47	46	78	101	34.925	0.3	24.4	15	31.5	52.5	0.38
POS22	22 M22×1.5	28	20	51	50	84	111	38.10	0.3	25.8	15	38.0	57.0	0.48
POS25	25 M24×2.0	31	22	57	60	94	124	42.85	0.3	29.6	15	47.5	68.0	0.64
POS28	28 M28×2.0	35	24	62	66	103	136	47.60	0.3	32.3	15	58.0	75.5	0.96
POS30	30 M30×2.0	37	25	66	70	110	145	50.80	0.3	34.8	17	64.0	88.0	1.10
