Name: High Torque Shaft Coupling Cross Slider Coupling Flexible For Multi Industry
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: JH/JH-C
Price: 14.90 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: High Torque Shaft Coupling

Material: Aluminum

Applicable Industries: CNC Machining Parts

Structure: Universal

Flexible Or Rigid: Flexible

Standard Or Nonstandard: Standard

Customized Support: OEM, ODM

Highlight:

High Torque Shaft Coupling

Cross Slider Coupling

Slider Coupling Flexible

Basic Infomation

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: JH/JH-C

Document: 1_1042820798_171_85_3_10018...90.pdf

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Gallery

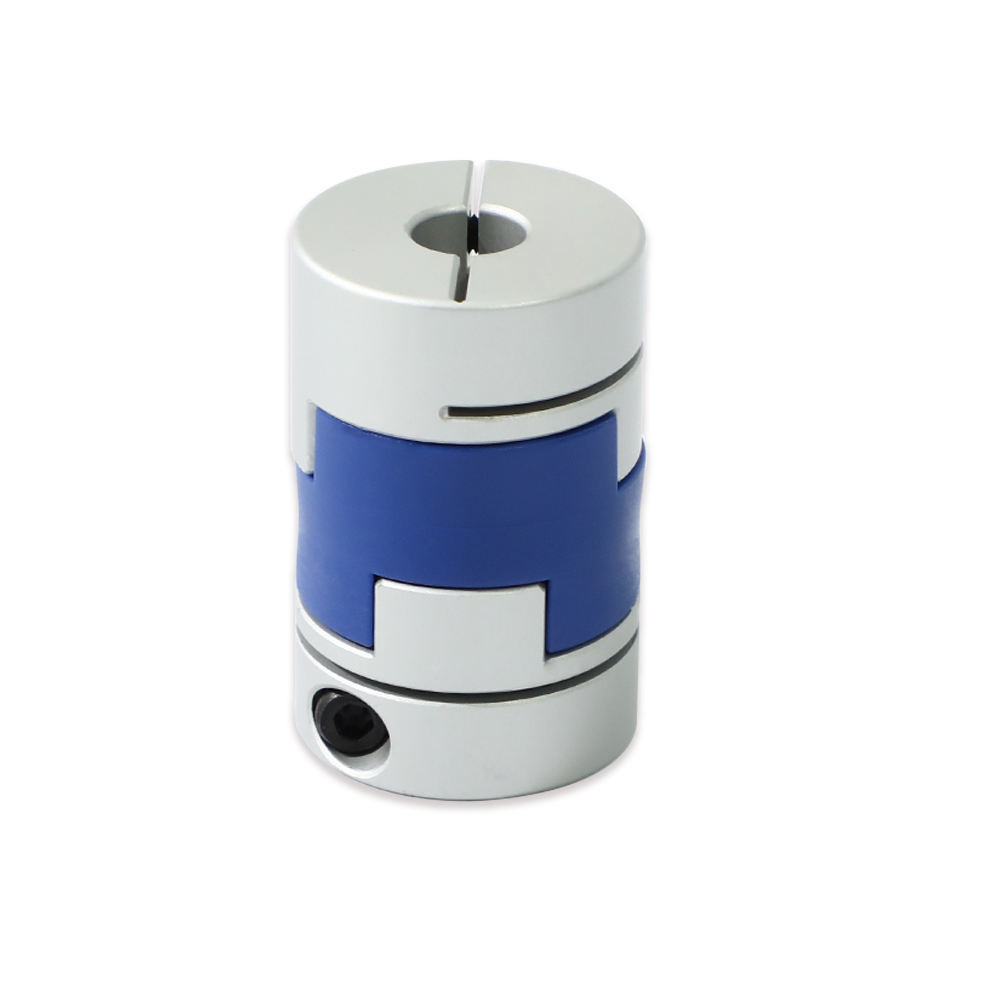

High Torque Shaft Coupling Cross Slider Coupling Flexible For Multi Industry

Product Description

High Torque Precision Alignment Cross Slider Couplings Multi Industry

SEXGL couplings deliver unmatched performance in power transmission systems, trusted by BYD (EV drivetrains) and BOE (robotic arms) across North America, Europe, Southeast Asia, and South America. Engineered for seamless integration, our solutions combine precision engineering with agile logistics.

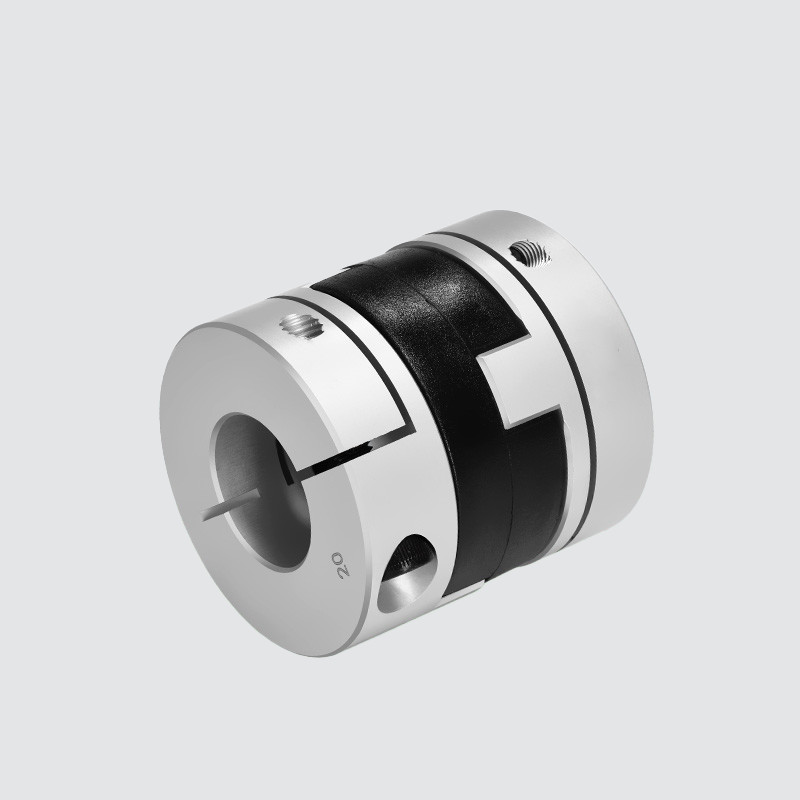

High Torque Shaft Coupling Cross Slider Coupling Flexible For Multi Industry 0

High Torque Shaft Coupling Cross Slider Coupling Flexible For Multi Industry 1

Model Specifications	Aperture						D	L	L1/L2		F	G		M		(N.M)
	d1			d2
	Min	Max		Min	Max
JH16	3	6.35		3	6.35		16	18	7		3.5	M3				0.7
JH16C	4	6		4	6			29	12.5		3.5			M2.5		1.5
JH20	4	8		4	8		20	23	9		4.5	M4				1.7
JH20C	4	8		4	8			33	14		3.5	-		M3		1.5
JH25	5	12		5	12		25	28	11		5.5	M5		一		4
JH25C	5	12		5	12			39	16.5		3.5			M3		1.5
JH32	5	16		5	16		32	33	13		6.5	M6		-		7
JH32C	5	16		5	16			45	19		4.5			M4		2.5
JH40	8	20		8	20		40	35	14		7	M6				7
JH40C	8	20		8	20			50	23		7			M5		4
JH50	12	24		12	24		50	38	17		8.5	M8		-		15
JH50C	12	24		12	24			58	27		8			M6		8
JH63	14	30		14	30		63	47	21		10.5	M10		一		8
JH63C	14	30		14	30			71	33		10			M8		16

Model Specifications	Rated torque (N.m)		Max torque (TK max)			Allowable speed (min )		Torsional stiffness (N.m/rad)		Moment of inertia (kg.m2)			lateral (mm)		Angular (°)		Net weight (g)
JH16	0.7		1.4			12000		31		0.32			1.0		3.0		7
JH16C										0.58							12
JH20	1.2		2.4			10000		60		1.0			1.5		3.0		14
JH20C										1.5							19
JH25	2		4			8000		140		3.0			2.0		3.0		27
JH25C										4.4							36
JH32	4.5		9			7000		280		9.5			2.5		3.0		50
JH32C										14							69
JH40	9		18			4800		540		23			3.0		3.0		80
JH40C										41							130
JH50	18		36			3000		820		67			3.5		3.0		150
JH50C										120							230
JH63	36		72			2800		1900		220			4.0		3.0		300
JH63C										370							450

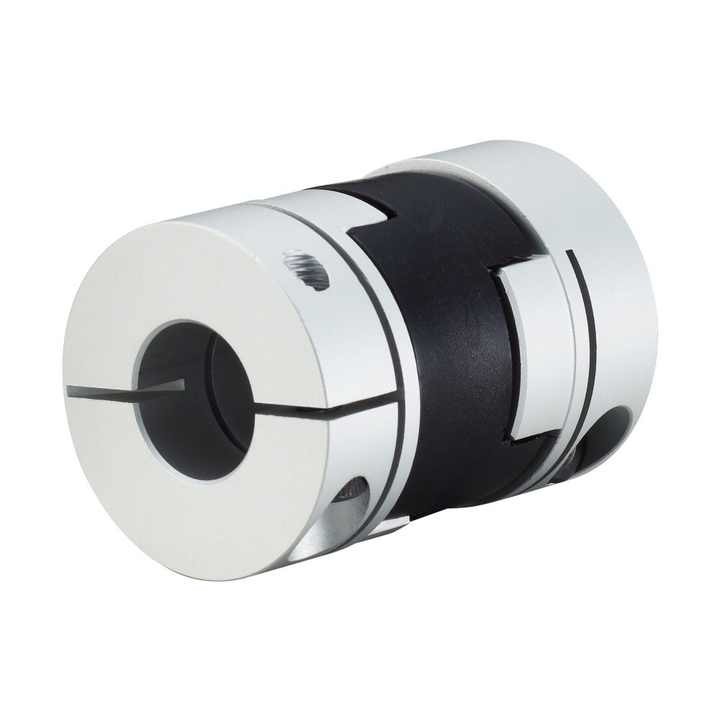

High Torque Shaft Coupling Cross Slider Coupling Flexible For Multi Industry 2
